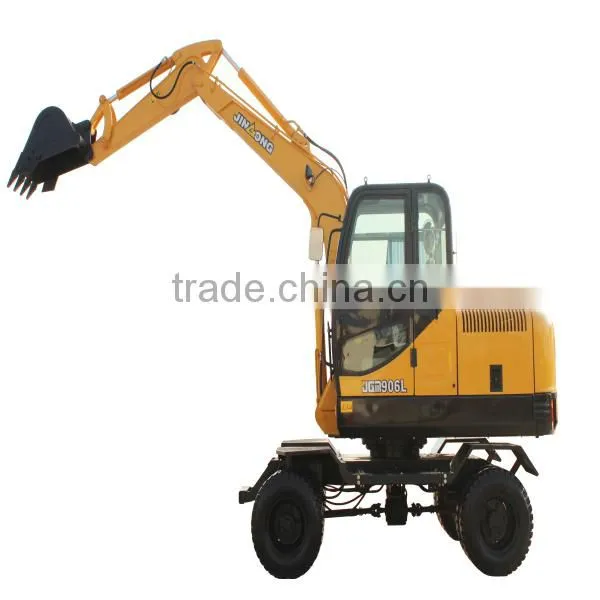

customized loader tires 23.5-25 23.5r25 23.5x25 JGM906 underground loader wheeled excavators
Specification:
Diesel engine | |
Model | Yanmar 4TNV94L-SFN |
Type | 4 cylinders,4 strokes, direct injection, water-cooling |
Displacement | 3.05cc |
Rated power | 39.5kw at 2200rpm |
Max. Torque | 214nm at 220rpm |
Swing speed | 9.8r/min |
|
|
Dimensions | |
Overall length(during transport) | 6200mm |
Width of turntable | 2000mm |
Height of driver’s cabin top | 2610mm |
Height of boom top | 2000mm |
Track width | 2000mm |
Wheel base | 2000mm |
Track length | 2560mm |
Track gauge | 1600mm |
Track shoe width (standard) | 400mm |
|
|
Operating specification | |
Operation weight | 6100kg |
Standard bucket capacity | 0.2m3 |
Max. excavating height | 5300mm |
Max. dumping height | 3690mm |
Max. excavating depth | 3770mm |
Max. excavating radius | 6425mm |
Excavating radius at excavator standing plane | 6275mm |
Min. swing radius | 2815mm |
Excavating height at min. swing radius | 3205mm |
Max. excavating force of bucket | 42.5kn |
Max. excavating force of bucket rod | 28.5kn |
Oil and cooling | |
Fuel | 125L |
Coolant | 32L |
Engine oil | 10.5L |
Travel reducer oil | 2x1.5L |
Swing reducer oil | 6L |
Hydraulic oil | 125L |
