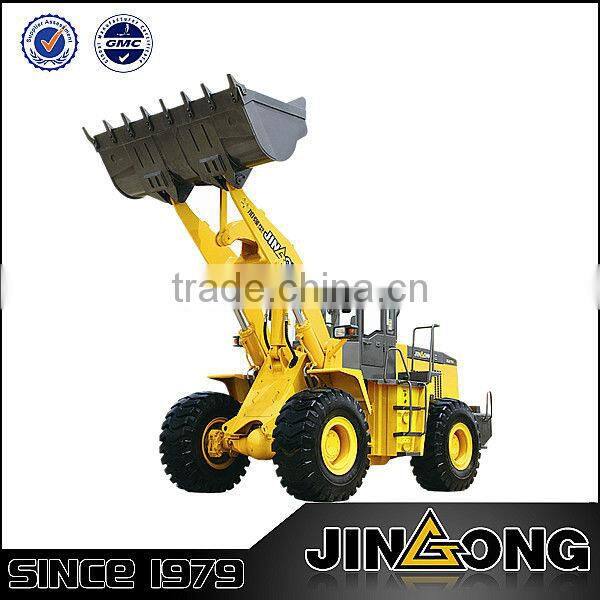

loader machine hot sell 3 cub meter capacity powerful middle wheel loader 5 ton Wheel Loader (ZL50) JGM758-II
1.Adopts single rocker arm ,long wheelbase structure,high stength equipment and frame,which provide large breakout force,tractive force,goodstability,and short equipment operation cycle time,featuring excellent overall performance and being suitable for heavy load in mines.
2.Front and rear frame link joints are in centralized arrangement,and the wheel tracks of the front rear wheel may coincide during turning ,which improve passage while prolongs the service of tyre.
3.Key link points of the equipment adopt anti-dust structure that prolongs the service life of the bearing pins.
4.Water tank with enlarged heated radiating area provides better thermal equilibrium for the diesel system,being applicable for continuous operation under extreme working conditions.
Optional equipment:
1. Diesel engine:
Cummins 6CTA8.3 diesel engine, 160kw/2200rpm, +1600USD (based on C6121 engine)
2. Loose material bucket, rock bucket, side-dump bucket, log fork and other various implements
3.Optimized and efficient working devices with the automatic leveling and limit lifting function
4. Electronic weighing
5. BEKA Concentrated lubrication, +2500US$
6.Grammer seat +350USD
7.Cool & warm air conditioning +735USD
The main parameters(JGM75) | |
Operating Weight |
17300kg |
Standard bucket capacity |
2.3-3.6m3 |
Rated Load |
5000kg |
MAX-Breakout Force |
150KN |
MAX Traction |
170KN |
MAX-Climbing Angle |
30° |
MAX-Dumping Height(high dump boom) |
3100mm |
Dumping Reach |
1220mm |
Overall dimension(L×W×H) |
7782×2990×3410mm |
Engine |
shangcai C6121 |
Model |
C6121ZG50(C0106) |
Type |
4 |
Qty of Cylinders-Bore/Stroke |
6-121×152mm |
MAX-Torque |
843Nm |
Rated Power |
162KW(220HP) |
Rated Speed |
2200r/min |
Transmission System | |
Torque Converter |
WG180 single phase 3 element kits |

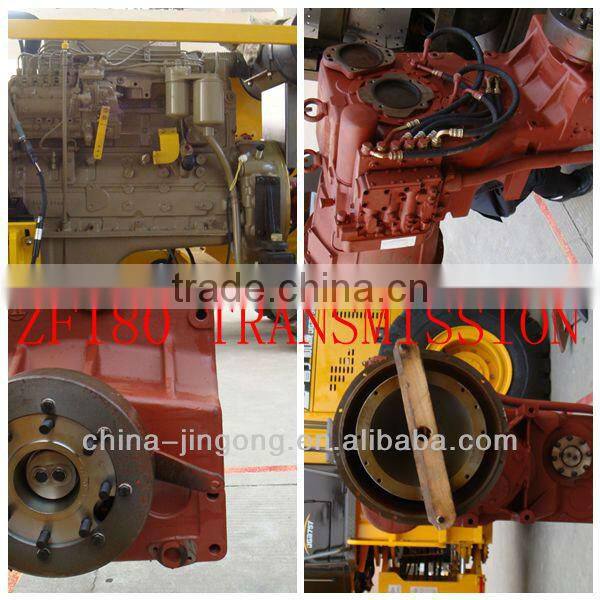

Transmission |
Liuzhou ZF electric controlled transmission |
Gear Shift |
electric controlled gear shift, 4 Forward gears, 3 Reverse gears |
Travel Speed |
Forward Ⅰ………0-7km/h |

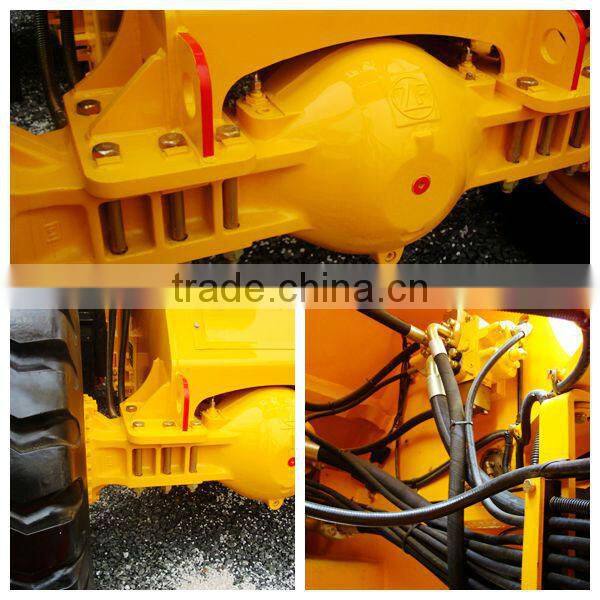

Driving Axle |
axle speed ratio 23.5, wheel speed reduction ratio 6.35 |
Front Driving Axle |
Metrior driving axle |
Rear Driving Axle |
Metrior driving axle |
Tyre |
23.5-25 |
Steering Angle |
0.27-0.32MPa |
Steering System | |
Type |
full hydraulic coaxial flow amplification steering system |
Steering Angle |
Each side ±35° |
Min-Turning Radius |
Outside of bucket: 7050mm |
Outside of rear wheel: 6550mm | |
Hydraulic System | |
System Working Pressure |
17.0MPa |
Boom Lifting Time |
≤6.5s |
Total |
≤12s |
Brake System | |
Travel Brake |
MICO hydraulic brake system |
Parking Brake |
Drum type parking brake |
Fuel Capacity | |
Fuel Tank |
230L |
Hydraulic Tank |
270L |
