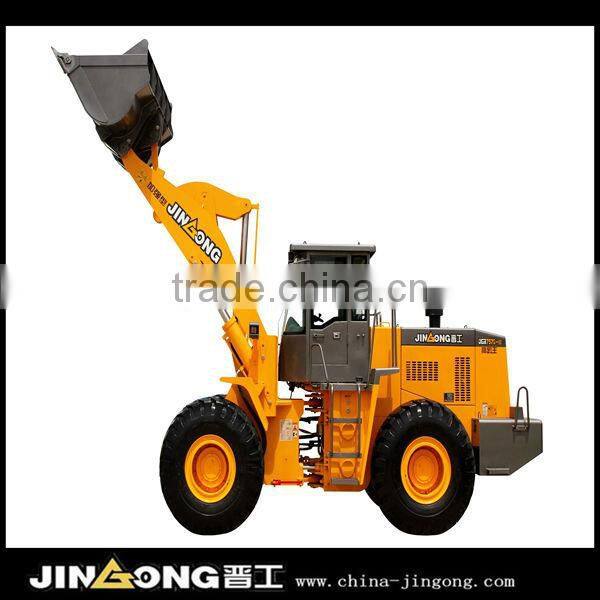

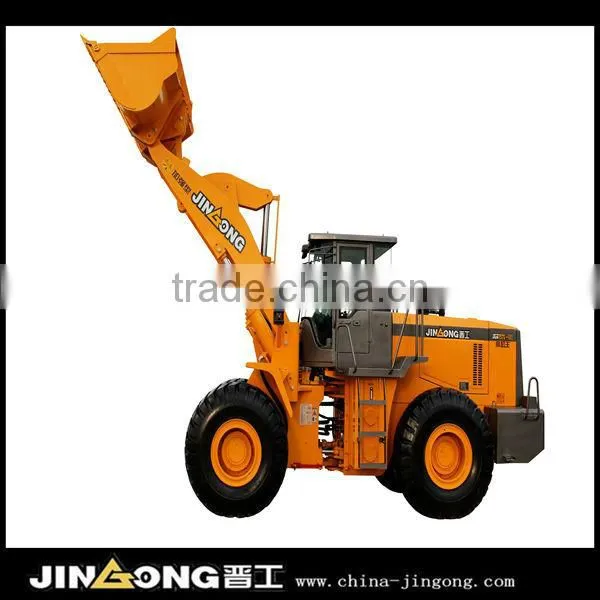

JGM757-II WHEEL LOADER of 5t Loader Equip Transmission

US$ 38,000 - 75,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

JGM

Model Number:

ZL50G

Fujian Jingong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name JGM

Model Number ZL50G

Place of Origin Fujian, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7782*2990*3410mm

Rated Load 5 TON

JGM757 (ZL50G) WHEEL LOADER:

Bucket Capacity 3m³

Rated Load 5000kg

Rated Power 160kw

Operating Weight 17300kg

The leading global manufacturer of Wheel loaders.

Annual sales quantity of wheel loader over 40,000 units.

Cummins Engines and ZF Transmission & Axles

Top brand quality, reliable and save 20% plus.

Pilot Control System, Automatic Leveling

Complete line of applications and accessories.

Easy maintenance & Outstanding After-sales service.

Welcome contact us fore more details

Rated Load	5000kg
MAX-Breakout Force	150KN
MAX Traction	170KN
MAX-Climbing Angle	30°
MAX-Dumping Height(high dump boom)	3100mm 3500mm
Dumping Reach	1220mm
Overall dimension(L×W×H)	7782×2990×3410mm
Engine	Weichai Style
Model	WD10G220E11
Type	4-Stroke,inline, water cooling, turbo charged direct-injection diesel engine,
Qty of Cylinders-Bore/Stroke	6-126×130mm
MAX-Torque	843Nm
Rated Power	162KW(220HP)
Rated Speed	2200r/min
Transmission System
Torque Converter	Single-phase-4 element twin-turbine hydraulic torque converter
Transmission	Planetary hydraulic gear shift
Gear Shift	2 Forwards, 1 Reverse
Travel Speed	Forward I………0-11.5km/h Forward II………0-36km/h Reverse………0-16km/h
Tyre	23.5-25
Steering Angle	0.27-0.32MPa
Steering System
Type	full hydraulic coaxial flow amplification steering system
Steering Angle	Each side ±35°
Min-Turning Radius	Outside of bucket: 7050mm
Min-Turning Radius	Outside of rear wheel: 6550mm
Hydraulic System
System Working Pressure	16.0MPa
Boom Lifting Time	≤6.5s
Total	≤12s
Brake System
Travel Brake	air-over-oil caliper-disc 4 wheel drive
Parking Brake	pneumatic control caliper disc brake
Fuel Capacity
Fuel Tank	230L
Hydraulic Tank	270L
