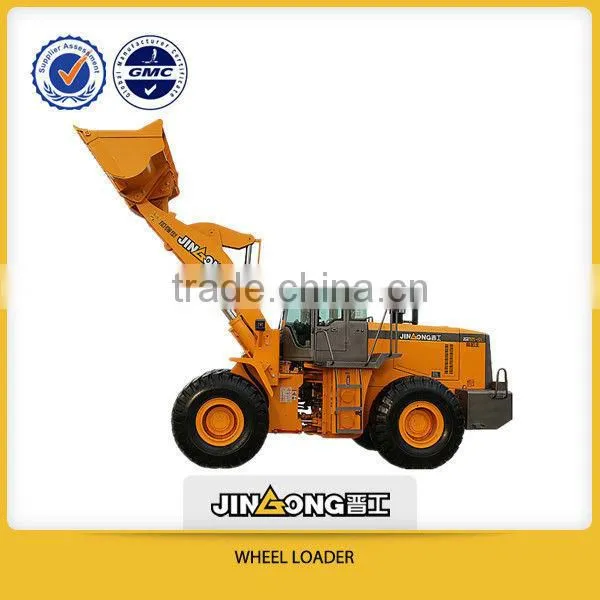

5t front end loader,17.3t 3m3 bucket Wheel Loader (JGM757K)with Cummins engine for sale
1.full-hydraulic
2.luxurious appearance
3.Side-dumping 4050mm
4.Weichai engine 162kw/h.
5.3.0m3 bucket
Superior Performances
1. Low fuel-consuming, high-quality Turbo Charge Engine has good power performance and big torque reserve.
2. Bigger driving axle(Q axles), reinforced rear frame, increase loaded, it runs more smoothly.
3. With full-hydraulic steering system, convenient operation and enables high operating efficiency;
4. With luxurious appearance, humanized interiors, to improve operator comfort.
5. JGM757-III with luxurious single-rocker, with pilot control system, bigger bucket capacity (reach 3.0m3), the wheel base reaches 3200mm, the machine with some patents such as electronic device of automatic bucket leveling and limited lifting position.
Rated Load |
5000kg |
MAX-Breakout Force |
150KN |
MAX Traction |
170KN |
MAX-Climbing Angle |
30° |
MAX-Dumping Height(high dump boom) |
3100mm |
Dumping Reach |
1220mm |
Overall dimension(L×W×H) |
7782×2990×3410mm |
Engine |
Weichai Style |
Model |
WD10G220E11 |
Type |
4-Stroke,inline, water cooling, turbo charged direct-injection diesel engine, |
Qty of Cylinders-Bore/Stroke |
6-126×130mm |
MAX-Torque |
843Nm |
Rated Power |
162KW(220HP) |
Rated Speed |
2200r/min |
Transmission System | |
Torque Converter |
Single-phase-4 element twin-turbine hydraulic torque converter |
Transmission |
Planetary hydraulic gear shift |
Gear Shift |
2 Forwards, 1 Reverse |
Travel Speed |
Forward I………0-11.5km/h |
Tyre |
23.5-25 |
Steering Angle |
0.27-0.32MPa |
Steering System | |
Type |
full hydraulic coaxial flow amplification steering system |
Steering Angle |
Each side ±35° |
Min-Turning Radius |
Outside of bucket: 7050mm |
Outside of rear wheel: 6550mm | |
Hydraulic System | |
System Working Pressure |
16.0MPa |
Boom Lifting Time |
≤6.5s |
Total |
≤12s |
Brake System | |
Travel Brake |
air-over-oil caliper-disc 4 wheel drive |
Parking Brake |
pneumatic control caliper disc brake |
Fuel Capacity | |
Fuel Tank |
230L |
Hydraulic Tank |
270L |
WORK SHOP
LOADING PHOTO
CONSTRUCTION CASE

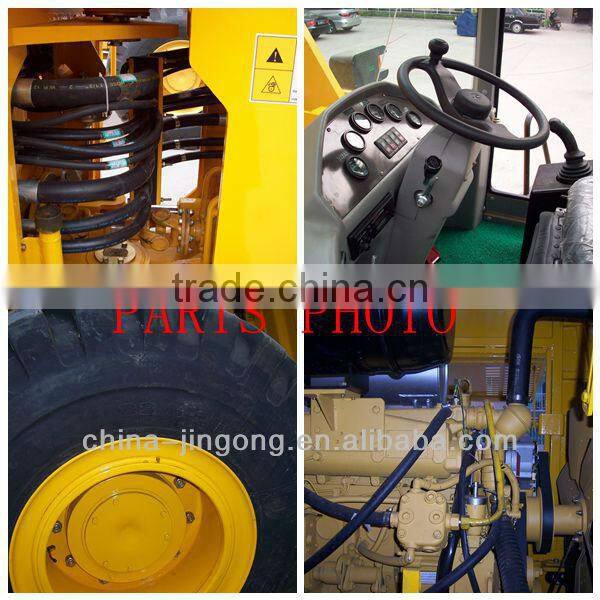

PARTS PHOTO
