2017 large dealing capacity sand sieving machine
1.Brief Introduction
Since 1996,we have been manufacturing the sand sieving machine for many years. The structure of the sand sieving machine is not very complicated, but there are still some details you need to care. For example, the angle of inclination of the hopper, the length of the conveyor belt from the hopper to the screen, the mesh size of the screen,and the stability of the complete sand sieving machine.
We can design the sand sieving machine according to your specific requirements, the capacity,types of materials wanted, discharge distance and driven method. If there is no electricity in your working site, we could use diesel engine to drive the sand sieving machine.
2.Techinical Specification
Model | Screen size | Max. feed size | Capacity | Electric motor power | Weight | Overall |
YLSSM15 | 10mm | 200 | 15-80 | 11 | 4 | 6600×1800×1850 |
YLSSM50 | 10mm | 200 | 30-180 | 15 | 5 | 6906×2100×1600 |
YLSSM100 | 10mm | 200 | 30-200 | 15 | 6 | 8906×2100×1900 |
YLSSM120 | 10mm | 200 | 30-250 | 18.5 | 7 | 8906×2100×2150 |
YLSSM150 | 10mm | 250 | 50-300 | 18.5 | 6 | 8509×2536×1810 |
YLSSM200 | 10mm | 250 | 50-300 | 22 | 8 | 8509×2536×1910 |
YLSSM260 | 1 10mm | 250 | 50-300 | 30 | 9 | 8509×2536×2250 |

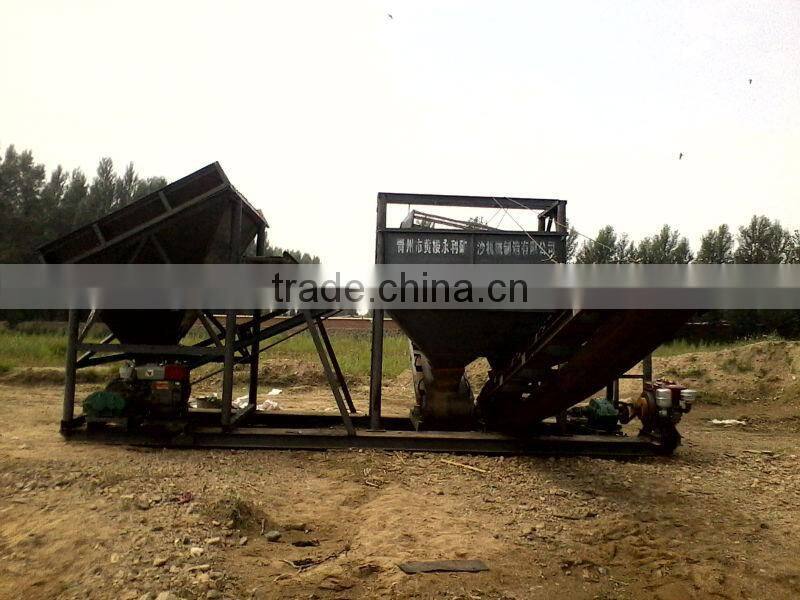

Full view of sand sieving machine
This model separates the raw materials into two types, sand and gravels.And the sand and gravels are discharged by conveyor belt.

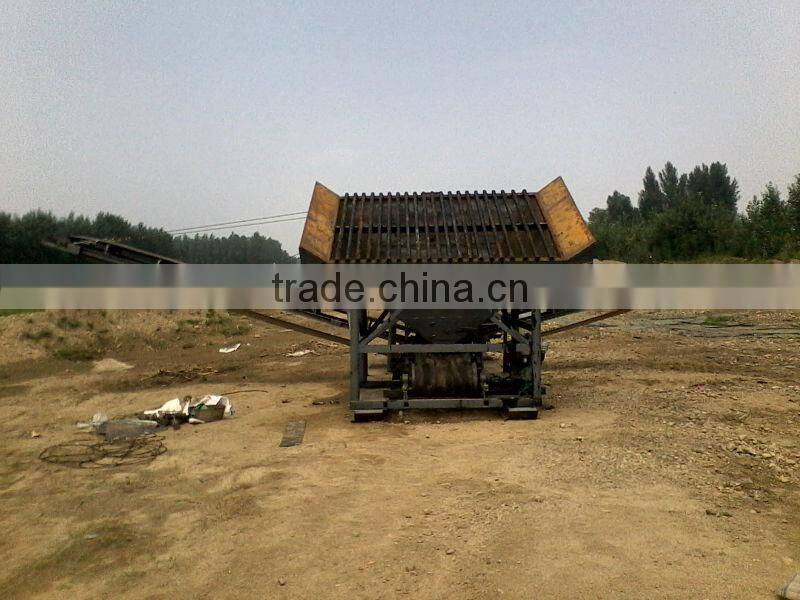

The steel pipes on the hopper will separate the big stones.This will lessen the possibility of the worn-out of the screen and increase working efficiency.
3. The sand sieving machine usually matches with wheel sand washing machine
