Gravity gold concentrator
1.Brief Introduction to gravity gold concentrator
This kind of gravity gold concentrator is also called instigating sluice box and agitating sluice box.
It is specially developed for gold separating and mining according to the mining practice of placer gold. This kind of gold sluice box is researched Chinese gold research institute and improved by us for many years. Over 1000 units of the machine has been sold out which are in application in 10 different countries and appreciated highly by our customers from Bolivia, Indonesia, and Australia,Canada,South Africa,Malasia.Compared with centrifugal concentrator,it is much more cheap and easier to be operated.
2.Specification for gravity gold concentrator
| Capacity | Power | Water Consumption | Recovery rate | Dimension | Feeding Particle Size | Gold size |
| 30 tons per hour | 1.5kw | 40 m3 per hour | 80% | 3.5m×1.5m | ≤8mm | under 8mm |
3.Pictures and Applications of the gravity gold concentrator
Single Pulsating sluice box( instigating sluice box/agitating sluice box )

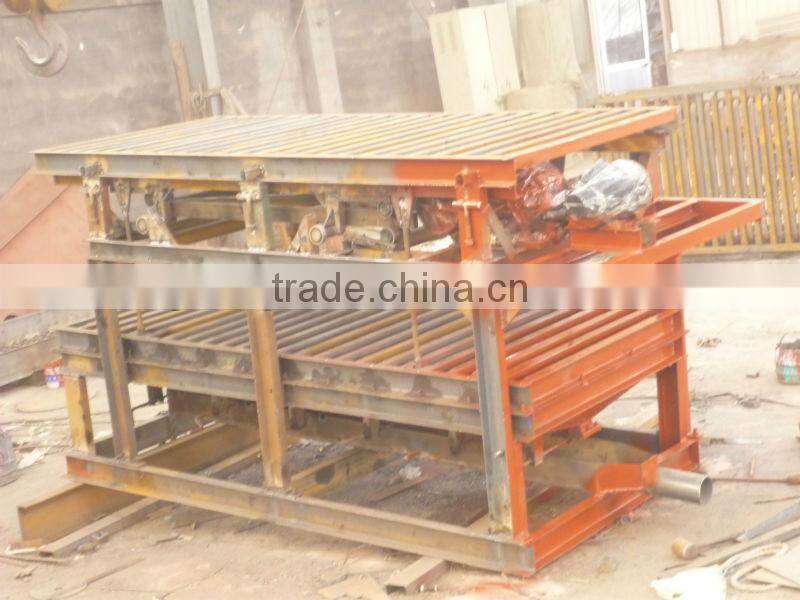

Semi-completed vibrating sluice box
Dual pulsating sluice boxes

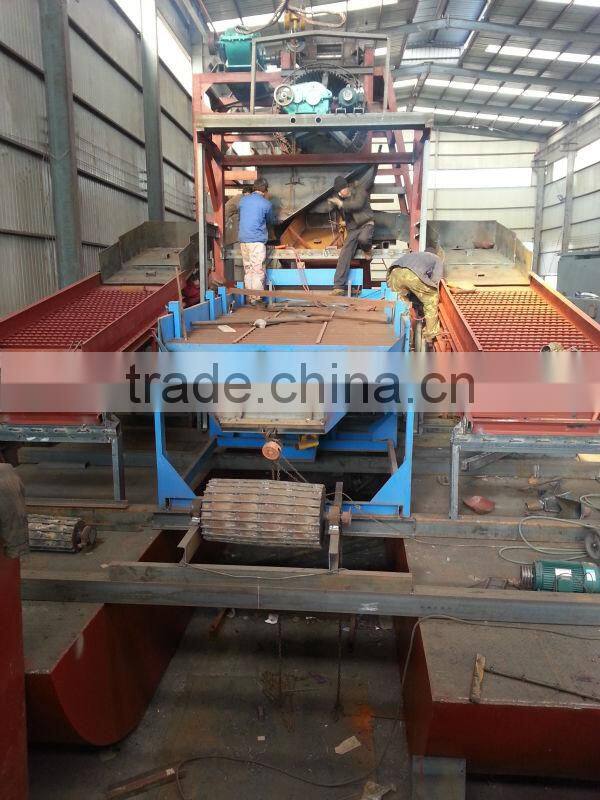

Pulsating sluice box used on Land gold washing plant. We add the gold mining grass under it to raise the recovery rate.
Pulsating sluice box used on bucket wheel gold and diamond dredger.We use the jig to separate the diamond.
Pulsating sluice box used on Dual Jet Suction Gold Dredger
Concentrated gold
Gold separated by pulsating sluice box
We are the professional gold mining equipments manufacturer.Besides of pulsating sluice box, we have many kinds of gold and diamond separating machines.Please share with us more information about your requirements, we will design and provide the most suitable equipments for you.
