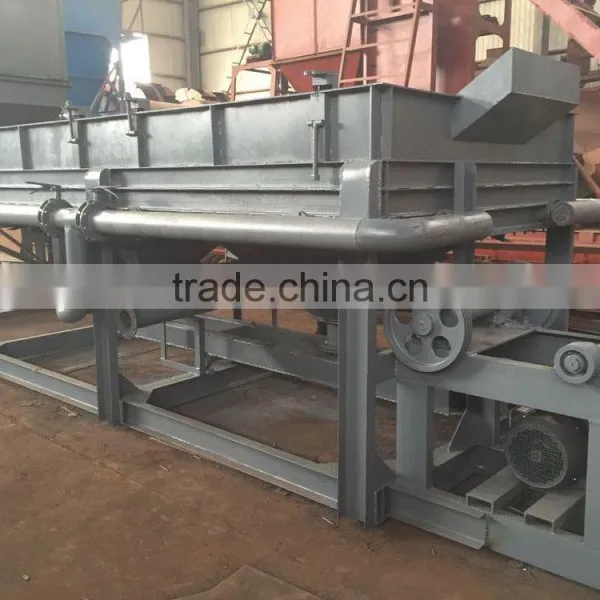

2015 Hot Sale New Pulse Type Jigging Machine
US$ 10,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
80-120T
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto-discharge Pulse Type Jigging Machine for Mining GoldNegotiableMOQ: 1 -
YLT-80 China New Designed Pulse Type Jigging MachineNegotiableMOQ: 1
-
2015 CHINA NEW Pulse Jigging Machine for Mining GoldUS$ 1,000 - 10,000MOQ: 1 Set
-
Pulse Type Jigging MachineUS$ 15,000 - 25,000MOQ: 1 Set
-
Diamond Mining MachineNegotiableMOQ: 1
Condition
New
Type
Gravity Separator
Production Capacity
80-120T
Place of Origin
Shandong, China
Brand Name
YONGDELI
Model Number
YLT-120
Voltage
220V/380V
Power(W)
11KW
Dimension(L*W*H)
4.5*3
Weight
800kg
Certification
ISO9001-2008
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
PRODUCT FEATURES
- Pulse type jigging machine is a main gravity concentrator of minerals.The working
principle is as follows:the raw ore of gold and diamond is fed to the grid layer
continuously,and then the up-going water will be jetted into the raw ore with the
periodical instigation of the rubber plate,so the raw ore will be lossened.Then
water
goes down(or stop rising).In this process,the heavy minerals go to the lower
level,and the light minerals go up and then discharge separately.
- This type of jig could almost process all sizes of particles except tiny materials.The operation is easy and capacity is big,and terminal minerals concentration could be completed in one time of concentration process,so it is widely used in production and a main method to treat metal ore,coarse/middle size/fine size gold ore,titanium,zirconium and chromium.
- The more difference between the wanted minerals and sand,the wider range of the feeding particles is.All the raw ore whose particles are under 25mm could be separated directly without classifying.The minimum feeding particle size could be 0.05mm.This jig machine could also be used together with pulsating sluice box and centrifugal concentrator for gold mining work.
TECHNICAL PARAMETERS
| MODEL | SPECIFICATION | CAPACITY | PARTICAL SIZE | WATER CONSUMPTION | POWER |
| YLT-60 | 3*1.5M | 20-50T/H | 0.4-25MM | 80m³/h | 5.5KW |
| YLT-80 | 4*2M | 50-80T/H | 0.4-25MM | 130m³/h | 7.5KW |
| YLT-120 | 4.5*3M | 80-120T/H | 0.4-25MM | 180m³/h | 11KW |
