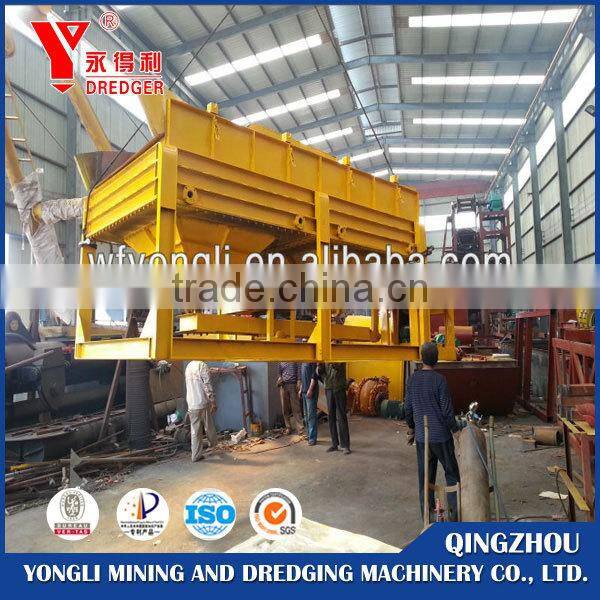

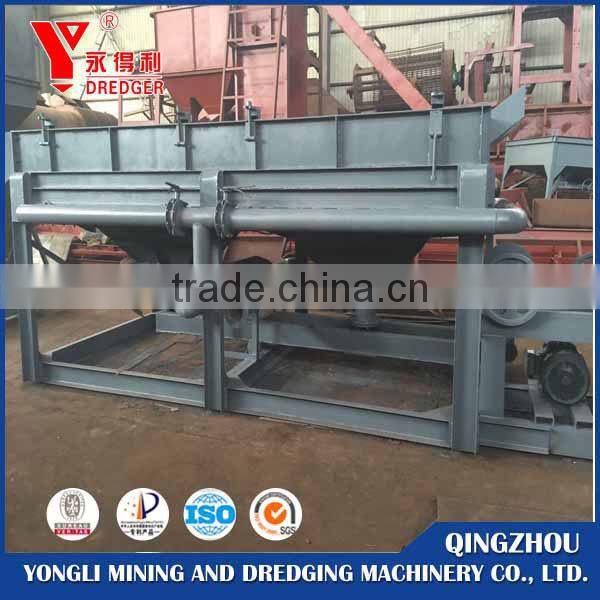

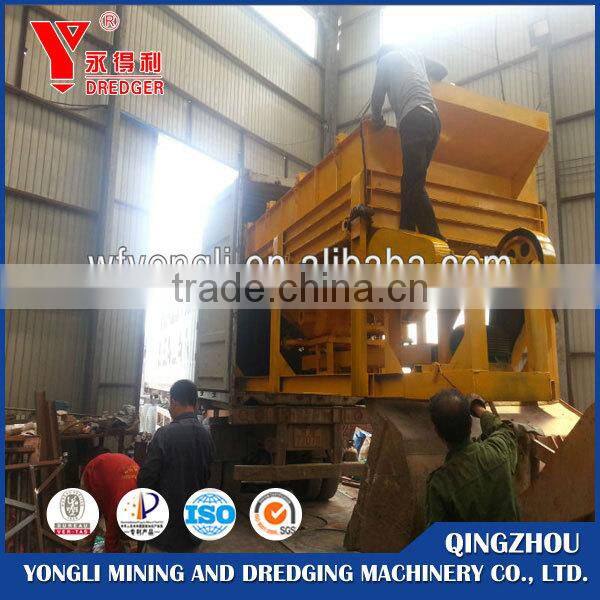

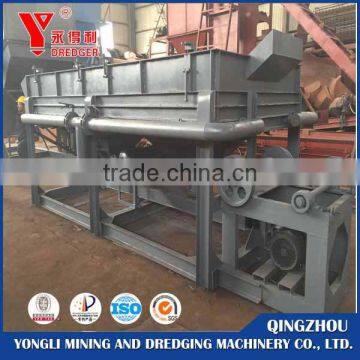

Help Center2015 CHINA NEW Pulse Jigging Machine for Mining Gold
Related Products
Qingzhou Yongli Mining and Dredging Machinery Co.,Ltd.
We are a professional manufacturer of gold and diamond mining
machinery.
PRODUCT FEATURES
¤¤¤¤ This is one of the main method of gravity separation.
¤¤¤¤ It can deal with almost all kinds of the size of the ore in addition to very fine material.
¤¤¤¤ Equipment is simple to operate.
¤¤¤¤ Equipment handling capacity is very large.
¤¤¤¤ It is widely used in production .
¤¤¤¤ The minimum feeding partical size could be 0.05mm.
¤¤¤¤ This jig machine could also be used together with pulsating sluice box and centrifugal concentrator for gold mining work.
TECHNICAL PARAMETERS
| MODEL | SPECIFICATION | CAPACITY | PARTICLE SIZE | WATER CONSUMPTION | POWER CONSUMPTION |
| YLT-60 | 3*1.5M | 20-50 | 0.4-25MM | 80M3/H | 5.5KW |
| YLT-80 | 4*2M | 50-80 | 0.4-25MM | 130M3/H | 7.5KW |
| YLT-120 | 4.5*3M | 80-120 | 0.4-25MM | 180M3/H | 11KW |
The equipments of our company
- Dismantled after full tested before delivery.
- Reassemble at work site.
- Containers Needed for shipping: 40 HQ.
If there is anything we can do for you, we will shall be more than please to do so .
Hope we can build good cooperation with you.
we look forward to receiving your first order.
