1. Mobile gold plant
1.Capacity:200 tons per hour
2.Recovery rate:90%
3.Application: Nugget gold,diamond and other precious stones
4.ISO9001:2008
2.Specifications for gold plant:
NO | Item | Parameter | Quantity |
1 | Hopper | 10m³ | 1 |
2 | Trommel Classifier | Length7m Diameter1.8m | 1 |
4 | Jigger | Type YL-80 | 1 |
5 |
Gearbox | Type 500 | 2 |
|
| Type 200 | 8 |
6 |
Electric Motor
| 30kw | 3 |
|
| 7.5kw | 2 |
|
| 1.1kw | 8 |
7 | Diesel Electricity Generator | 74kw | 1 |
3.Pictures of the gold plant
Hopper that could be fed from two sides and the material will be transported into the trommel classifier by conveyor belt.

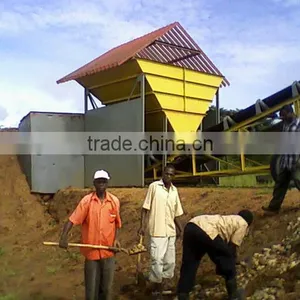

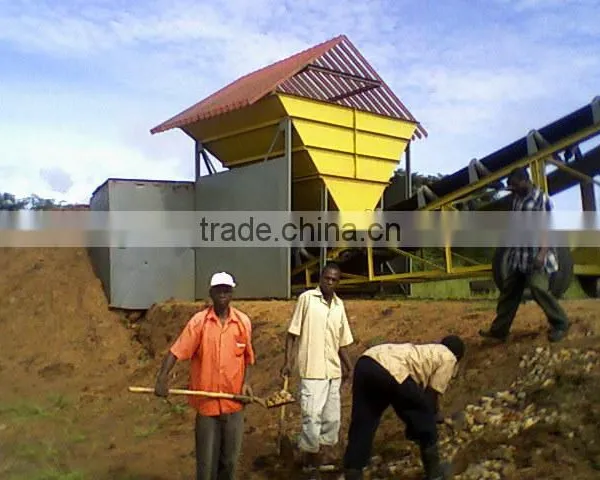

African friends working on site
Back view of the movable gold plant
Front view of the movable gold plant
Total view of the movable gold plant
The trommel classifier is supported by 12 rubber wheels. The conveyor belt is also movable.
Close-up picture of the connect between the conveyor belt and the trommel classifier
The classifier or screen will separate the gravels and bigger stones from the sand
Gravels and bigger stones left away.Here we can design another conveyor belt to transport them to other places.
Precious stones and gold separated by our gold plant
Please forward some information relative to your mining project, as soon as we received the range of your interest I shall quote you accordingly
- Type of minerals to be mined?
- Type of deposit (Primary/hard rock, or secondary/placer)?
- Physical characteristics of the ore (sandy, with light clay or heavy clay)?
- Intended feed capacity (Tons/hour)?
- Availability, source and distance of water from your mining area?
- Preferred drive system (Electric Motor, Diesel or Gasoline Engine)?
- Startup schedule of the mining operation?
- Location of your mine (area, country)
Welcome to contact us directly to get more information!
