gold trommel screen for Ghana
1. Features of gold trommel screen for Ghana
1.Movable or fixed
2.Supported by tubeless tyres
3.Low maintenance but high capacity and efficiency
4.Alloy gauze not easily worn out
2. Working principle of gold trommel screen for Ghana
- The gold trommel screen could be fed by excavator,wheel loader and conveyor belt.
- The grizzly on the hopper will first separate the big stones.
- Then the wanted raw ore will go into the trommel by chute or conveyor belt. Our specially designed will break the light and heavy clay into pulp/slurry. This is the crucial step for the gold separating.
- The screen will separate again the unwanted small stones and separate the materials containing gold into different sizes according to the type of the gold separaing machine(i.e, jig,centrifugal concentrator, instigating sluice box, chute with miner's matt and so on).
3. Technical parameter of gold trommel screen
Type | Capacity | Power | Screen Diameter | Screen Length | Input Size | Weight |
(t/h) | (kw) | (mm) | (mm) | (mm) | (kg) | |
YLGTS80 | 80 | 7.5 | 1250 | 2500 | ≤400 | 2200 |
YLGTS100 | 100 | 11 | 1500 | 3500 | ≤400 | 2800 |
YLGTS1200 | 120 | 11 | 1650 | 3500 | ≤400 | 4200 |

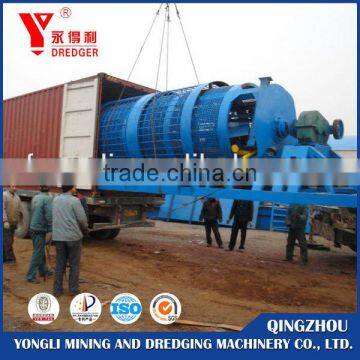

Mobile gold trommel screen exported to South Africa
Stable gold trommel screen
Portable gold trommel screen
Model | Dimension(m) | Feeding Material Size(mm) | Capacity(T/h) | Water Flow(m³/h) | Electric Motor | Net Weight(Kg) | |
|
|
|
|
| Type | Power |
|
YLLS-2 | L2.5*W0.9*H1.6 | <200mm | 2 | 20 | Y90S-4-1.1 | 1.1kw | 300 |
YLLS-4 | L2.9*W1.0*H1.8 | <300mm | 4 | 25 | Y90L-4-1.5 | 1.5kw | 350 |
Gold trommel screen used on gold dredger

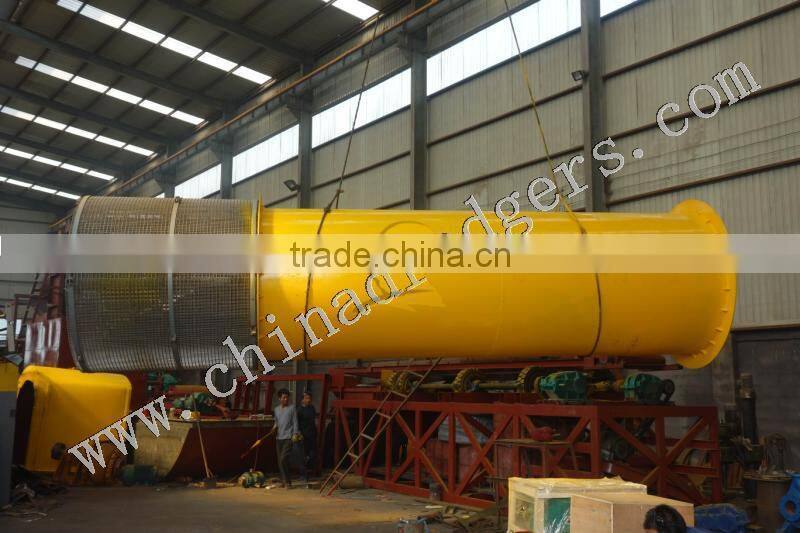

Large size gold trommel screen used for nugget gold and diamond mining
