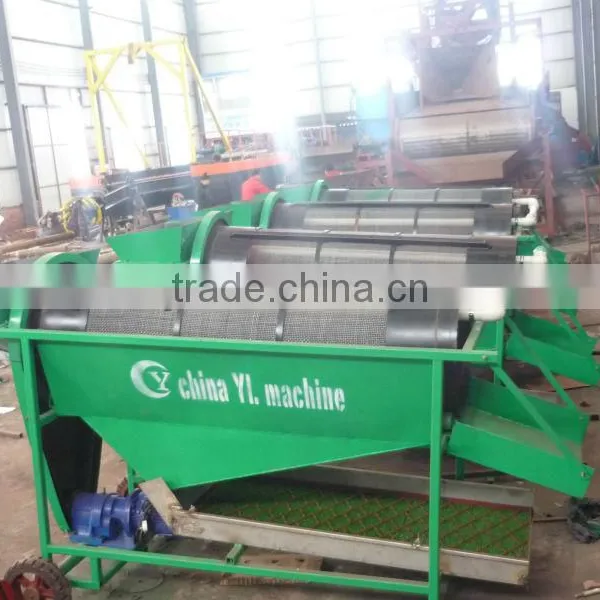

Portable river gold panning machine
1. Working process of YONGDELI brand portable river gold panning machine
- This type of gold panning machine is very popular in Africa countries. It is easy to move and more efficient than the gold sluice chute with gold carpet.
- This model could be fed manually or by small excavator after we make some changes to the hopper.
- We use alloy steel wire mesh on the screen, so it is everlasting and of low maintenance.
- We can also use diesel engine to drive the portable gold panning machine if you don't have a small electricity generator.
- On the bottom of the gold panning machine, there is a sluice with gold capturing grass, which is more efficient than the gold carpet. You can see the picture of it below.
2. Technical specification for the portable river gold panning machine
Model | Dimension(m) | Feeding Material Size(mm) | Capacity(T/h) | Water Flow(m³/h) | Electric Motor | Net Weight(Kg) | |
Type | Power | ||||||
YLLS-2 | L2.6*W0.9*H1.7 | <300mm | 3 | 20 | Y90S-4-1.2 | 1.2kw | 300 |
YLLS-4 | L2.8*W1.0*H1.9 | <300mm | 5 | 25 | Y90L-4-1.7 | 1.7kw | 350 |
There are 4 small wheels for the mobility of the gold panning machine
The water injetction pipes above the sluice chute helps to wash the silt,clay and make the gold falls on the gold capturing grass.
The gravels separated will be discharged by the chute in the back of the portable gold panning machine
Gold capturing grass on the sluice chute
Gold concentrates cleaned from the gold capturing grass
You can separate the final gold by gold pan or shaking table

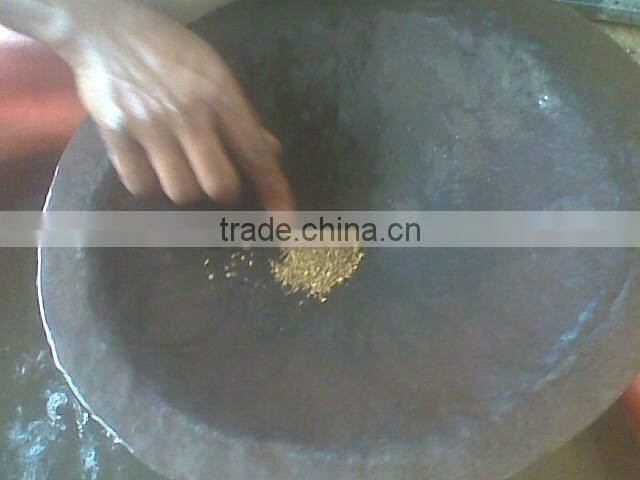

gold pan
Shaking table
And after that, the final gold could be melted by the gold funace....
