China Mobile Gold Wash Plant
1.Introduction to China Mobile Gold Wash Plant
- China YL brand mobile gold wash plant is designed with our 12 years of gold mining experience.
- This type of plant is easy to move to different mining area according to customers' demand.
- The whole plant is placed on a trailer and is composed by one trommel classifier, 4 pulsating sluice boxes, one material distributor and a set of gravel conveyor belt.
- The trommel screen will separate the gravels, roots and other impurities from the sand. Then the sand will go into pulsating sluice boxes via the material distributor.
- The biggest advantage is that the sand could be distributed to the 4 sluice boxes more evenly compared to the normal chute. This is our patent!!
2.Specification for China Mobile Gold Wash Plant
Trommel Screen | |||||
Size | Inner Diameter 1.5m, Outer Dimater1.8m Length 5.8m | 1 |
| ||
Trommel | Length2.5m Diameter1.5m |
|
| ||
Screen | Length 3.9mInner Diameter1.5 Outer Dimeter1.6m |
| Outside grizzly 8mm | ||
Rotation Speed | 18—20R/h |
|
| ||
Gearbox | Type 400 | 2 |
| ||
Power | 22KW | 1 |
| ||
Hopper | |||||
Size | 2900mm×2700mm | 1 |
| ||
Hopper Steel Plate Thickness | 9mm |
|
| ||
Hopper Support Frame | 114 Round Steel Pipe |
|
| ||
Pulsating Sluice Box | |||||
Size | 3800mm×1800mm | 4 PCS |
| ||
Power | 3kw |
|
| ||
Capacity | 25ton/h | Total100ton/hr |
| ||
Ratio of Sands | 30% |
|
| ||
Gearbox | Type 200 | 4 sets |
| ||
Particle Size | <8mm |
|
| ||
3. Pictures of our gold wash plant

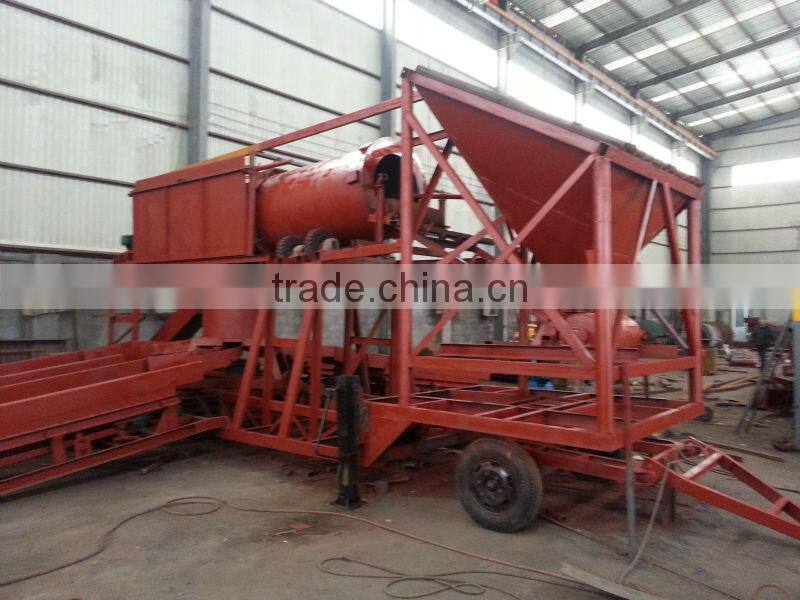

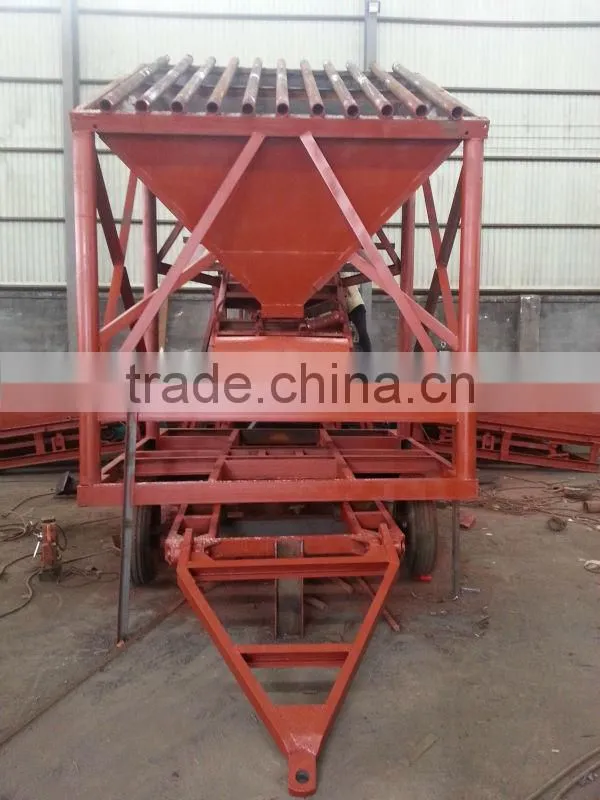

The trailer could be pulled by truck,wheel loader,crane or any other vehicles.

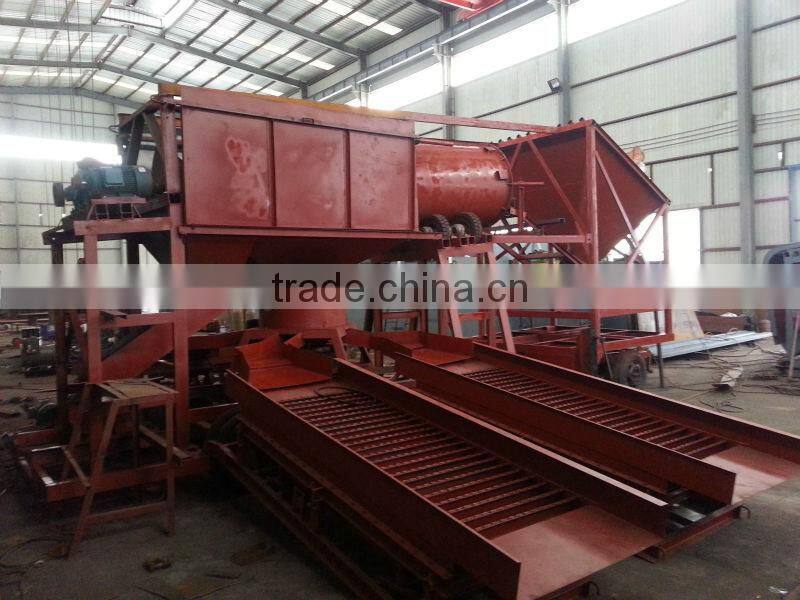

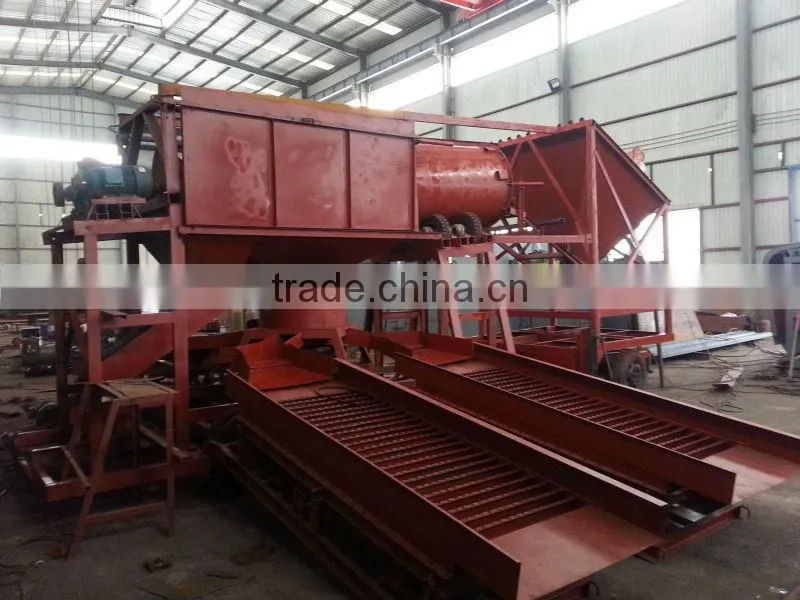

These are two pulsating sluice boxes on one side.
The whole gold wash plant will be stabilized by 4 lags just like crane.

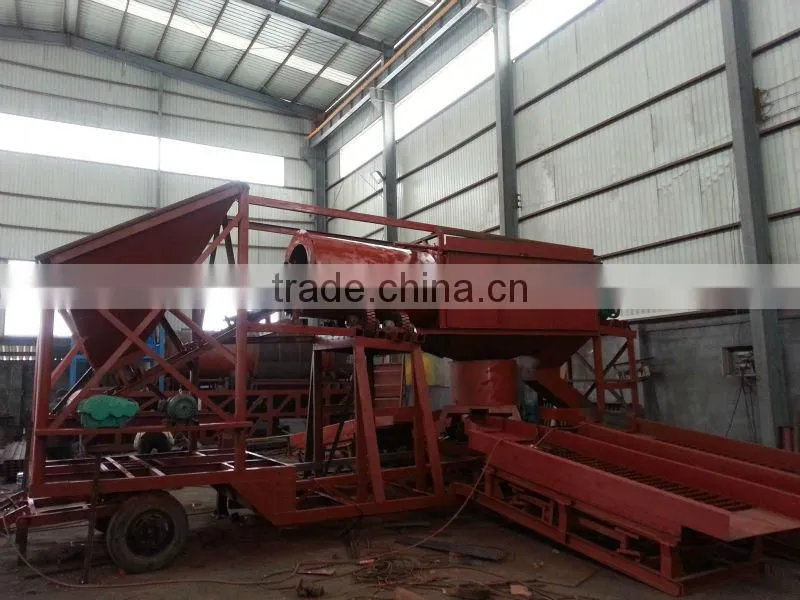

There are another two pulsating sluice boxes on the other side.

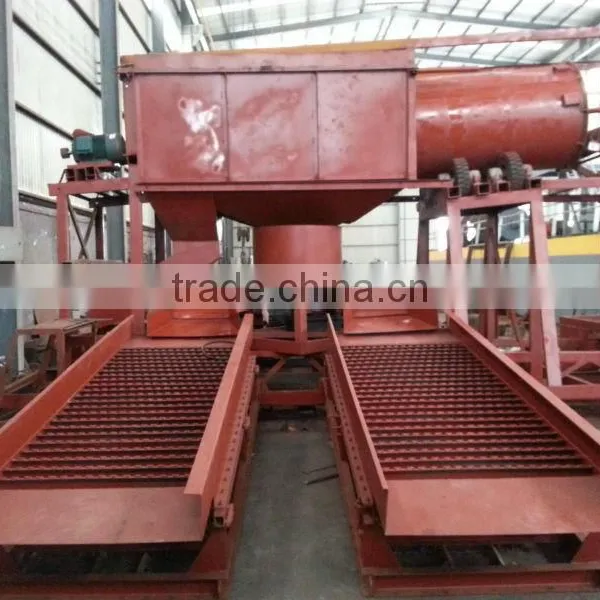

Close-up picture of the pulsating sluice box. If you want to raise the recovery rate a little more, we will add miners mat after the sluice boxes.

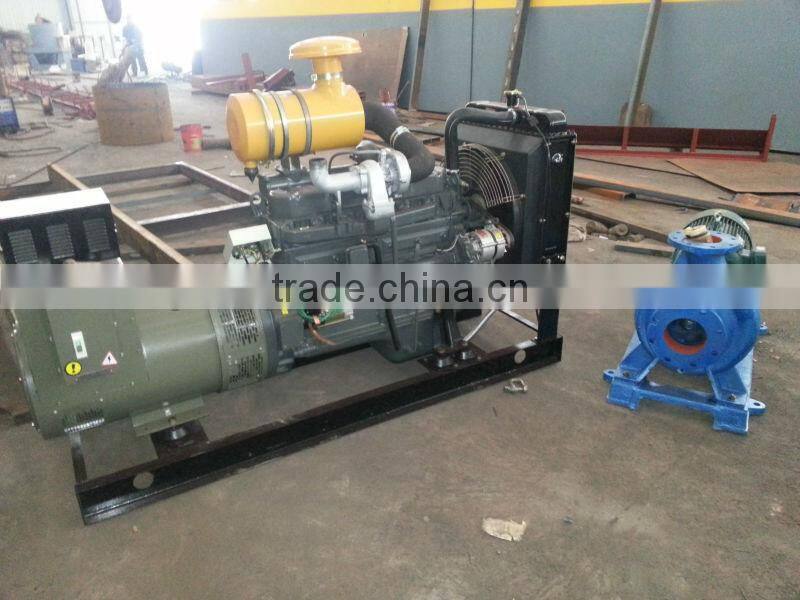

Diesel generator and water pump
4.Contact information
If you are interested in our gold plant, please contact us directly for more information. Or you can inform us of more information of your mining requirements, we will design and manufacturer the most suitable gold washing plant for you.
