Hot sell alluvial gold mining machine
1. Description of our gold mining machine
This type of gold mining machine is also called mobile gold washing plant. The hopper,trommel screen and conveyor belt for gravels are placed on one chasis for convenience of moving to different mining places.
The gold mining machine is not equiped with power to move but it can be pulled by the feeding machine such as wheel loader, excavator or dumpers.
The gold separator used is what we call the instigating sluice box. It is invented on the basis of the sluice chute with gold carpet. The is mechanism to make the sand moves up and down, so the ligher sand will be flushed away and the heavier gold stays on the instigating sluice box. Our gold mining machine is a type of gravity separator so it is environmentally-friendly and causes no harm to the body.
2. Technical specification for the instigating sluice box on the gold mining machine
Parameter Model | YLVSB20 | YLVSB30 | YLVSB45 |
Capacity(T/h) | 10-20 | 20-30 | 30-40 |
Feeding Particle Size(mm) | ≤6mm | ≤6mm | ≤6mm |
Water Consumption(m3/h) | 50-60 | 80-100 | 110-150 |
Power(kw) | 1.1 | 1.5 | 3.3 |
Dimension(L*W*H)(m) | 1.2m*3.8m*0.8m | 1.5m*3.8m*0.8m | 1.8*3.8*0.8m |

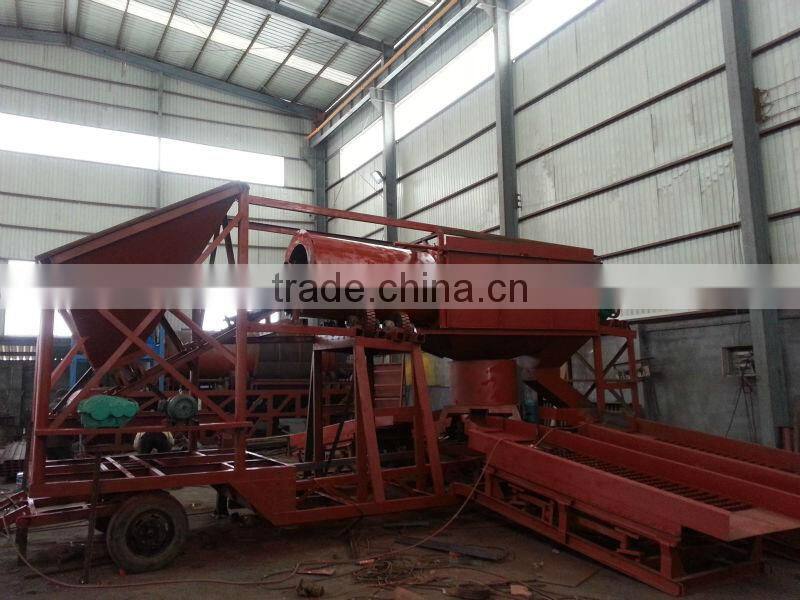

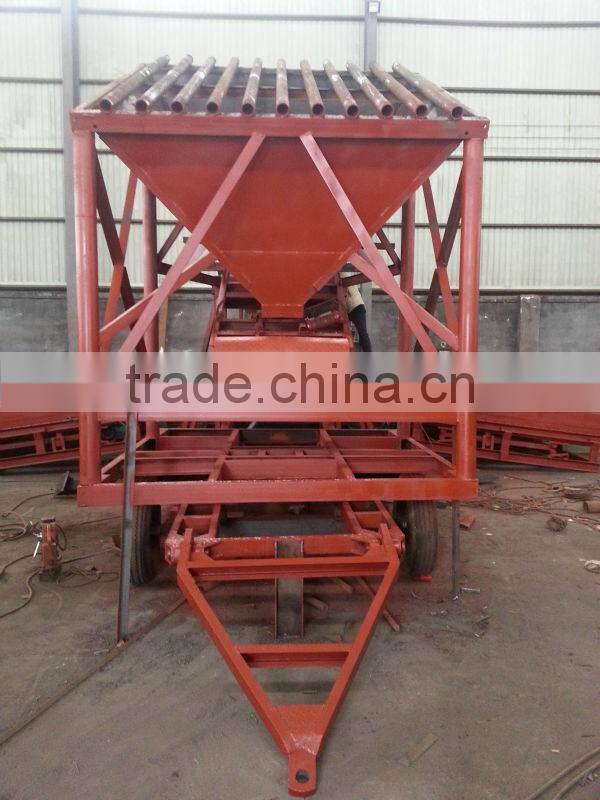

Chasis and hopper for the gold mining machine
There are total 4 sets of instigating sluice boxes on the gold mining machine,2 sets on each side.

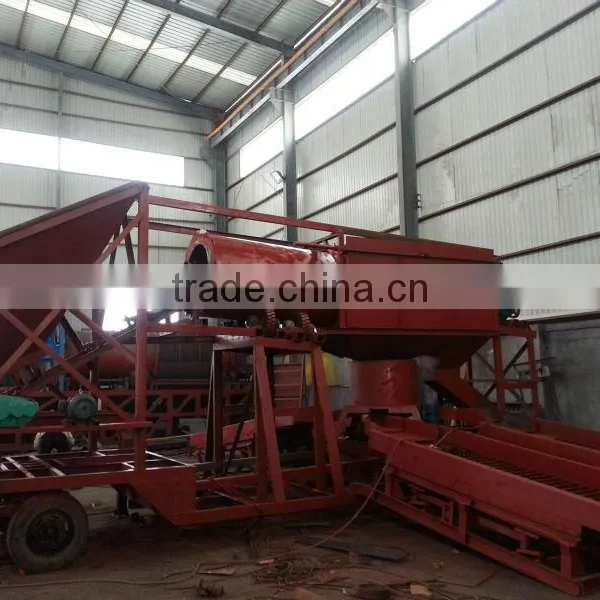

Our trommel screen is driven by tyres instead of chains.

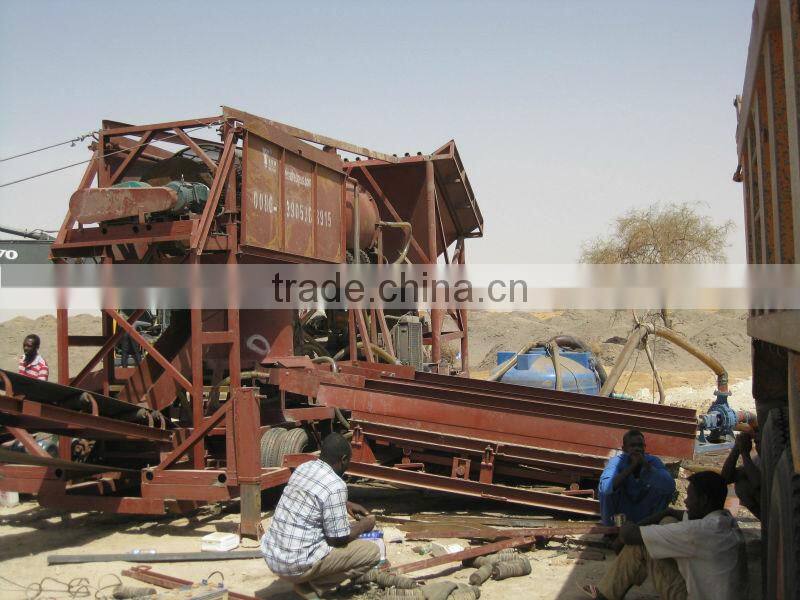

Our mobile gold mining machine working on site.

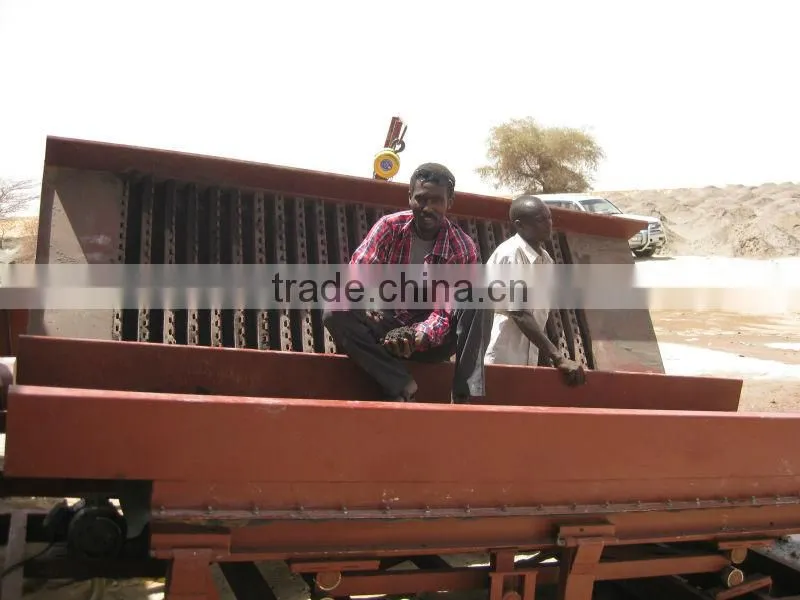

Instigating sluice boxes cleaning of the gold concentrates.
Please contact us for more details of the gold mining machine.
