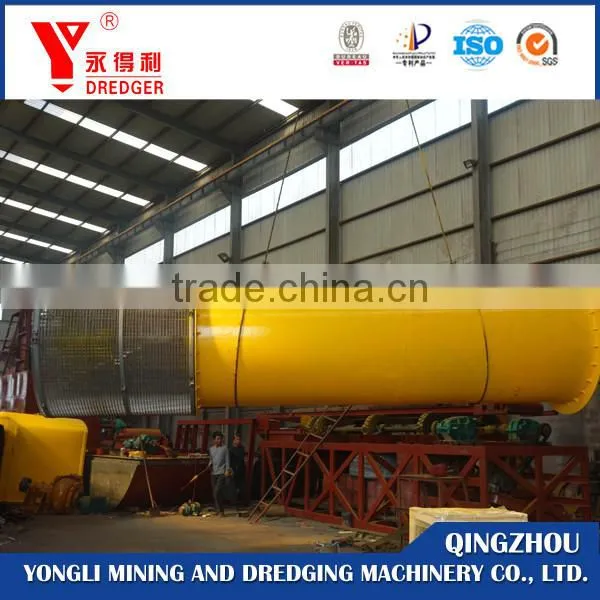

Help Center2017 China Hot Sale Mobile Gold Trommel Screen
Related Products
Diesel Engine Gold Trommel Screen
1.Product Features
1.Movable or unmovable
2.Supported by tubeless tyres
3.Low maintenance cost but high capacity and efficiency
4.Alloy gauze not easily worn out
2.Working Principle
- The gold trommel screen could be fed raw material by excavator,wheel loader or conveyor belt.
- The vibrating screen on the hopper will firstly separate off the big stones.
- Then the wanted raw ore will go into the trommel by chute or conveyor belt. Our specially design will break the light and heavy clay into pulp/slurry. This is the crucial step for the gold separating.
- The screen will separate again the unwanted small stones and separate the materials containing gold into different sizes according to the type of the gold separaing machine(i.e, jig,centrifugal concentrator, instigating sluice box, chute with miner's matt and so on).
3.Technical Parameter
Type |
Capacity |
Power |
Screen Diameter |
Screen Length |
Input Size |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(kg) |
|
YLGTS80 |
80 |
7.5 |
1250 |
2500 |
≤400 |
2200 |
YLGTS100 |
100 |
11 |
1500 |
3500 |
≤400 | 2800 |
YLGTS1200 |
120 |
11 |
1650 |
3500 |
≤400 | 4200 |
4. Successful Case

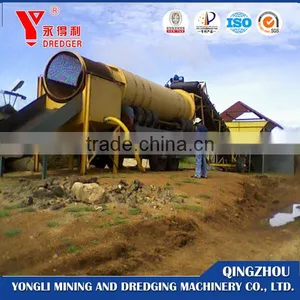

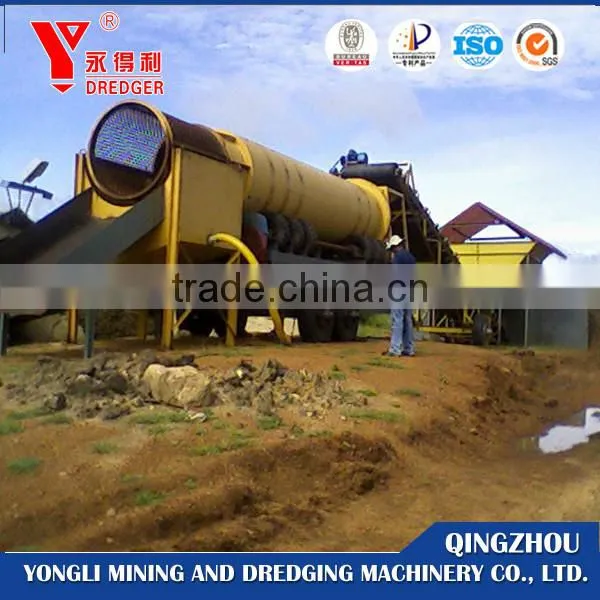

Mobile gold trommel screen exported to South Africa
gold trommel screen

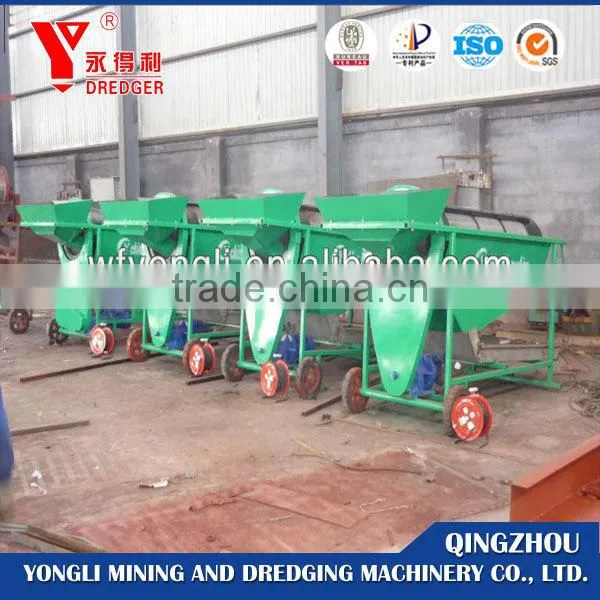

Portable gold trommel screen
Model |
Dimension(m) |
Feeding Material Size(mm) |
Capacity(T/h) |
Water Flow(m³/h) |
Electric Motor |
Net Weight(Kg) |
|
|
|
|
|
|
Type |
Power |
|
YLLS-2 |
L2.5*W0.9*H1.6 |
<200mm |
2 |
20 |
Y90S-4-1.1 |
1.1kw |
300 |
YLLS-4 |
L2.9*W1.0*H1.8 |
<300mm |
4 |
25 |
Y90L-4-1.5 |
1.5kw |
350 |
Gold trommel screen used in gold dredger
Large size gold trommel screen used for nugget gold and diamond mining
4.Company Qualification
5.Customer Visit
