Home > Products > New Products > Alluvial gold recovery machine for sale
Alluvial gold recovery machine for sale
- 1000 Unit / Units per Month
- qingdao Port
- T/T
- 2015 Chinese Portable Mini Gold Mining Dredger For Sale
- china sand washing machine
- High income hengchuan Chain bucket sand boat
- high efficient small gold suction dredger/mini gold dredge for sal
- Good efficiency HC series of discharge by rubber belt for sale
- price of centrifugal gold concentrator(STL80)
Product Details
Condition: | New | Type: | Sprial Separator | Production Capacity: | 100% |
Place of Origin: | Shandong, China | Brand Name: | Hengcheng | Model Number: | STL100 |
Voltage: | 380V | Power(W): | 7.5kw | Dimension(L*W*H): | 2500*2000*2400mm |
Weight: | 2800kg | Certification: | ISO9001 CE BV SGS | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
according to the contract
Product Description

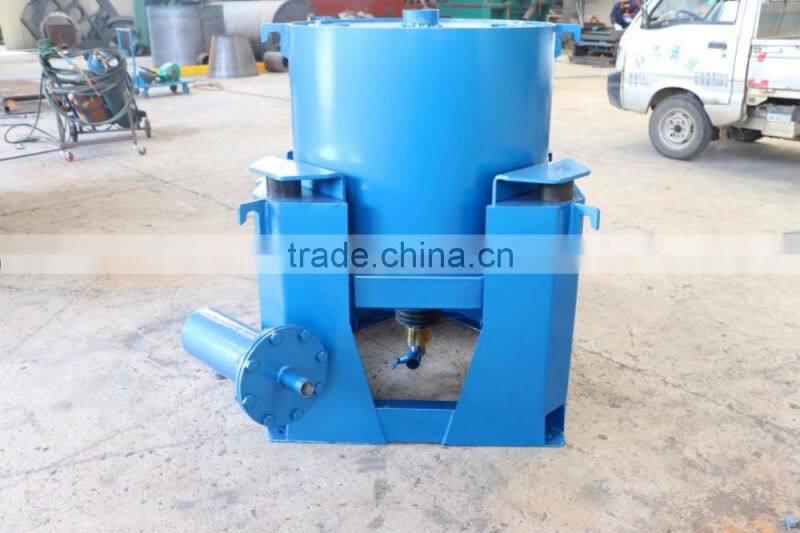

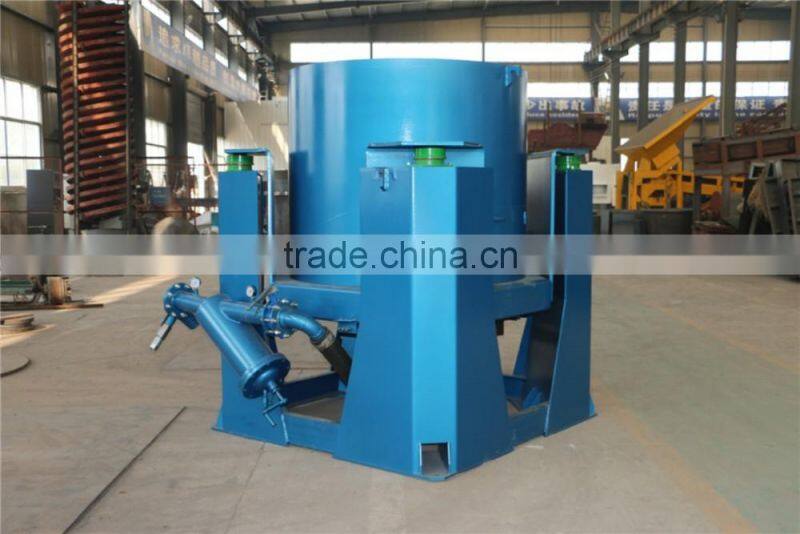

Alluvial gold recovery machine
(centrifugal concentrator)
Alluvial gold recovery machine --Introduction
Water Jacket gold concentrator consists of pipelines, mainframe, tailing chute, drive motor, vertical shaft and separation device.
The separation device is cone unit includes two layers; the inner layer is made by stainless steel plate, with circle gratings and small holes on the wall,
the outer layer is made by mild steel plate. The two layers form a close water jacket system.
Alluvial gold recovery machine parameters
centrifugal concentrator main technical parameters | ||||||
TYPE | STL20 | STL30 | STL60 | STL80 | STL100 | STL120 |
CAPACITY T/h | 0.25-0.30 | 2--3 | 10--15 | 35-40 | 80-120 | 80-120 |
PARTICLE SIZE mm | <4 | <4 | <6 | <6 | <6 | <6 |
FEEDING CONCENTRATION % | <50 | <50 | <50 | <50 | <50 | <50 |
BACKWASH WATER T/h | 5--10 | 10--15 | 40-60 | 60-80 | 80-100 | 100-120 |
WATER PRESSURE Mpa | 0.05 | 0.05-0.1 | 0.1-0.15 | 0.1-0.18 | 0.1-0.2 | 0.15-0.2 |
OUTPUT Kg/T | 2--3 | 10--20 | 30-40 | 60-70 | 70-80 | 80-120 |
POWER Kw | 0.75 | 1.5 | 7.5 | 18.5 | 22 | 30 |
WEIGHT kg | 300 | 500 | 1300 | 1800 | 2800 | 3200 |
Alluvial gold recovery machine for sale in our company
Alluvial gold recovery machine for sale Advantages& Features
1.High concentrating ratio and high recovery
2. Total process automation, steady recovery performance
3. Low energy consumptions
4. Environmentally friendly(requires no chemical additives or reagents)
5. Low water and electricity requirements
6. Low production costs, durable wear parts, minimal maintenances requirements
7. Compact design requiring less space, easy merged into the existing mining processing
8. Quick payback on investment, typically lass than half year
9. Rugged design and a high degree of quality manufacturing ensures that every Concentrator will provide many years of reliable, trouble-free operation in even the most severe operating environments.

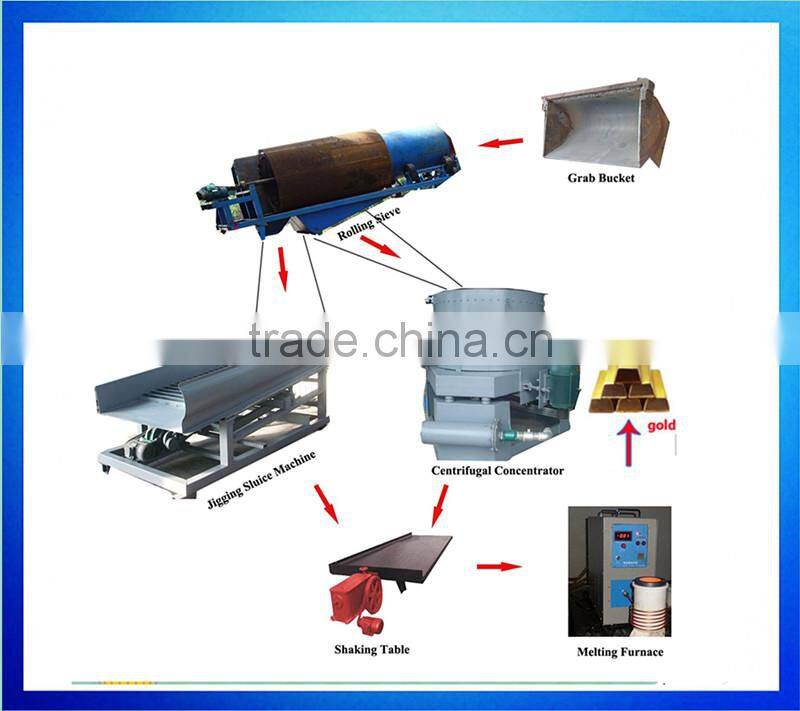

The Wolkflow
Our company
welcome to contact me
1. What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
* What minerals are you separating?
* What's the maximum size of your raw minerals?
* How much capacity do you need per hour for your project?
Note: If Pics of the mineral & Chemical components report of your minerals are available, pls consider to send us for evaluation purposes.
2. Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
3. Can we vist your company?
Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Gaoxuan equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Gaoxuan able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need. we had already build many mining projects in China & Overseas. Gaoxuan can set a complete processing line just as you require, the main equipments will be manufactured by us and some other supporting equipments ( like generator ) will be supplied by our cooperating facotries under our supervision.
Company Profile
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field.
Development History:
A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS.
B).Cooperated with Shandong Gold Group and doubled the sales scale.
C).Developed STL-120 gold centrifugal concentrator in 2008.
D).Mature dredger products in 2009.
E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling.
F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015.
Enterprise Spirit -eternal integrity
Enterprise Purpose-to consistently exceed customers' expectations
Core Values-innovation and leading the future
Service Concept- to create value for customers
Development Concept - Quality is life; innovation is the driving force
Corporate Vision- the world leading supplier of magnetic separation equipment
