China New Product for 2016 Skid Type 10 Tons Per Hour Small Gold Trommel/Trommel Screener for Sale

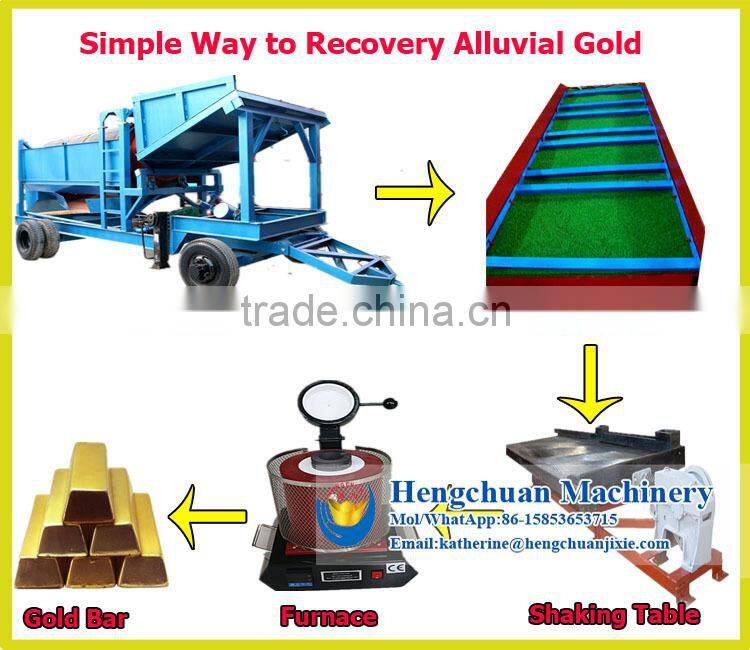

General flow for placer/alluvial/river gold processing
1. Feature of China New Product for 2016 Skid Type 10 Tons Per Hour Small Gold Trommel/Trommel Screener for Sale
1).Movable, can be dragged by wheel loader or excavators
2).Gold Recovery rate can be more than 96%
3).Low water and electricity requirements
4).Screen replaceable for different mesh sizes

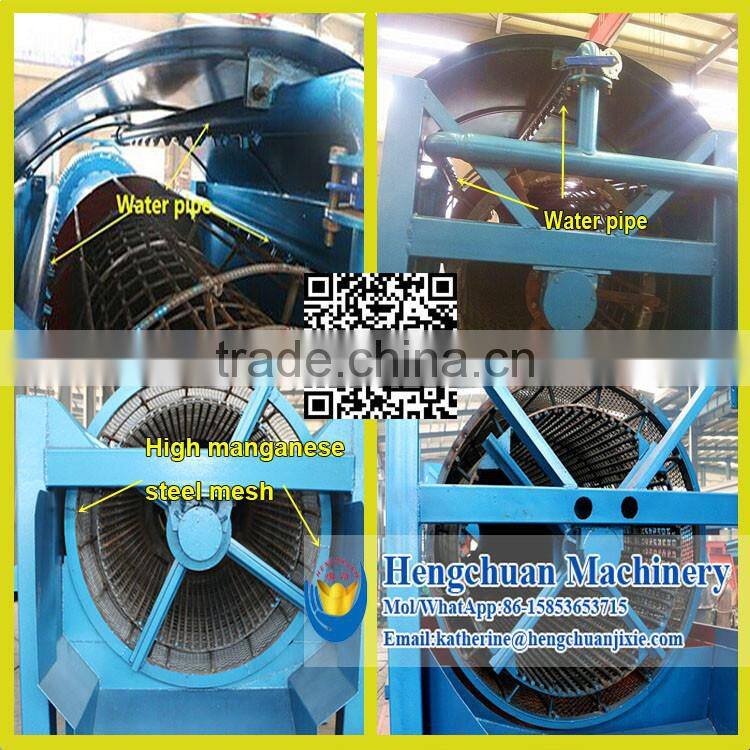

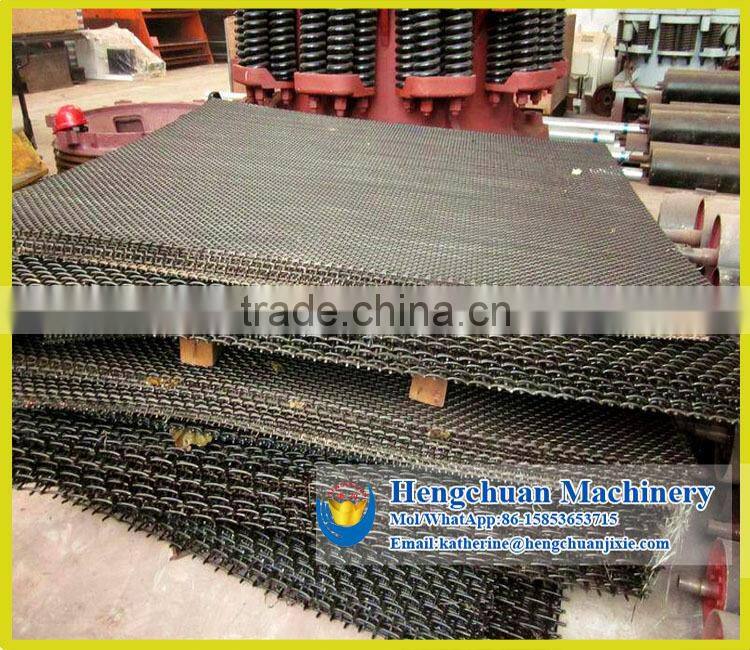

5).Durable wear parts, the screen using high manganese steel woven net , It has large processing capacity, high efficiency , long service life , and easy to replace, no clogging.
2. Specification of China New Product for 2016 Skid Type 10 Tons Per Hour Small Gold Trommel/Trommel Screener for Sale
No. | Model | HCMT-10 |
1. | General Parameter |
|
| Machine Size | 3400*1400*2000mm |
Screen Size | 600*1500mm | |
Processing Capacity | 10TPM | |
Main Power | Driven by 20kw Changchai Generator | |
2. | Trommel Screen |
|
| size | 600*1500mm |
3. | Feeder Hopper |
|
| size | 1300*1500mm |
Power | 4kw | |
4. | Water System |
|
| water flow | 40m³/h |
power | 5.5kw | |
driven type | by V belt | |
water pipeline | rubber hose 30m length,hose screen include | |
5. | Foundation Struture and Support Frame | All mounted on heavy duty steel skid. |
6. | Fixed Sluice with Carpet | 400*4000mm |
| Quantity | 2pcs |

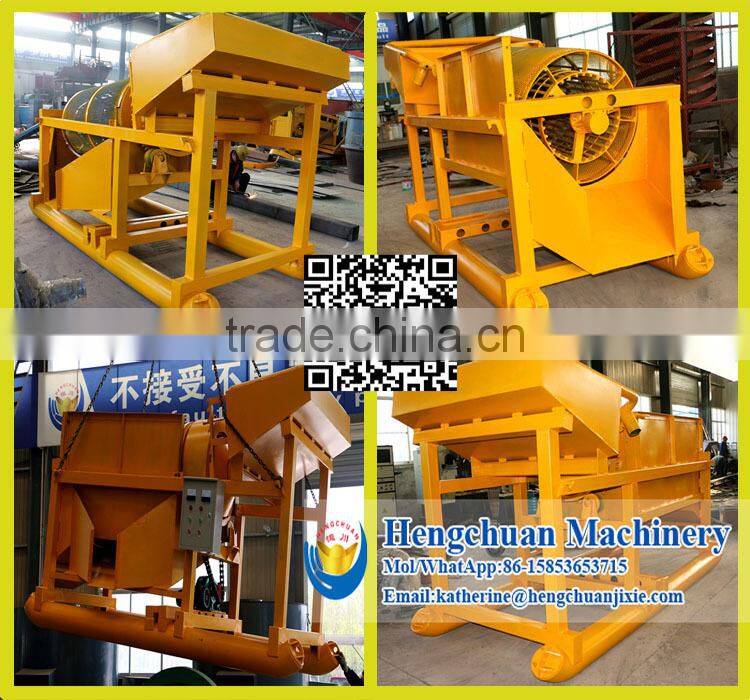

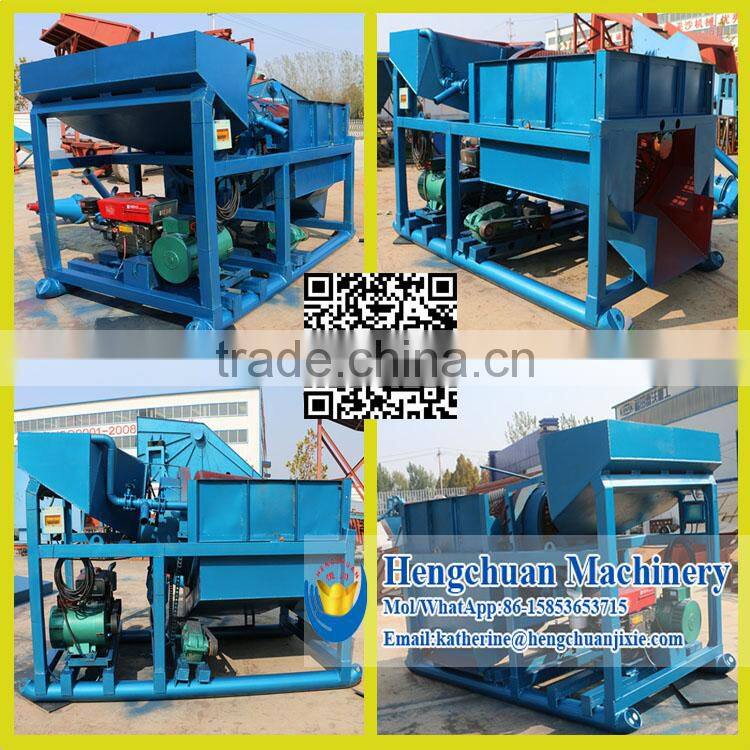

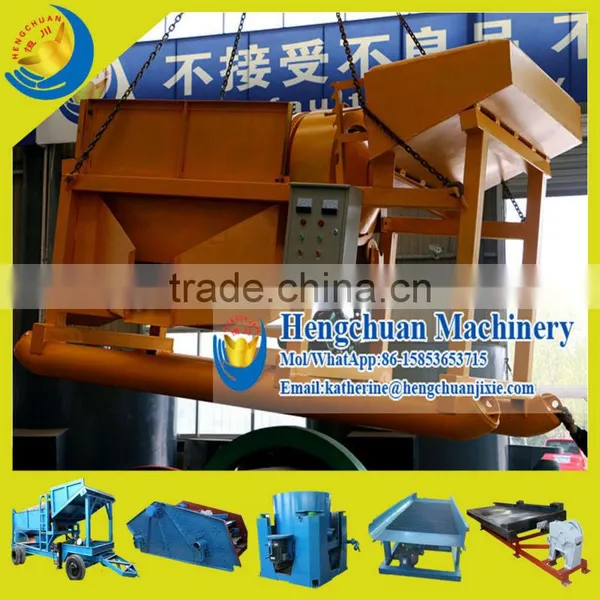

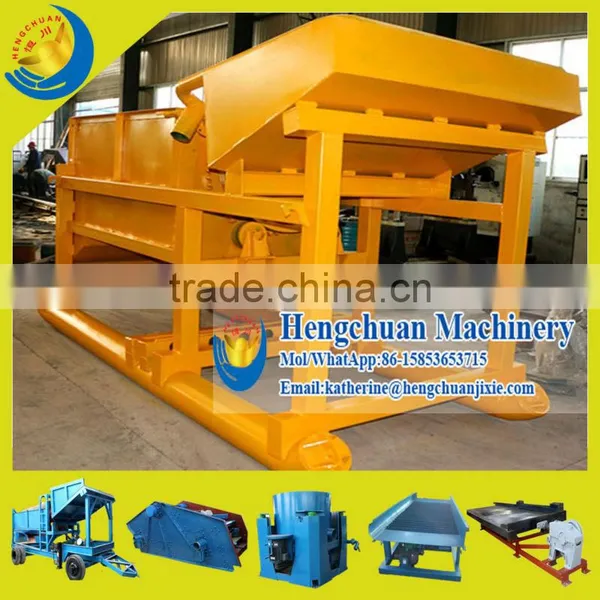

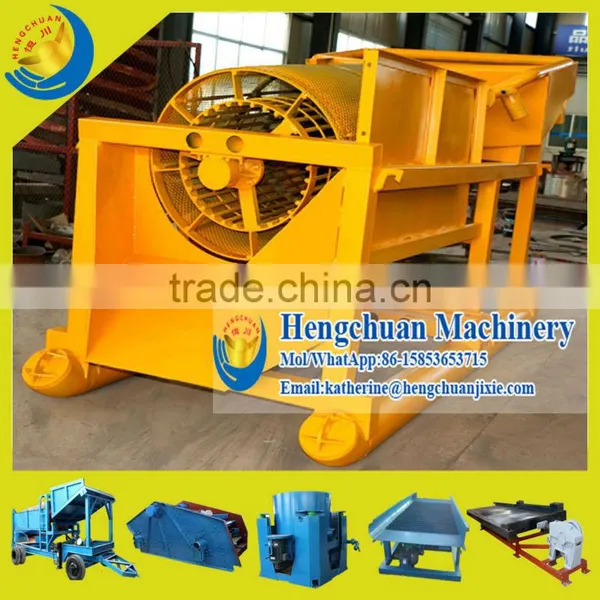

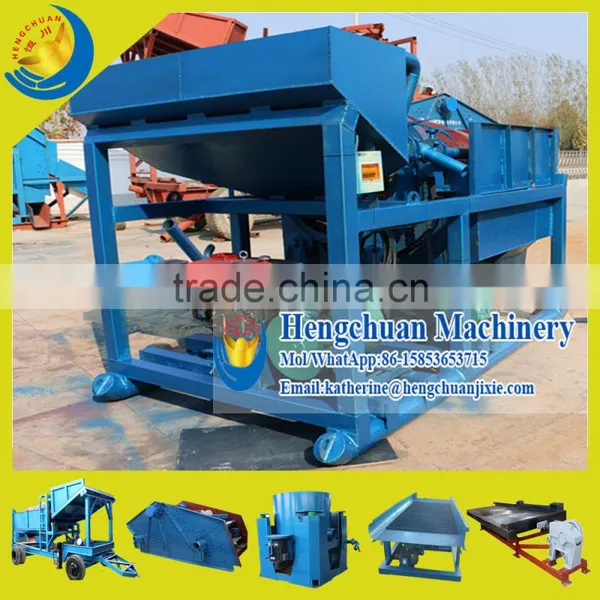

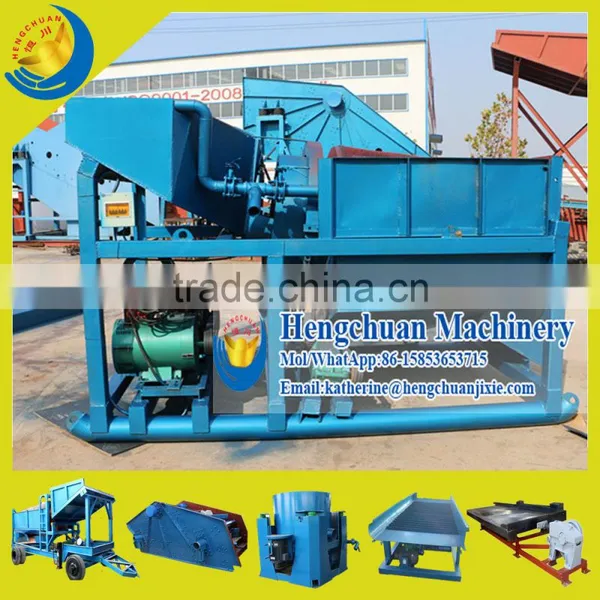

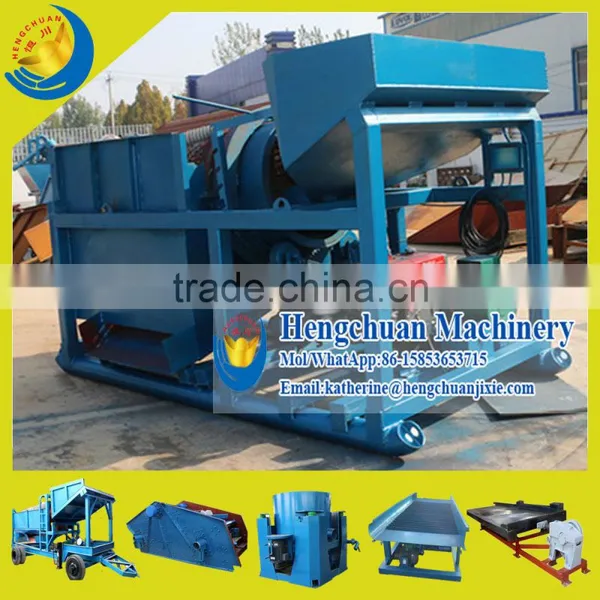

3. China New Product for 2016 Skid Type 10 Tons Per Hour Small Gold Trommel/Trommel Screener for Sale Products Show
1).HC Movable Gold Prospecting Equipment is compact enough to travel, tough and reliable enough to be considered a production machine & easy to maintain!
2). It is easily portable and was designed and manufactured for a small production or pilot processing operation, particularly for the gold mining industry.
3). This facilitates an easy set up in only a matter of minutes with this truly portable production machine.
4). If you are an independent or small scale operation, this is an ideal solution for your production needs.
5). If you have scaled up operations, it is also an ideal machine for use as a pilot plant for testing prior to applying for time consuming permits and moving larger equipment onto a prospective property.
