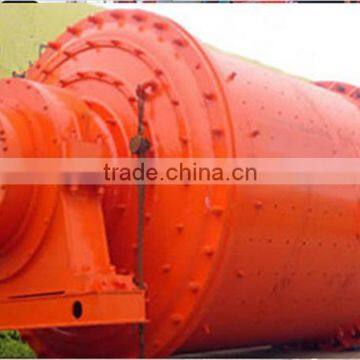

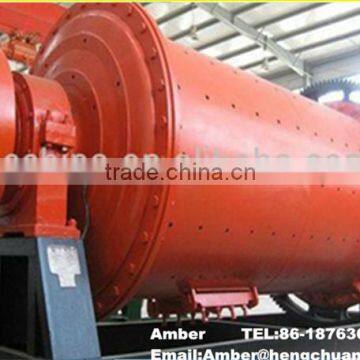

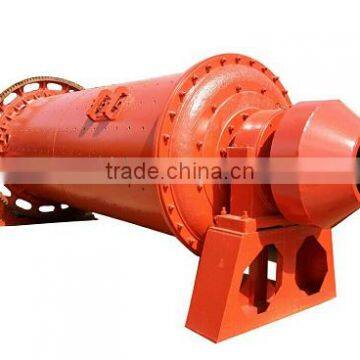

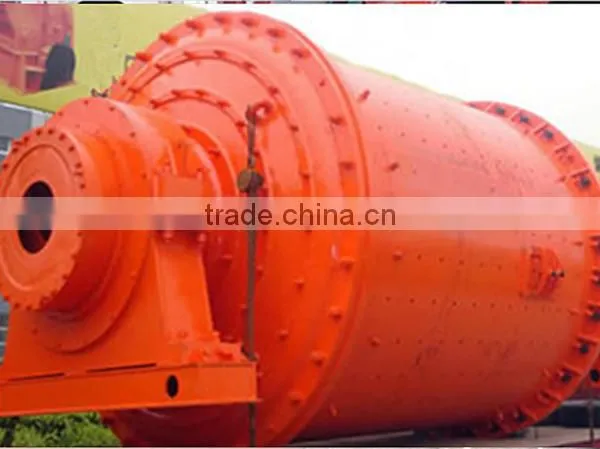

Hot Sale & Energy Saving Ball Mill Machine
- 4 Set / Sets per Month
- Qingdao Port
- T/T
You May Like
Product Details
Condition | New | Type | Ball Mill | |
Motor Type | AC Motor | Power(W) | 30kw | |
Capacity(t/h) | 1-2tons per hour | Place of Origin | Shandong, China | |
Brand Name | HENGCHUAN | Model Number | HCBM900*3000 | |
Dimension(L*W*H) | 5500*1800*1400mm | Weight | 7.8t | |
Certification | ISO9001:2008 | Warranty | one year | |
container, large model ball mill transported as bulk cargo Spare parts in wooden case
Product Description

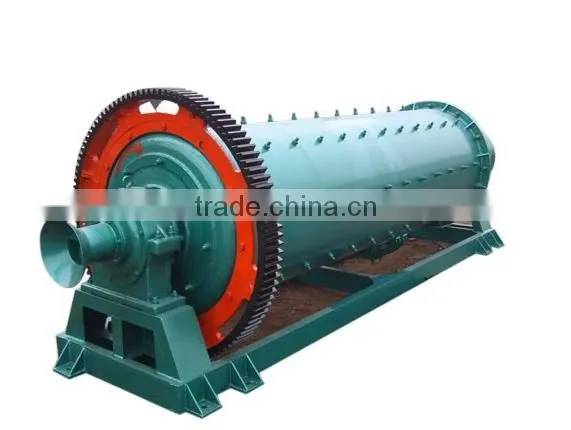

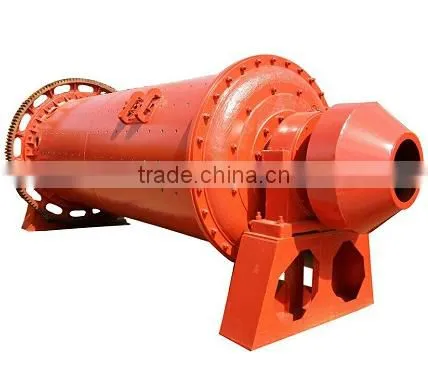

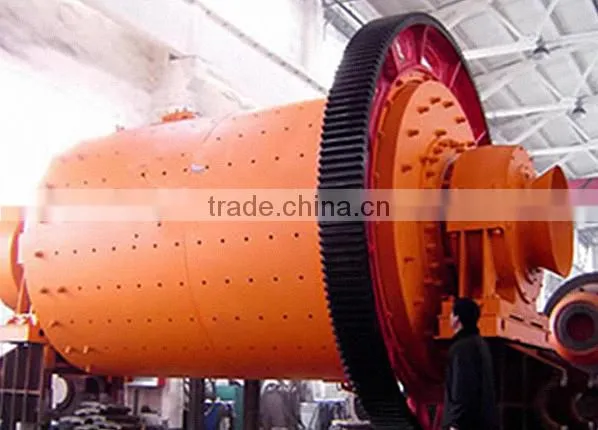

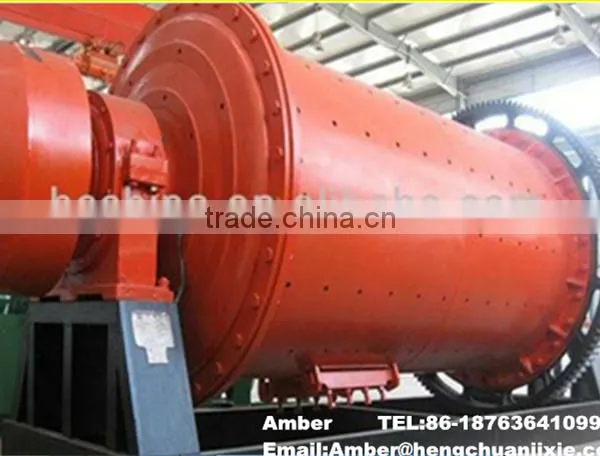

Hot Sale & Energy Saving Ball Mill Machine
1.Application of Hot Sale & Energy Saving Ball Mill Machine
Energy Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
2.Feature of Hot Sale & Energy Saving Ball Mill Machine
1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
3.Working Principle of Hot Sale & Energy Saving Ball Mill Machine

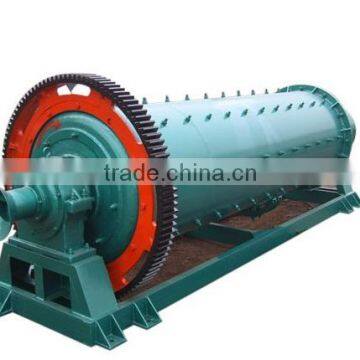

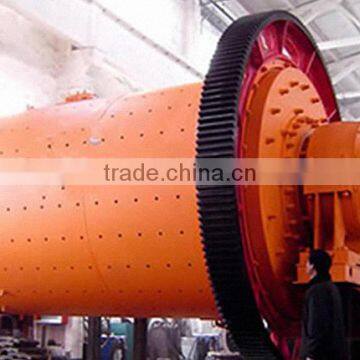

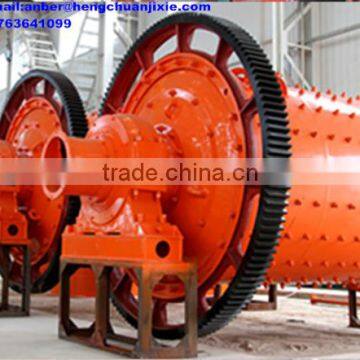

The Energ Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Model | Speed (r/min) | Max. weight of balls (t) | Input size (mm) | Output size (mm) |
Φ900×1800 | 37 | 1.8 | ≤15 | 0.075-0.89 |
Φ900×2100 | 37 | 2.3 | ≤15 | 0.075-0.4 |
Φ900×3000 | 35 | 3.85 | ≤25 | 0.075-0.4 |
Φ1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.4 |
Φ1200×2800 | 35 | 5.4 | ≤25 | 0.075-0.4 |
Φ1200×4500 | 35 | 8.6 | ≤25 | 0.075-0.4 |
Φ1500×3000 | 29 | 9 | ≤25 | 0.047-0.4 |
Φ1500×3500 | 29 | 10.5 | ≤25 | 0.047-0.4 |
Φ1500×4500 | 29 | 13.5 | ≤25 | 0.047-0.4 |
Φ1500×5700 | 29 | 17 | ≤25 | 0.047-0.4 |
Φ1830×3000 | 24 | 13.5 | ≤25 | 0.047-0.4 |
Φ1830×3600 | 24 | 14 | ≤25 | 0.047-0.4 |
Φ1830×4500 | 24 | 20 | ≤25 | 0.047-0.4 |
Φ1830×7000 | 24 | 31.5 | ≤25 | 0.047-0.4 |
Φ2100×3000 | 22 | 18 | ≤25 | 0.047-0.4 |
Φ2100x3600 | 22 | 20 | ≤25 | 0.047-0.4 |
Φ2100×4000 | 22 | 21.5 | ≤25 | 0.047-0.4 |
Φ2200×3600 | 21.7 | 25 | ≤25 | 0.047-0.4 |
Φ2200×7000 | 21.7 | 46 | ≤25 | 0.047-0.4 |
Φ2400×3600 | 21 | 28 | ≤25 | 0.047-0.4 |
Φ2400×4500 | 21 | 35 | ≤25 | 0.047-0.4 |
Φ2700×3600 | 20.7 | 40 | ≤25 | 0.047-0.4 |
Φ2700×4500 | 20.7 | 48 | ≤25 | 0.047-0.4 |
Φ3200×4000 | 18 | 65 | ≤25 | 0.047-0.4 |
4.Detail of Hot Sale & Energy Saving Ball Mill Machine
Packing:container, large model ball mill transported as bulk cargo Spare parts in wooden case
Shipping:Qingdao Port
Pre-sale services: enthusiasm
l We will provide you with the prior plan, process flow design and production equipment in line with your
special
needs.
Sale services: servant
l We will send technicians to you for guiding the equipment installation and commissioning and staff
training.
After-sale services: faithfulness
l We will regularly pay return visit to customers for establishing a long-term and friendly relationship.
Service Commitment
l We provide one-year warranty to make sure your machine work well. We have spare parts of the very
machine in stock
all the time which means the replacements can be sent to you timely

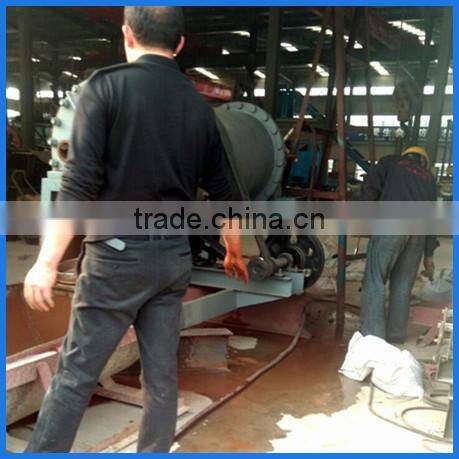

1.Our facyory
2.Our customer
3.Certificater:
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
