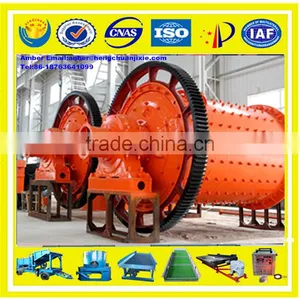

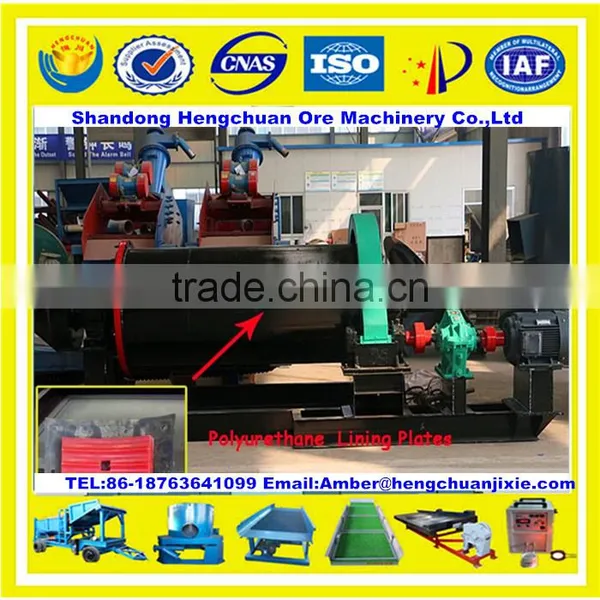

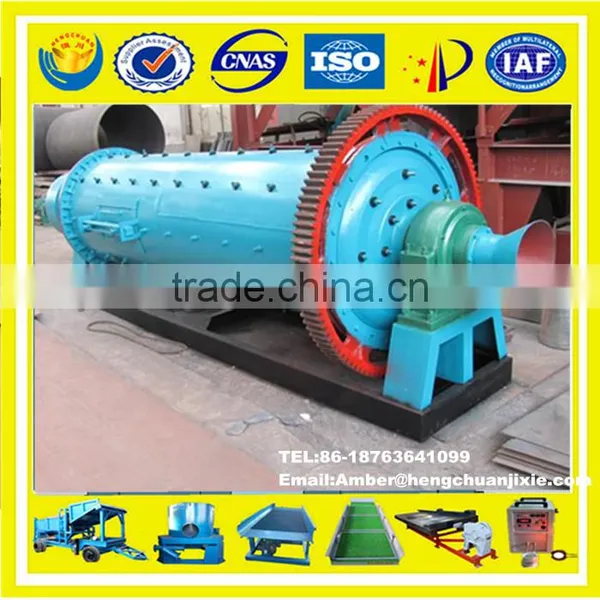

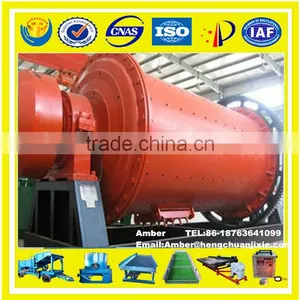

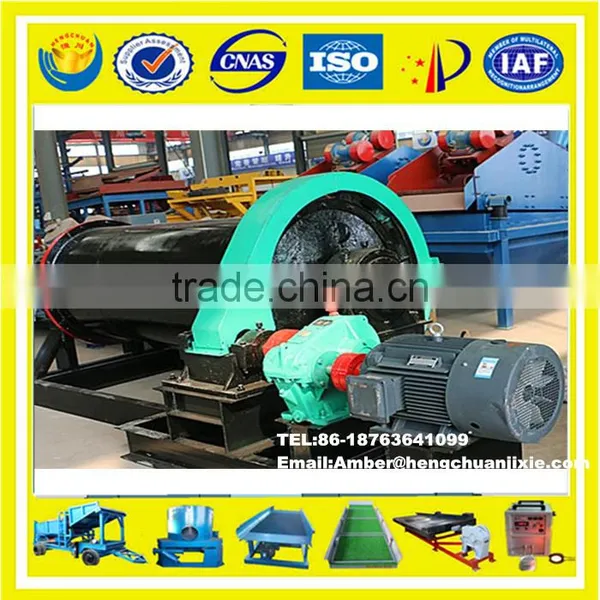

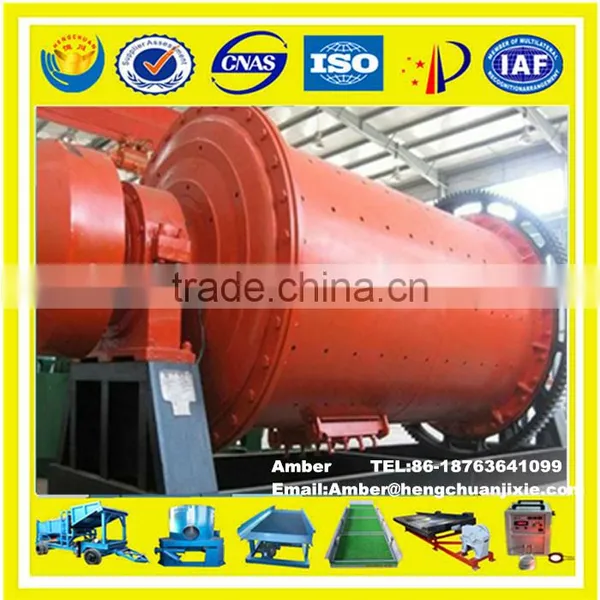

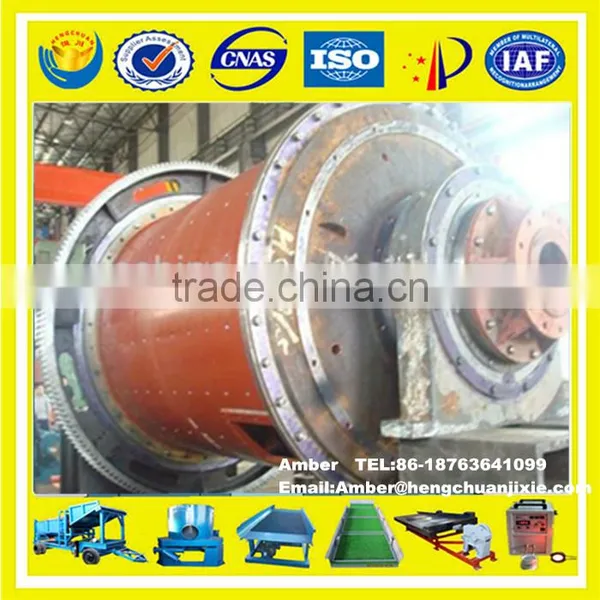

Small Grinding Machine / Ball Mill Fine Powder Grinding Machine For Sale

Name: Small Grinding Machine / Ball Mill Fine Powder Grinding Machine For Sale
Brand: HENGCHUAN
Availability: InStock

FOB Price

US$ 20,000 - 100,000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Ball Mill
Motor Type	AC Motor	Power(W)	30kw
Capacity(t/h)	1-2tons per hour	Place of Origin	Shandong, China
Brand Name	HENGCHUAN	Model Number	HCBM900*3000
Dimension(LWH)	550018001400mm	Weight	7.8t
Certification	ISO9001:2008	Warranty	one year

Packaging Details

container, large model ball mill transported as bulk cargo Spare parts in wooden case

Product Description

Small Grinding Machine / Ball Mill Fine Powder Grinding Machine For Sale

Product Description

1.Application of Ball Mill

Energy Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Ball mill is an important equipment to grind the crushed materials which is widely used in powdermaking

production line including cement, silicate, newtype building material, refractory material, fertilizer, ore

dressing of ferrous metal and nonferrous metal, glass ceramics, etc. Further more, ball mill can grind

various ores and other materials with dry type and wet type.There are two types of ball mill, grate type

and overfall type seprated by different ways of material discharging. Grate type is a type of grinding mill

processes similarly to the sag mill or other mining crushers. Ball Grinding Machine is used to grind or mix

metals or raw materials for further processing. Various materials are placed into the mill drum and rotated

with the minedmaterials that are to be crushed. The ball mill contains materials meant for crushing and

grinding, such as balls of ceramic, smallrocks, or balls made from stainless steel. The internal device of

the ball mill grinds material into powderlike substances, and can rotate continuously for optimal grinding

and refinery production.

2.Feature of Ball Mill

1) Ball mill is an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) Ball mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.

10) Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

3.Working Principle of Ball Mill

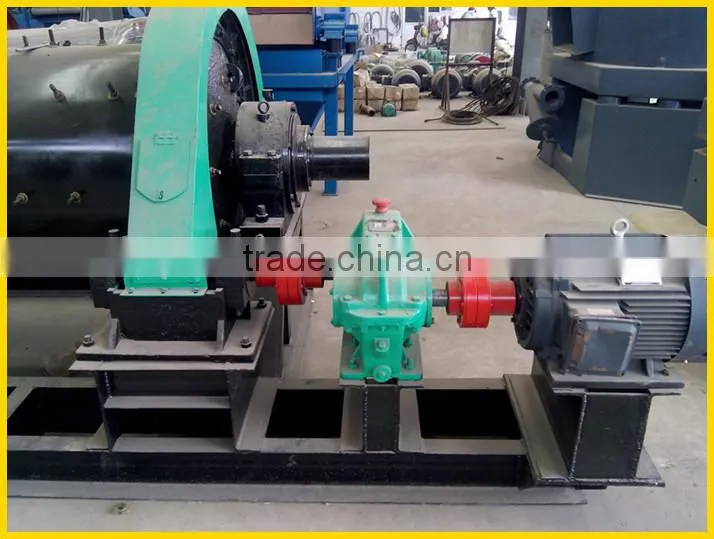

The Energ Saving Ball Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model	Speed (r/min)	Max. weight of balls (t)	Input size (mm)	Output size (mm)
Φ900×1800	37	1.8	≤15	0.075-0.89
Φ900×2100	37	2.3	≤15	0.075-0.4
Φ900×3000	35	3.85	≤25	0.075-0.4
Φ1200×2400	35	4.6	≤25	0.075-0.4
Φ1200×2800	35	5.4	≤25	0.075-0.4
Φ1200×4500	35	8.6	≤25	0.075-0.4
Φ1500×3000	29	9	≤25	0.047-0.4
Φ1500×3500	29	10.5	≤25	0.047-0.4
Φ1500×4500	29	13.5	≤25	0.047-0.4
Φ1500×5700	29	17	≤25	0.047-0.4
Φ1830×3000	24	13.5	≤25	0.047-0.4
Φ1830×3600	24	14	≤25	0.047-0.4
Φ1830×4500	24	20	≤25	0.047-0.4
Φ1830×7000	24	31.5	≤25	0.047-0.4
Φ2100×3000	22	18	≤25	0.047-0.4
Φ2100x3600	22	20	≤25	0.047-0.4
Φ2100×4000	22	21.5	≤25	0.047-0.4
Φ2200×3600	21.7	25	≤25	0.047-0.4
Φ2200×7000	21.7	46	≤25	0.047-0.4
Φ2400×3600	21	28	≤25	0.047-0.4
Φ2400×4500	21	35	≤25	0.047-0.4
Φ2700×3600	20.7	40	≤25	0.047-0.4
Φ2700×4500	20.7	48	≤25	0.047-0.4
Φ3200×4000	18	65	≤25	0.047-0.4

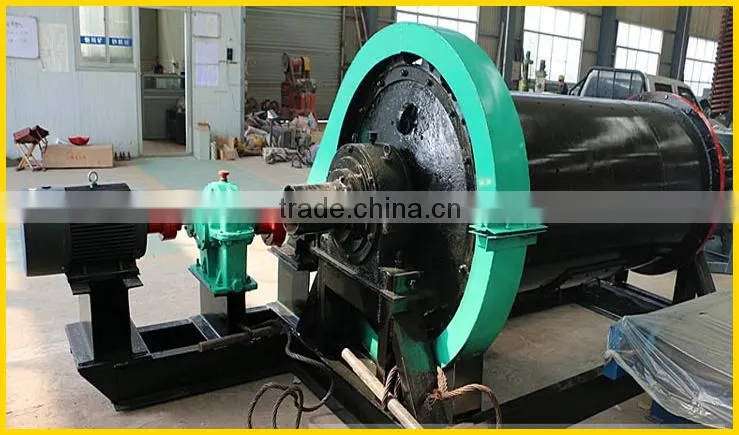

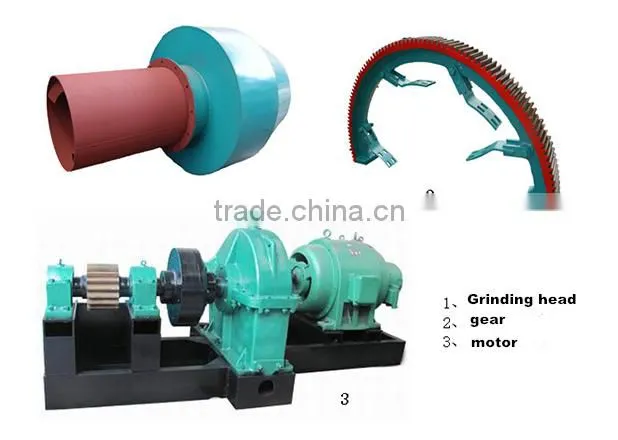

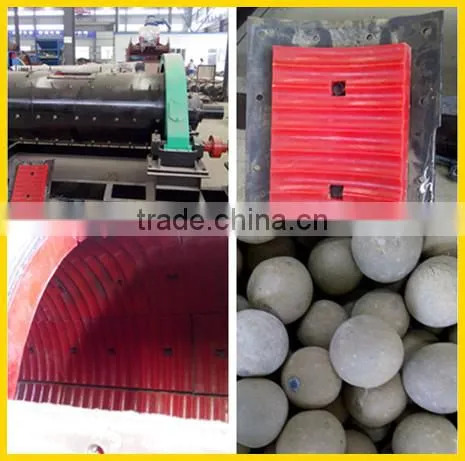

4.Detail of Ball Mill

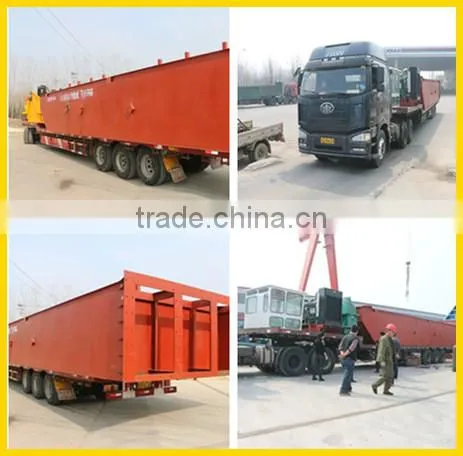

Packaging & Shipping

Packing:container, large model ball mill transported as bulk cargo Spare parts in wooden case

Shipping:Qingdao Port

Our Services

Pre-sale services: enthusiasm

l We will provide you with the prior plan, process flow design and production equipment in line with your

special

needs.

Sale services: servant

l We will send technicians to you for guiding the equipment installation and commissioning and staff

training.

After-sale services: faithfulness

l We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

Service Commitment

l We provide one-year warranty to make sure your machine work well. We have spare parts of the very

machine in stock

all the time which means the replacements can be sent to you timely

Company Profile

Qingzhou Hengchuan Ore Machinery Co., Ltd.

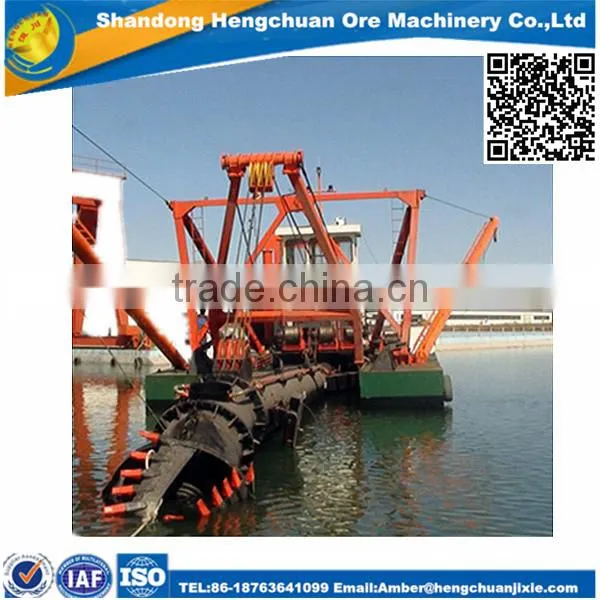

Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc. Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field. Development History: A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS. B).Cooperated with Shandong Gold Group and doubled the sales scale. C).Developed STL-120 gold centrifugal concentrator in 2008. D).Mature dredger products in 2009. E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling. F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015. Enterprise Spirit -eternal integrity Enterprise Purpose-to consistently exceed customers' expectations Core Values-innovation and leading the future Service Concept- to create value for customers Development Concept - Quality is life; innovation is the driving force Corporate Vision- the world leading supplier of magnetic separation equipment
