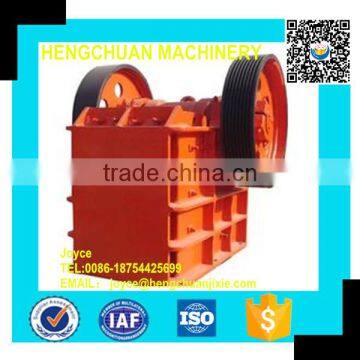

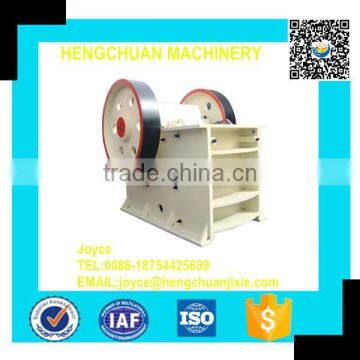

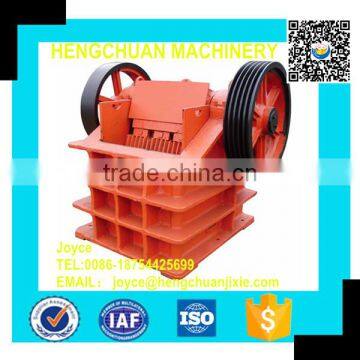

Hot-selling Durable Jaw Crusher
product description:
Jaw crusher is widely used in mining, smelting, building material, highway, railway, water conservancy and otherindustries,breaking strength not exceeding 320 MPa Materials. The company produces jaw crusher with advanced technology, long life, reliable operation, easy maintenance and other advantages. Parts selection most high-quality materials,enhanced resistance to stress and wear parts, movable jaw with high-quality cast steel structure, the eccentric shaft is forged blanks plus
Work, the equipment efficient and durable. Using advanced technology, the use of digital processing equipment parts, so that the internal structural precision, deep cavity broken no dead ends, was Material blocking material does not occur in the crushing cavity, improve production efficiency. Nesting population adjustment range, increase the device's flexibility to meet with.User variety of processing requirements. Improving machine performance, while the overall structure of the device is simple and efficient, crushing capacity enhancement, simple operation, so everyday.Maintenance work faster and more convenient, reducing maintenance downtime. And the device reasonable structure, small footprint. Designed in accordance with international environmental standards.When working with low noise, dust removal equipment, effectively protect the surrounding environment and reduce pollution.
Main technical parameters:
| Type |
Feed Opening (mm) |
Max Feeding Size (mm) |
Discharge Opening (mm) |
Capacity (t/h) |
Rotation (r/min) |
Motor (kw) |
Weight (t) |
Dimensions L*W*H (mm)
|
| PE-150*250 | 150*250 |
125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
| PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
| PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
| PE-500*750 | 50*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600*750 | 600*750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070*2000*1920 |
| PE-600*900 | 600*900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190*2206*2300 |
| PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660*2430*2800 |
| PE-800*1060 | 800*1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
| PE-830*1060 | 830*1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740*2430*2800 |
| PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
| PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870*2420*2940 |
| PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
| PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
The Plant With Crushers
Roller Crusher For Sale
http://preview.china.cn/product/60449895959-801661491/Roller_Crusher_For_Sale.html
Hammer Crusher For Sale
http://preview.china.cn/product/60450242108-801661491/Hammer_Crusher_For_Sale.html
Package and transport
Customer's visit
Do some experiment
All Kind Of Certificate
About our factory
Shangdong Hengchuan Ore Machinery Co.,Ltd, established in 2002,is a leading ore machinery manufacturer in China.
Company covers area of 20000 square meters,have 6 engineers,20 technicians and more than a stsff of 100 people.
Our main products: Placer Gold Mining Machine,Magnetic Separators,Sand Mining and Washing Machine,Mining Dredgers,Sand Barges,Particular Vessels,ect.They have been sold not only in somestic market,but export to more than thirty foreign countries,likePhilippiness,Malaysia,Pakistan,NorthKorea,Mongolia,Cameroon,SouthAfrica,Ghana,Brazil,ect.
