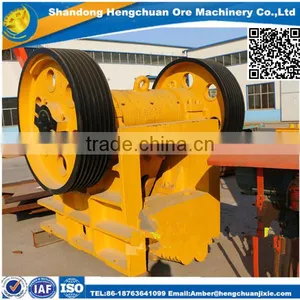

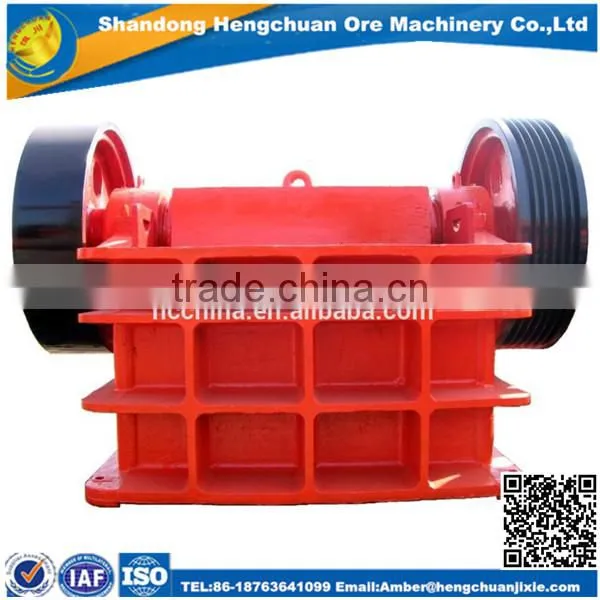

Latest Technology Stone Crusher /Small Scle Stone Crusher /Jaw Crusher

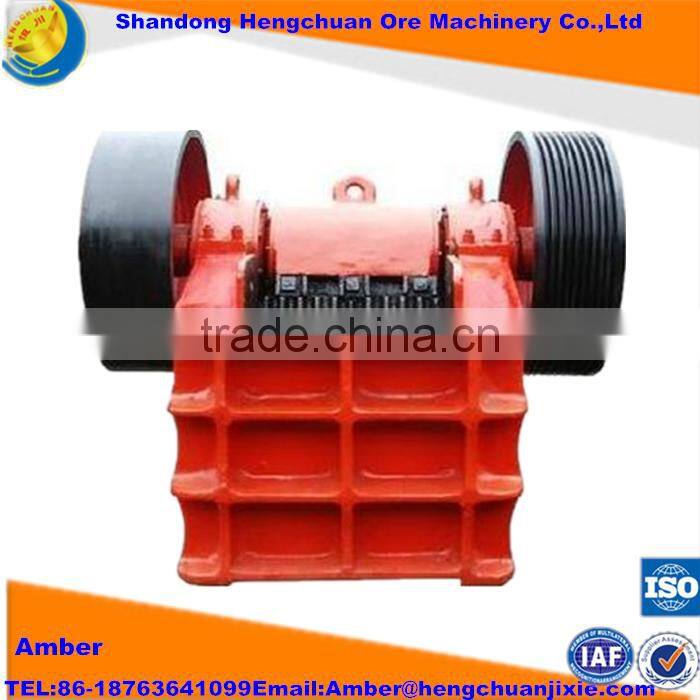

1.Description of Jaw Crusher
Latest Technology Stone Crusher /Small Scle Stone Crusher /Jaw Crusher,widly used jaw crusher machine for iron ore ,Jaw crusher (jaw-breaking for short, PE new jaw-breaking), widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry and many other departments. Jaw crusher can crush different kinds of materials which the compressive strength is not more than 320MPa, is the first choice of primary crushing equipment.
2.Features of Jaw Crusher
1)High capacity
2)High reliability
3)Adjustable for easy wear parts
4)Over-loading protection
5)Simple structure and easy to operate
6)Easy replacement of wear and spare parts
7)Energy-saving equipment: Stand-alone energy-saving 15% ~ 30%, the system energy-saving more than doubled
8)low noise and less dust

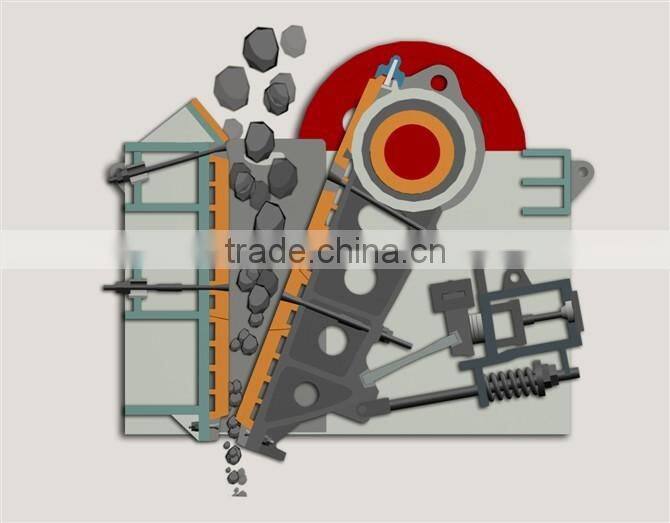

3.Working Principle of Stone Crushing Equipment
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
4.Specification of Jaw Crusher
ype | Feed Opening (mm) | Max Feeding Size (mm) | Discharge Opening (mm) | Capacity (t/h) | Rotation (r/min) | Motor (kw) | Weight (t) | Dimensions L*W*H (mm) |
PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
PE-600*750 | 600*750 | 500 | 150-200 | 50-180 | 275 | 55 | 15.8 | 2070*2000*1920 |
PE-600*900 | 600*900 | 500 | 65-160 | 80-180 | 250 | 55 | 17 | 2190*2206*2300 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660*2430*2800 |
PE-800*1060 | 800*1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
PE-830*1060 | 830*1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740*2430*2800 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 |
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |

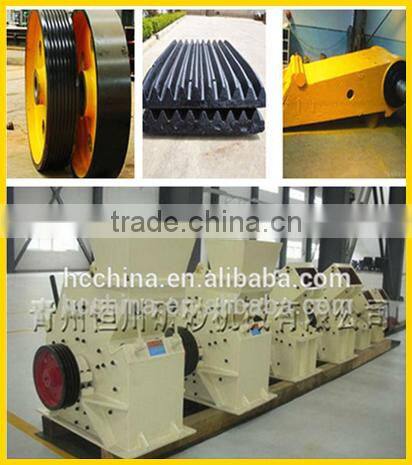

5.Detail of Jaw Crusher

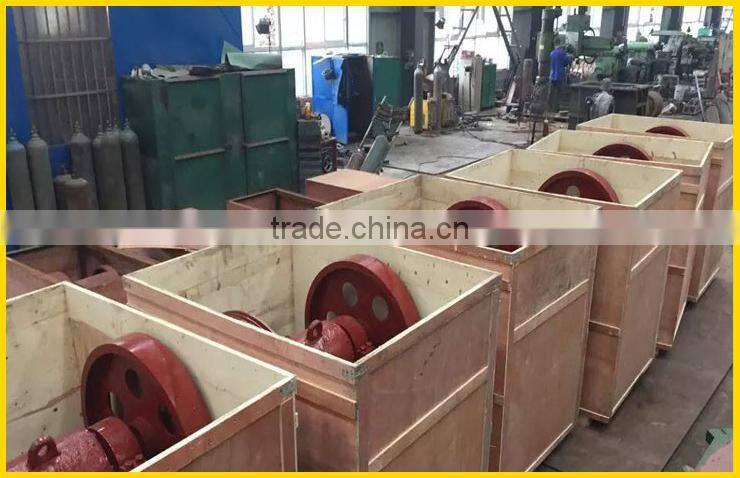

Packing: standard container, spare parts will be packed in wooden cases of Latest Technology Stone Crusher /Small Scle Stone Crusher /Jaw Crusher
Shipping port:Qingdao
Stone Crushing Equipment
We provide 12months quality warranty to make sure your gold centrifugal machine well runs consistently.
Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a. Pre-check and accept products before delivery
b. Send technicians to the jobsite for guiding the installation and adjustment
c. Training operators and finishing the check to satisfy your requirement
After-sale services:
a. Common problem can be solved through web in 24 hours,comple problem can be reacted immediately in 24 hours and solved as soon as possible
b. To establish long-term friendship, we will regulary contact with our customers

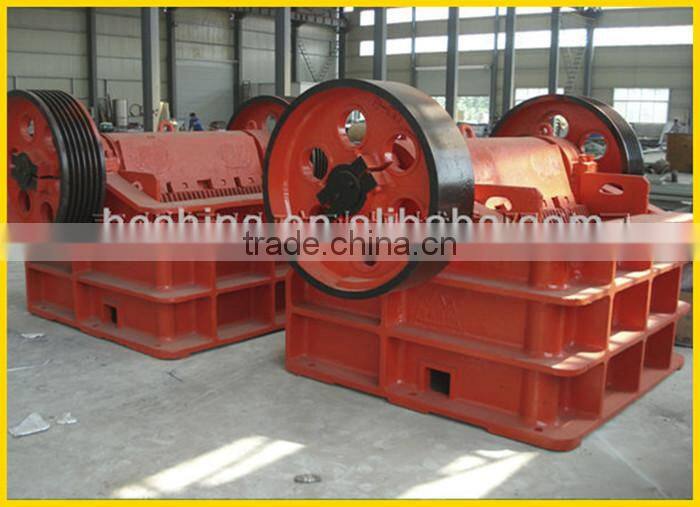

1.Our factory
2.Our customer
3.Certification:
1. What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
* What minerals are you separating?
* What's the maximum size of your raw minerals?
* How much capacity do you need per hour for your project?
Note: If Pics of the mineral & Chemical components report of your minerals are available, pls consider to send us for evaluation purposes.
2. Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
3. Can we vist your company?
Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Gaoxuan equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Gaoxuan able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need. we had already build many mining projects in China & Overseas. Gaoxuan can set a complete processing line just as you require, the main equipments will be manufactured by us and some other supporting equipments ( like generator ) will be supplied by our cooperating facotries under our supervision.
