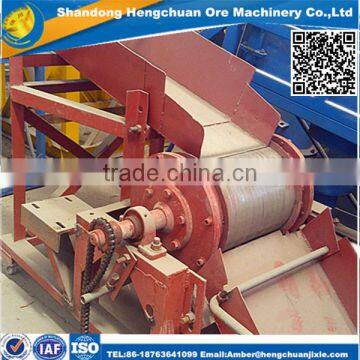

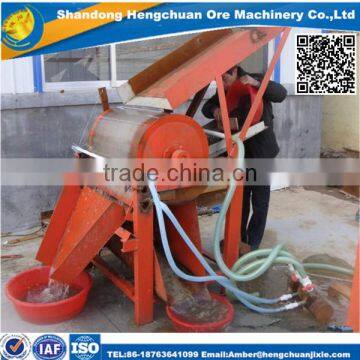

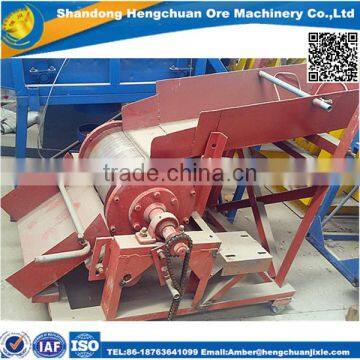

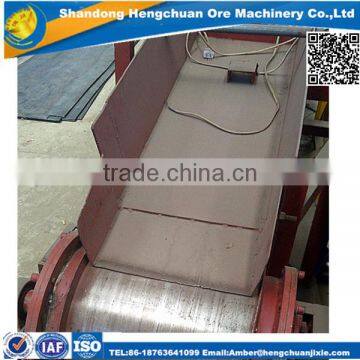

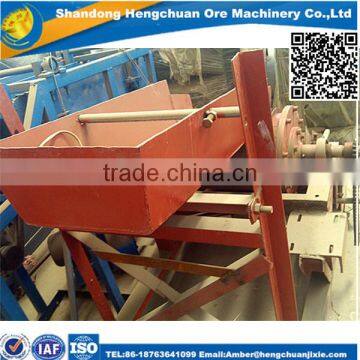

Lab Equipments Low Cost Fine Magnetic Separator
1. Introduction of Fine Magnetic Separator:
Fine Magnetic Separator is generally a low cost method of recovery, unless high intensity separators are required. The electro-magnetic high intensity separators that produce 20, 000 gauss, tend to be expensive. However, the rare
earth
magnetic separators are relatively inexpensive and can produce magnetic fields around 6, 000 gauss.
So, whenlooking for a process to recover valuable minerals, magnetic separation should not be
overlooked, if some of the material is magnetic or PARA-magnetic.
2.Principle of Fine Magnetic Separator:
3.Major Technical Parameters of Fine Magnetic Separator:
| Model | Roller size (diameter length mT) | Roller surface magnetic induction density (mT) | Processing capacity | Motor power kw | Roller rotating speed r/min | Total weight kg | |||
| Pole geometric center value | Sweeping and separarting area average value | Highest magnetic induction density | t/h | m3/h | |||||
| CTB-718 | 750*1800 | 120 | 155 | 180 | 20~45 | 72 | 3 | 35 | 2100 |
| CTB-918 | 900*1800 | 148 | 165 | 190 | 25~55 | 90 | 4 | 28 | 2900 |
| CTB-924 | 900*2400 | 148 | 165 | 190 | 35~70 | 110 | 4 | 28 | 3600 |
| CTB-1018 | 1050*1800 | 148 | 165 | 190 | 40~75 | 120 | 5.5 | 22 | 4000 |
| CTB-1021 | 1050*2100 | 160 | 240 | 180 | 45~88 | 140 | 5.5 | 22 | 4500 |
| CTB-1024 | 1050*2400 | 148 | 165 | 190 | 52~100 | 160 | 5.5 | 22 | 5000 |
| CTB-1030 | 1050*3000 | 160 | 240 | 280 | 65~125 | 200 | 7.5 | 22 | 6200 |
| CTB-1218 | 1200*1800 | 160 | 240 | 240 | 47~90 | 140 | 5.5 | 19 | 5800 |
| CTB-1224 | 1200*2400 | 148 | 165 | 165 | 82~120 | 192 | 7.5 | 19 | 6200 |
| CTB-1230 | 1200*3000 | 148 | 165 | 165 | 80~150 | 240 | 7.5 | 19 | 7200 |
| CTB-1530 | 1500*3000 | 180 | 240 | 240 | 90~170 | 270 | 11 | 14 | 8900 |
| CTB-1540 | 1500*4000 | 180 | 240 | 240 | 115~220 | 350 | 11 | 14 | 9900 |
Packing:By container for Lab Equipments Low Cost Fine Magnetic Separator
Shipping:Qingdao Port
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.. Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support
1.Our Factory
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.
2.Our customer
Our main market is domestic,Africa and Southeast Asia,such asCameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
So much customers interested in our Cutter suction dredger and have buy it.
3.certifications
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
