Brand new gold drum scrubber trommel

Low price  small scale Gold Trommel made in China

A:Why us?

1.We are Alibaba Assessed 7 years Gold Supplier.

2.We are a factory manufacturing mining dredger especially cutter suction dredger,best production capability ,best quality control, Best Service .

3.We supply one stop service of mining dredger service from inspectiong to installing and training.

4.100% QC inspection Before Shippment.

5.Our dredger can be classified by the ship classification society.

B:Company profile?

 Shandong Hengchuan   Ore Machinery Co. , Ltd, established in 2002, is leading ore machinery in china. Company covers area of 20000 square meters.

Our main products :Placer Gold Mining Machine ,Magnetic Separator ,Sand Mining and Washing Machine, Mining Dredgers ,Sand Barges, Particular Vessels, etc. They have been sold not in domestic market, but export to more than thirty foreign countries, like Philippines, Malaysia, North Korea   , Mongolia, Cameroon, South Africa, Ghana, Brazil, etc

INTERGRATING THE GLOABLE TECHNOLOGY,SERVE THE WORLD CUSTOMERS

 C:Advantages of Low price  small scale Gold Trommel made in China:

Clay is every miner's enemy no matter what type machine you use. Clay will cut production down significantly, and results will vary depending on your clay content.

 D:Working principly of Low price  small scale Gold Trommel made in China :

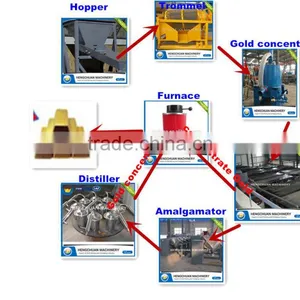

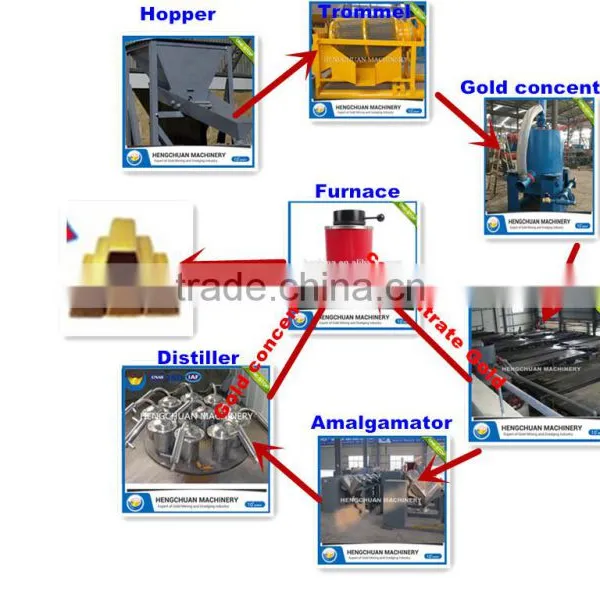

 Excavator Load Raw Material to Plant Hopper Feeder Bin with grizzly—>Rotary Scrubber—>Trommel Screen—>Pulsating Sluice —>Concentrator—>Shaking Table—> Amalgamator —> Mercury Distiller—>Gold Furnace

1). Feeding material by excavator to Grizzl Feeder, The grizzly on the hopper will first separate the big stones.

2). Then the wanted raw ore fed into the Trommel Scrubber.
Our specially designed Gold Trommel Scrubber Washing Plant consists of Rotary Scrubber for washing clay and Trommel Screen for sieving different size of ore.

Material is scrubbed and clays and silts dispersed into slurry.The clay and ore will be separated.

The Trommel Screen will further separate different size ores, the ore bigger than screen mesh can be separated and dischaged out by the conveyor.

Can be make mobile type or stationary type.

The length &diameter of drum unit, screen mesh, layer quantity of screen can be customized.

3). The small ores will go to the Auto Washing Belt.

This Auto Washing Belt is variable frequency speed control system. Mineral travels against the running direction of auto washing belt ,so can keep the ore loose. The gold will sink down in the bottom,lighter particles will flow away by water.

4). Tailings from Auto Washing Belt are directed to the Gold Centrifugal Concentrator,where fine gold will be recovered.

 5) Collect the concentration from Centrifuge and Sluice Machine,Use shaking table for further concentrating.

6). If need pure gold particles or dust,then need equip the Amalgamator and Mercury Distiller removal of impurities after shaking table.

7). If need melt the gold dust to gold bar,then can equip with a Gold Melting Furnace.

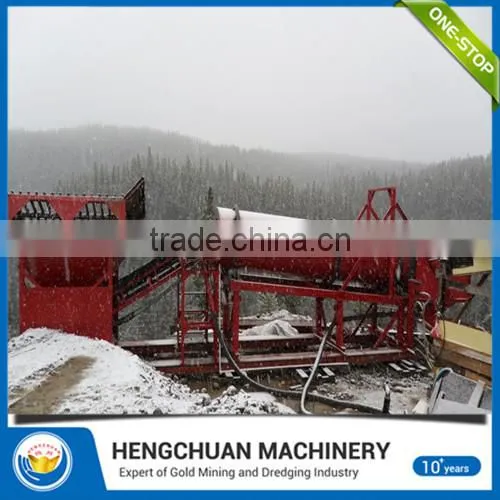

E:Working site of Low price  small scale Gold Trommel made in China :

  F:Certification of Low price  small scale Gold Trommel made in Chinal :

G:Customers of Low price  small scale Gold Trommel made in China:

H:Shipping and Payments terms of Low price  small scale Gold Trommel made in China :

 I:FAQ:

In order to give you a responsible quotation, you can inform us the following information

1.What type minerals is your mining?

2.What's the maximum size (?mm)of the raw ore?

3. How much handling capacity(ton/hour) for the project?

4. Provide us a mineral & Chemical components analysis report if you have
