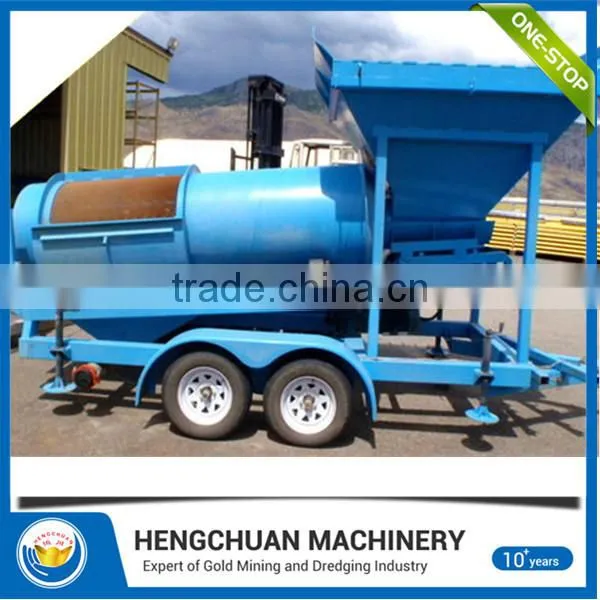

Best Selling Gold Dust Separation Machine

Name: Best Selling Gold Dust Separation Machine
Brand: HENGCHUAN
Availability: InStock

FOB Price

US$ 4,000 - 15,000 / Set

1 Set(Min. Order)

Port QINGDAO PORT
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gravity Separator
Production Capacity	90%	Place of Origin	Shandong, China
Brand Name	HENGCHUAN	Model Number	HC-150
Voltage	220V/380V	Power(W)	45kw
Dimension(LWH)	10m2m2.4m,can be customized	Weight	1100kg
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

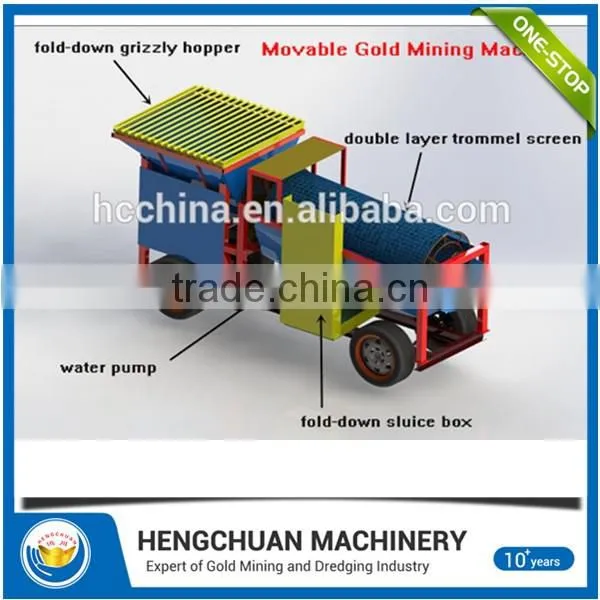

Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

Product Description

1.Short introduction of Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

Gold washing trommel is widely used in alluvial gold, placer gold, gold sand washing plant. we use this trommel screen to separate the gold sand to different size, then different size material go to the next step of concentration. gold jigging machine, gold centrifugal, gold sluice box, shaking table are used after separating from gold trommel screen. this trommel screen is very popular is Africa and south America, it can be mobile, suitable for small, middle, and large scale alluvial mining plant.

2.Features of Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

1.Good quality guaranteed. Every step of the producing is strictly supervised. Certified by ISO9001.
2. Portable. With four wheels and can be dragged by forklift or pick-up and move around easily.
3. Large scale processing capacity, range from one ton per hour to 400 tons per hour with 5 models.
4. Good after sales service. Overseas service for installation and debugging and problem consult.
5. Customized. Can be produced according to customers' requirement, such as the color and so on.

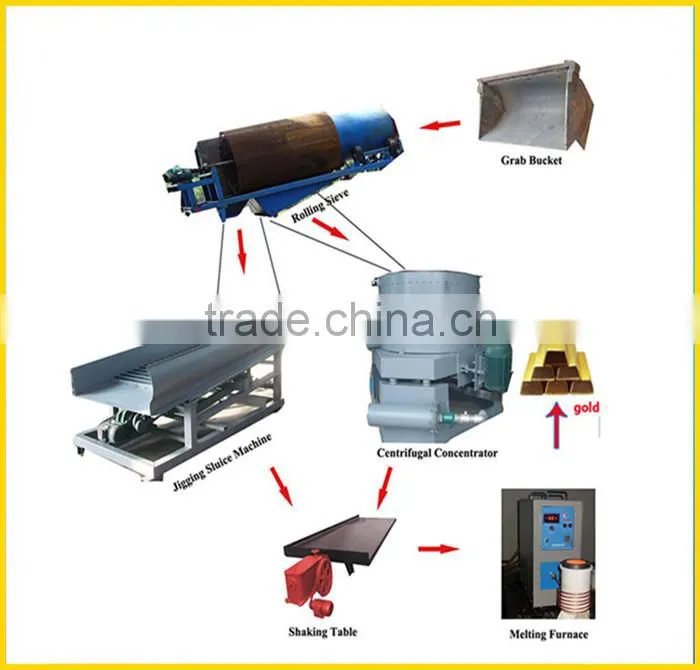

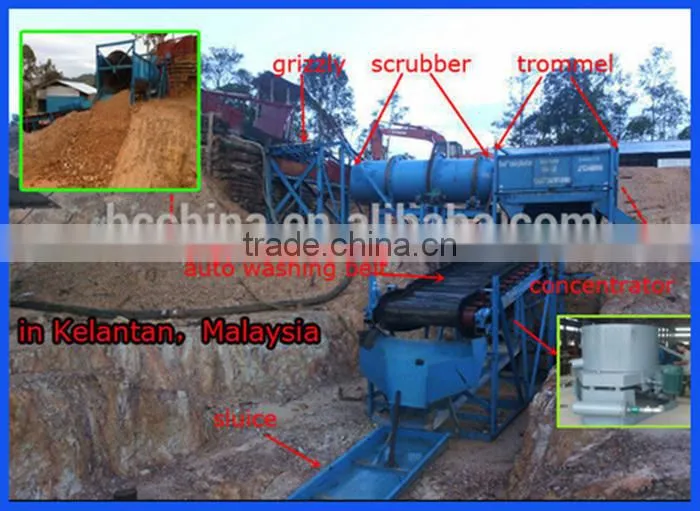

3.Processing diagram of Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

-Raw materials feeding by excavator
Raw materials are fed via excavator from the feeding hopper of the gold trommel, there is strong water pressure of pipe equipped in the large hopper

-Washing and classifying of the raw materials
The raw materials will be washed and classified by the rotation of gold trommel, there is water pipe at one side of the trommel drum or inside. The gold dust will become slurry state and flows to the sluice box. Larger gravels will come to the end of gold trommel, which can be sent away by belt conveyor.

-Collection of rough gold dust
The gold dust is heavier than soil and sands due to the greater specific gravity, which will stay on the plastic mat in the sluice box, while lighter materials will flow away. When the above process goes for a certain time, the rough gold dust can be collected in the plastic mat. Thus the process is finished.

Deya exported many gold wash plants in the past two years, typical countries include Papua New Guniea, Tajikistan, Sudan, Tanzania, Zambia, Zimbabwe, Ghana, Mali, Boliva, etc.

Capacity from 10 tons to 300 tons per hour, complete plant may include the following equipment, grizzly, belt conveyor, trommel screen, water pump, diesel generator, centrifugal concentrator, sluice chute, jigger machine, shaking table, etc.

4.Specification of Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

No.	Items	Descriptions
1	Main Characteristics
	(1). Machine Size	440014002000mm
	(2). Screen Size	1000*2000mm
	(3). Processing Capacity	20Tons per hour
2	Feedeer Hopper
2	Size	1300*1500mm
3.	Trommel Screen	2.3 m
	(1). Size	1000*2000mm
	(2). Motor for drum	4.0 kw
	(3). Fistly Layer Size of the Drum	15mm
	(3). Second Layer Size of the Drum	6mm
4.	Water System
	(1). Type	Slurry Pump
	(2). Water Flow	80 cbm per hour
	(3). Head	22m
	(4). Motor	7.5kw
	(5). Driven Type	V belt
	(6). Water Pipeline	Rubber hose 40m length,hose screen included
5.	Fixed Sluice with Grass
	(1). Size	1000*4000mm
	(2). Material of Grass	Mitsubishi of Japan
	(3). Quantity	1piece

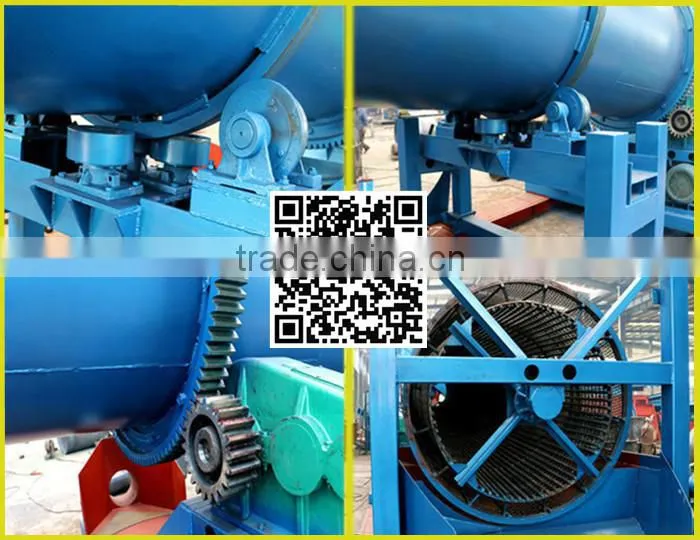

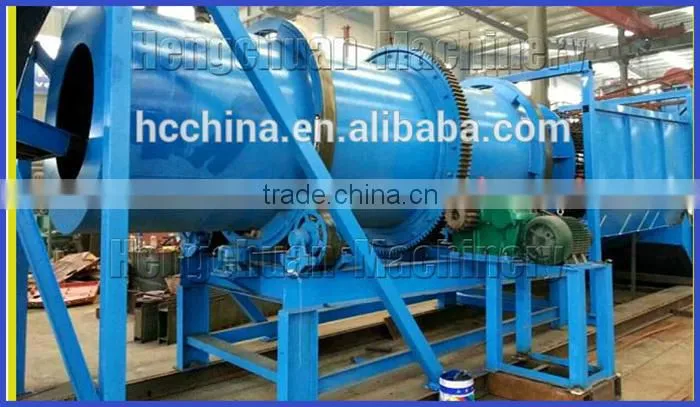

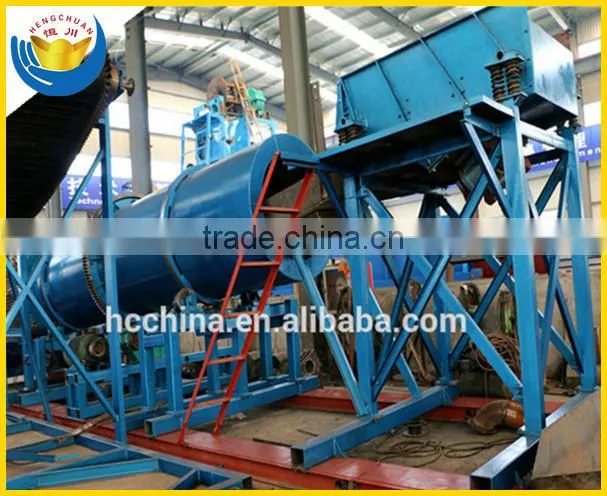

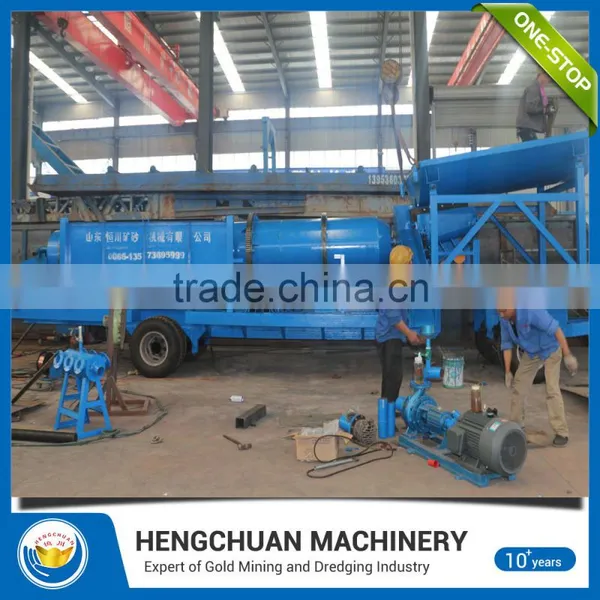

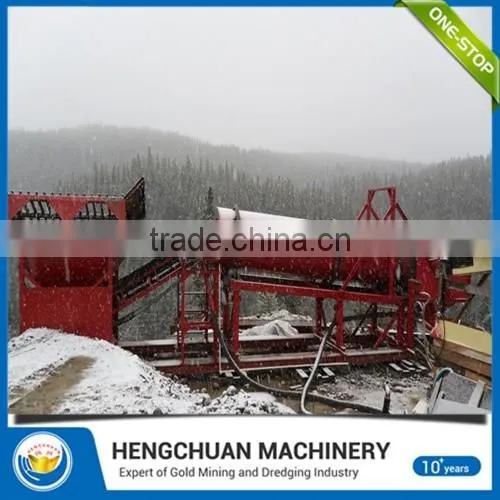

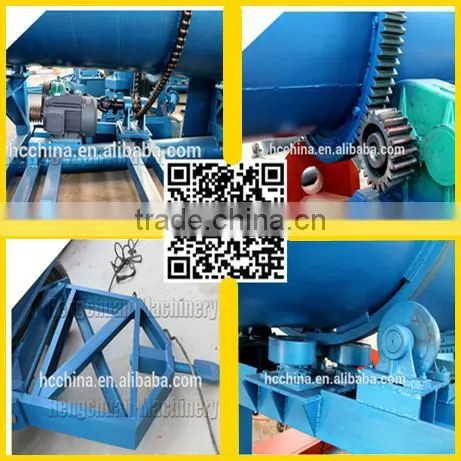

5.Detailed images of Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

Trommel Gold &Gold Wash Trommel &Gold Mining Trommel

Packaging & Shipping

Packing:By container for Portable Gold Machine By Trommel Screen For Washing Machine

Shipping: Qingdao

Our Services

1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.
