Alluvial gold mining equipment gold trommel with double-deck
- QINGDAO PORT
- T/T
You May Like
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 90% | Place of Origin | Shandong, China | |
| Brand Name | HENGCHUAN | Model Number | HC-150 | |
| Voltage | 220V/380V | Power(W) | 45kw | |
| Dimension(L*W*H) | 10m*2m*2.4m,can be customized | Weight | 1100kg | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
By container for Alluvial gold mining equipment gold trommel with double-deck
Product Description

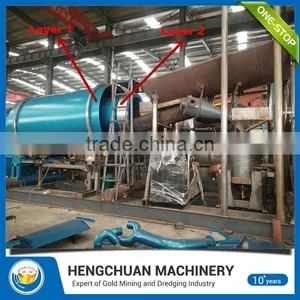

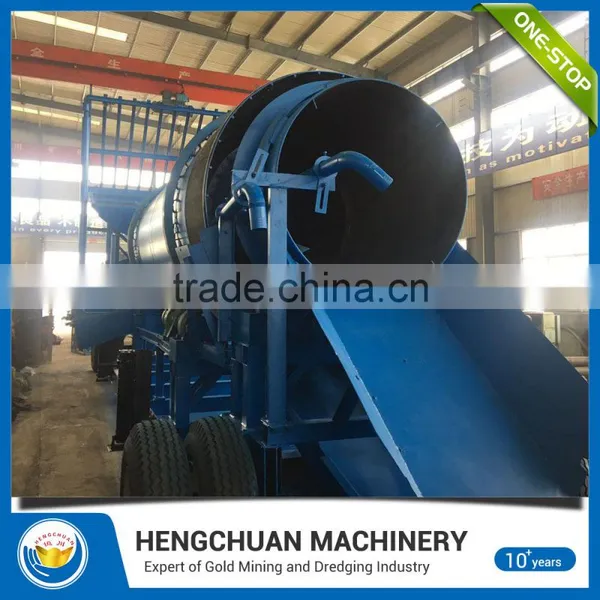

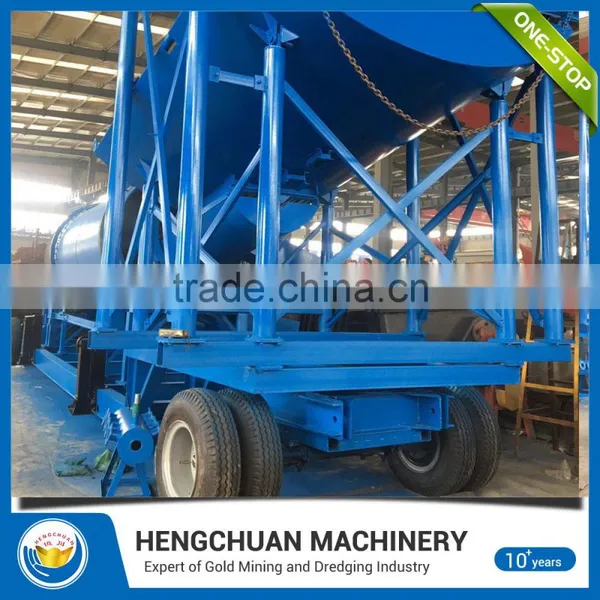

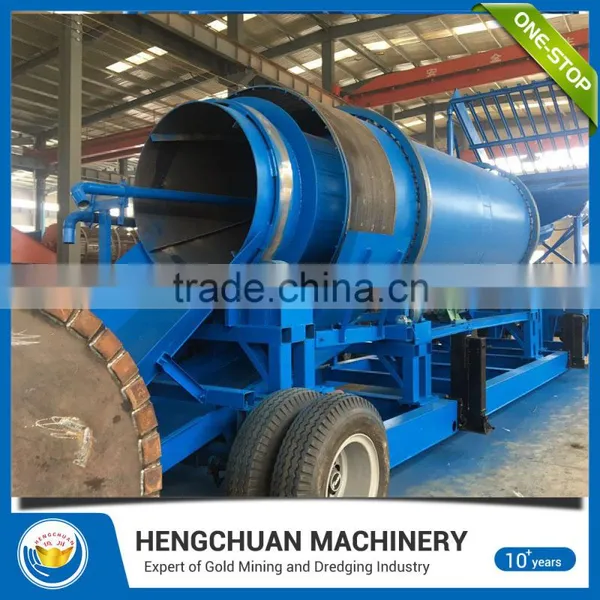

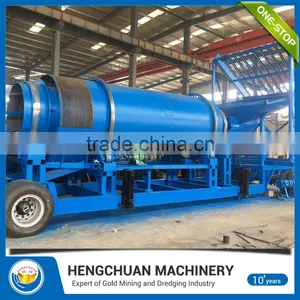

Alluvial gold mining equipment gold trommel with double-deck
Clay is every miner's enemy no matter what type machine you use. Clay will cut production down significantly, and results will vary depending on your clay content.

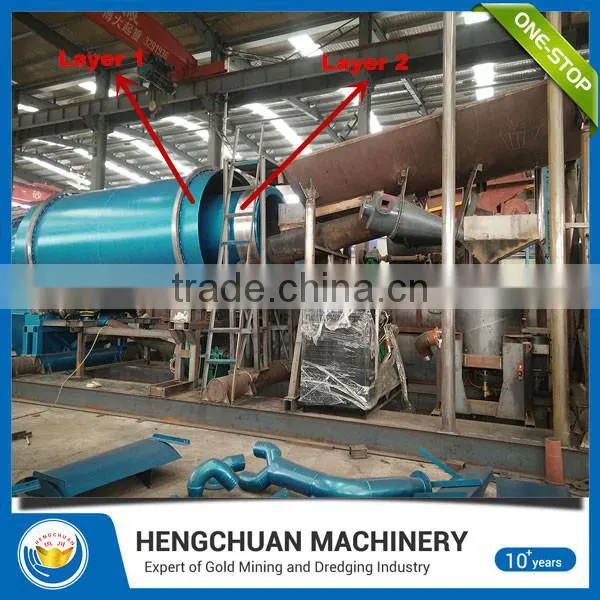

The newest Double drum scrubber trommel, it has two different drum with rotating at different direction,not only get rid of clay,but also initially concentrating.
2.Working principly of Mobile Rotary Scrubber/Rotary Scrubber for sale/Rotary Scrubber:
Excavator Load Raw Material to Plant Hopper Feeder Bin with grizzly—>Rotary Scrubber—>Trommel Screen—>Pulsating Sluice —>Concentrator—>Shaking Table—> Amalgamator —> Mercury Distiller—>Gold Furnace
1). Feeding material by excavator to Grizzl Feeder, The grizzly on the hopper will first separate the big stones.
2). Then the wanted raw ore fed into the Trommel Scrubber.
Our specially designed Gold Trommel Scrubber washing clay,sieving the ore,also can be initially concentrating..
Material is scrubbed and clays and silts dispersed into slurry.The clay and ore will be separated.
The Trommel Screen will further separate different size ores, the ore bigger than screen mesh can be separated and dischaged out by the conveyor.
Can be make mobile type or stationary type.
The length &diameter of drum unit, screen mesh, layer quantity of screen can be customized.
3). The small ores will go to the Auto Washing Belt.
This Auto Washing Belt is variable frequency speed control system. Mineral travels against the running direction of auto washing belt ,so can keep the ore loose. The gold will sink down in the bottom,lighter particles will flow away by water.
4). Tailings from Auto Washing Belt are directed to the Gold Centrifugal Concentrator,where fine gold will be recovered.
5) Collect the concentration from Centrifuge and Sluice Machine,Use shaking table for further concentrating.
6). If need pure gold particles or dust,then need equip the Amalgamator and Mercury Distiller removal of impurities after shaking table.
7). If need melt the gold dust to gold bar,then can equip with a Gold Melting Furnace.
3.Working site of Mobile Rotary Scrubber/Rotary Scrubber for sale/Rotary Scrubber:
Packing:By container for Alluvial gold mining equipment gold trommel with double-deck
Shipping: Qingdao
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.
1.Our factory
2.Our customer
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
