Concentrator Shaking Table For Gold Mines In India
- 100 Set / Sets per Month
- QINGDAO
-
Small Gold Mining Equipment and Gold Recovery Equipment
-
Gold Panning Equipment for sale Gold Mining Supplies
-
automatic High quality 99% recovery gold concentrator with CE certificate
-
China Supplier best gold concentrator with certificate
-
New product KDL model high efficiency alluvial gold concentrator OEM
-
Manufacturer Supplier gold concentrator spiral for sale
Product Details
| Condition: | New | Type: | Gravity Separator | Production Capacity: | 0.5t/h |
| Place of Origin: | Shandong, China | Brand Name: | Hengchuan | Model Number: | 6-S |
| Voltage: | 220V/380V | Power(W): | 1.1kw | Dimension(L*W*H): | depend on the model |
| Weight: | according to models | Certification: | ISO9001:2008 | Warranty: | One Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
By container for Concentrator Shaking Table For Gold Mines In India
Product Description
Concentrator Shaking Table For Gold Mines In India
1.Description of Concentrator Shaking Table For Gold Mines In India
Shaking table, which is also called table concentrator, is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum,niobium, iron, manganese, ferrotitanium, coal, etc.
2.Main Features of Concentrator Shaking Table For Gold Mines In India
1) High recovery ratio.
2) Easy installation.
3) Simple operation.
4) Deck constructed of fiber glass.
5) Three different decks to choose.
6) Long working life.
7) Adjustable stroke length and speed.
In compliance with the industrial standards, the lab shaking table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.

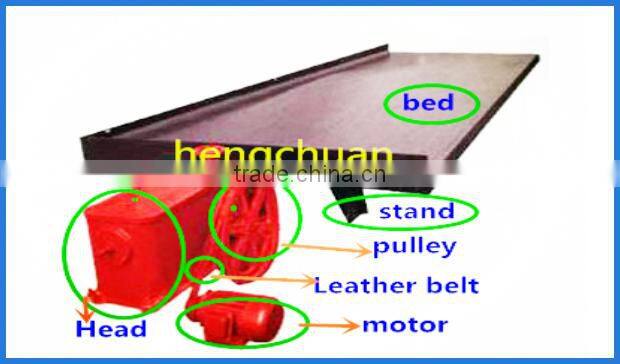

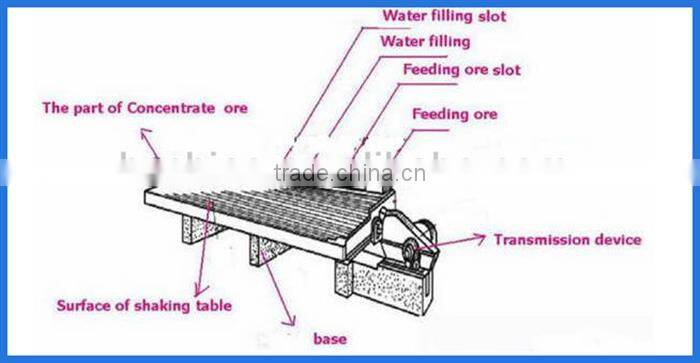

3.Structure of Concentrator Shaking Table For Gold Mines In India

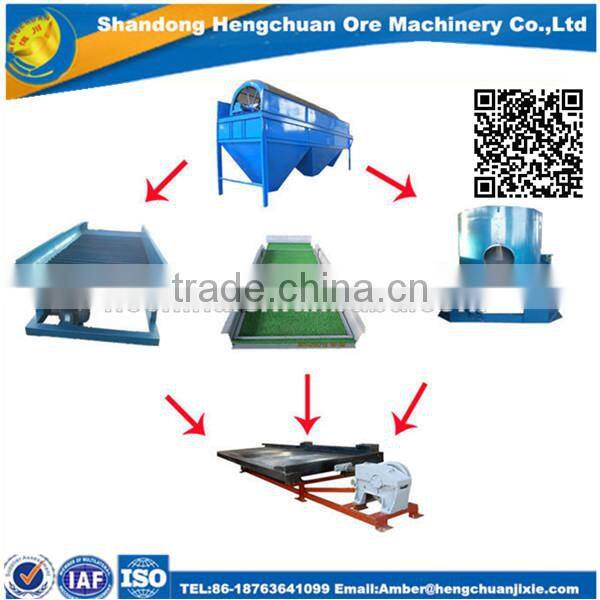

4.Applicant of Concentrator Shaking Table For Gold Mines In India
Gold Separation machine 6-S Shaking Table /Copper Shaking Table in Indonesia
Shaking table is one of the most commonest ore dressing equipment used in gravity separation plant. Its effective finest particle size is 0.037mm. The bed zoning is obvious and easy to operate, and it can get high grade concentrate, middling and tailings. It is widely used for separation of tungsten, tin, tantalum, gold and other rare metal or noble metal. It is also used to separate iron ore, manganese ore and coal.
5.Specification of Concentrator Shaking Table For Gold Mines In India
Name | Unit | Coarse ore Deck | Fine sand | Slime Deck | |
Deck Size | Length | mm | 4450 | 4450 | 4450 |
transmission end width | mm | 1855 | 1855 | 1855 | |
Concentrate end width | mm | 1546 | 1546 | 1546 | |
Maximum Feeding Size | mm | 2 | 0.5 | 0.15 | |
Feeding Amount | t/d | 30-60 | 10-20 | 15-25 | |
Feeding Density | % | 25-30 | 20-25 | 15-25 | |
Stroke | mm | 16-22 | 11-16 | 8-16 | |
Frequency | f | 45-48 | 18-53 | 50-57 | |
Water added | t/d | 80-150 | 30-60 | 10-17 | |
Transverse slope of Deck | ° | 2°30-4°30 | 1°30-3°30 | 1°-2° | |
Longitudinal slope of Deck | ° | 1.4 | 0.92 | ------ | |
Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 | |
Cross-section Shape of Deck |
| rectangular | saw tooth | triangle | |
Motor Power | KW | 1.1 | 1.1 | 1.1 | |
Transmission Mechanism |
| Eccentric linka | |||

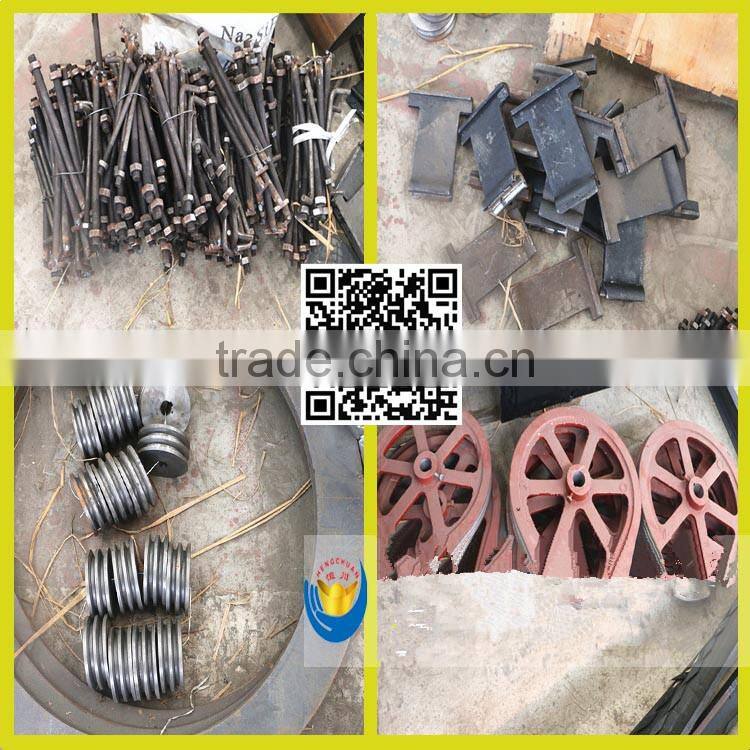

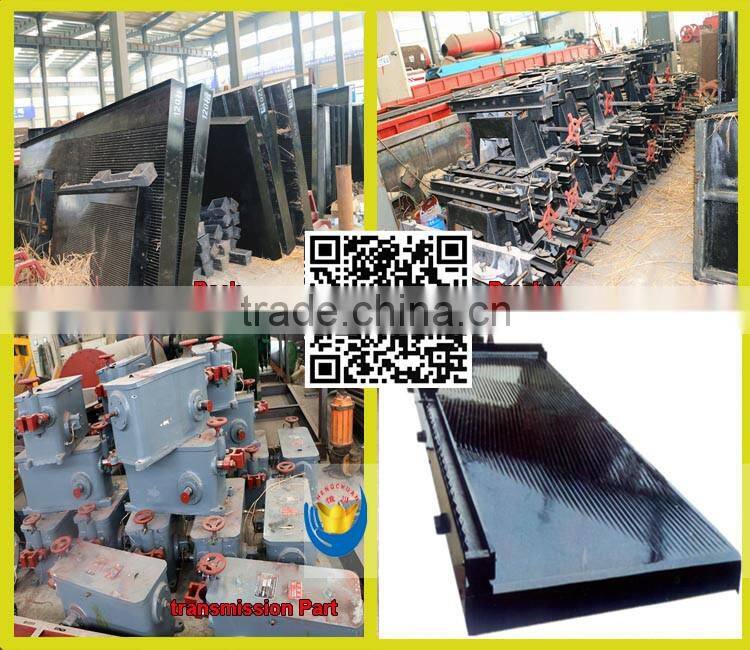

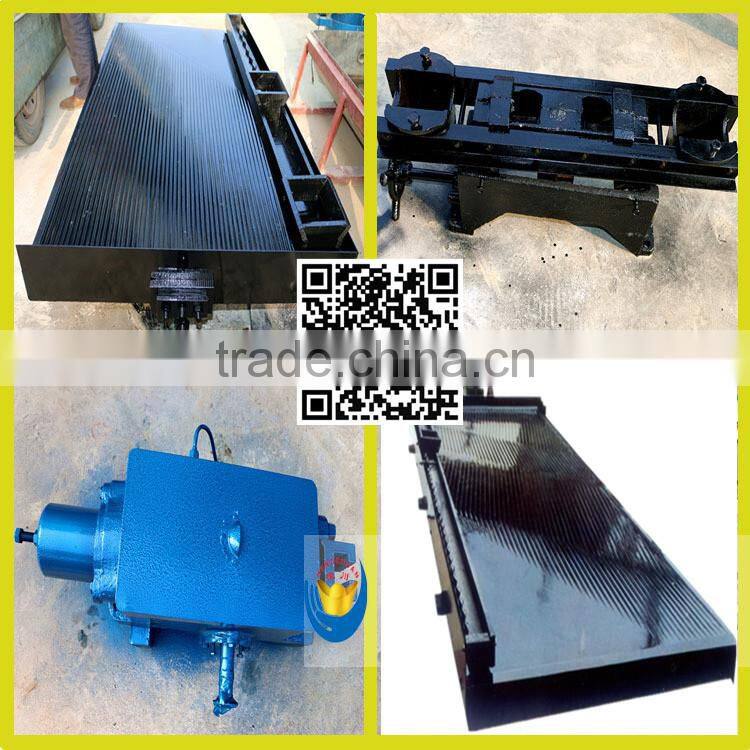

6.Detailed images of Concentrator Shaking Table For Gold Mines In India

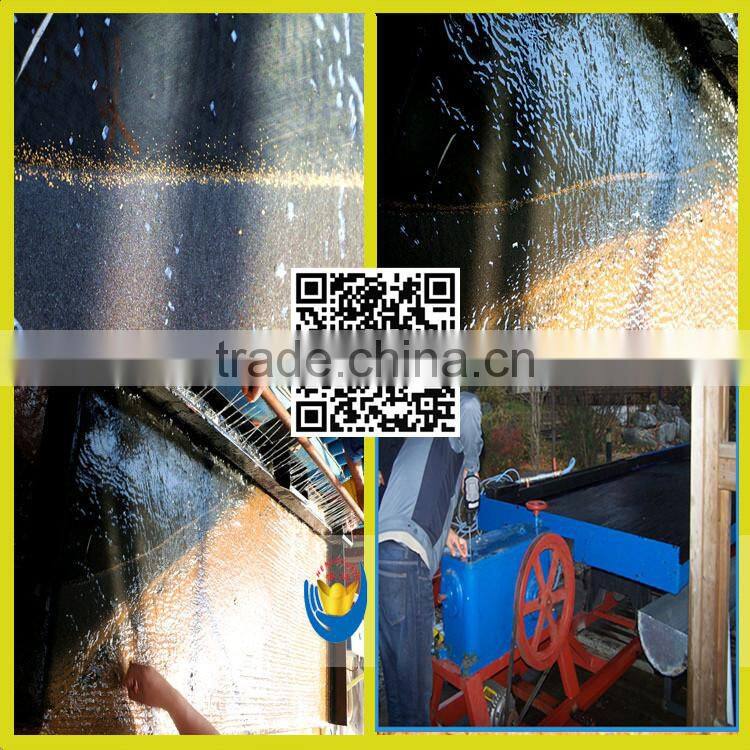

Deck of Concentrator Shaking Table For Gold Mines In India
Concentrator Shaking Table For Gold Mines In India

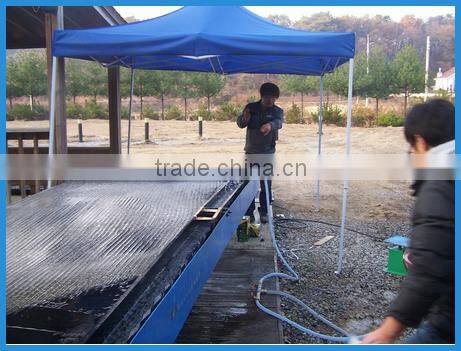

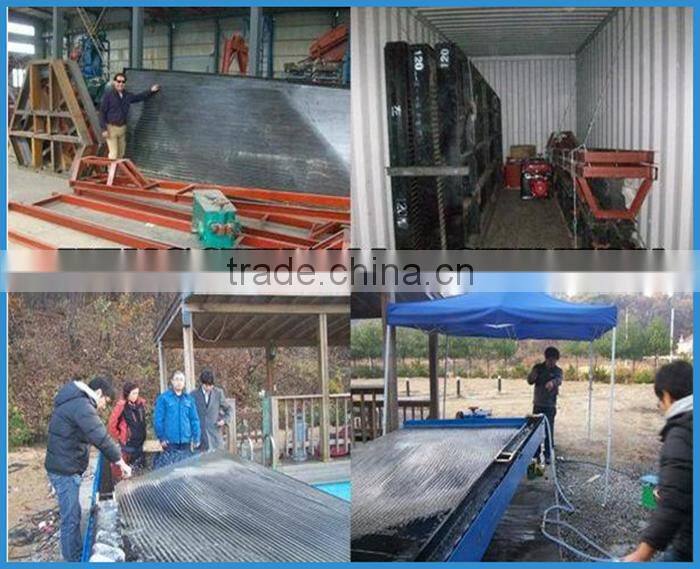

Work site of Concentrator Shaking Table For Gold Mines In India
Concentrator Shaking Table For Gold Mines In India
Packing:By container for Concentrator Shaking Table For Gold Mines In India
Shipping: Qingdao port
1. Shandong Hengchuan company signs a long-time after-sale service agreement with customers.
2.Shandong Hengchuan company provides rational and practical design according to customers' request.
3. Shandong Hengchuan company sends experienced engineers to assemble and test the machine within the period as agreed in the contract.
4. Within warranty period, Shandong Hengchuan company provides free repair if quality problems emerge.
5. Shandong Hengchuan company provides free training of operation and maintenance for customers.
6. Shandong Hengchuan company supply high quality accessories in low price.
7. Shandong Hengchuan company make an excellent filing of customers for long-term following-up service. Any question or problem about the products can be answered via online support.
1.Our factory
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.
2.Our customers
Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.
3.Certifications
In order to give you a responsible quotation, you can inform us the following information
1).Type of minerals to be mined?
2).Type of deposit (Primary/hard rock, or secondary/placer)?
3).Physical characteristics of the ore (sandy, with light clay or heavy clay)?
4).Intended feed capacity (Tons/hour)?
How to contact us
other related products
Self-propelled Water Mud Dredger Machinery From China China Supplier Latest Nechnology Gold Seperating Line
Company Profile
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers.
Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc.

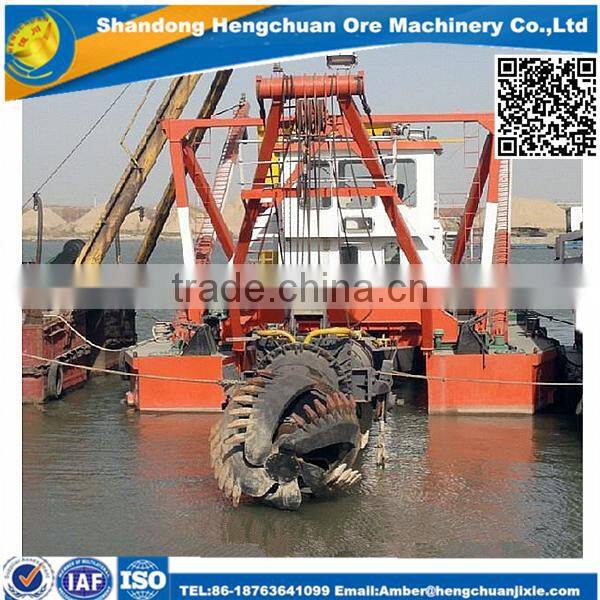

Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field.
