Specifications
Horizontal Directional Drilling Rig1. imported hydraulic parts.
2. Automatical loading system.
3. Different accessories for

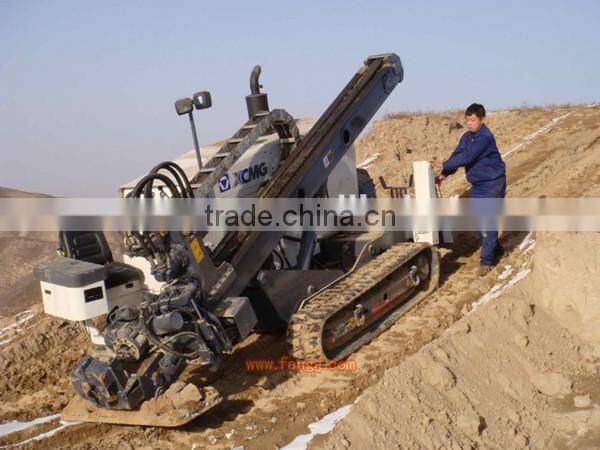

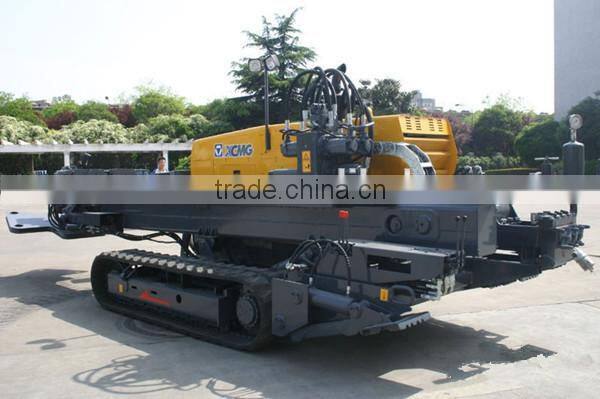

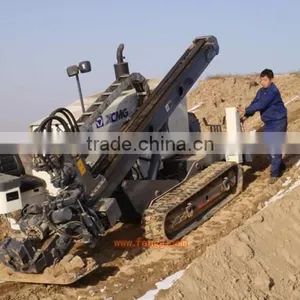

Horizontal Directional Drilling Rig
Technical features
Strong power:
The 160kW engine ensures that the drilling rig can pave the pipes under various complex ground conditions.
Dual speed power unit: The low drilling and pulling speed ensures the successful construction. The power unit can accelerate the sliding speed after the drill stem is removed,so that the auxiliary work time is reduced and the work efficiency is enhanced.
Rubber crawler: The influence of this kind of crawler on the road, lawn and sight spot is smallest.
Floating vice: The proprietary floating vice of the Company shall be adopted, which can prolong the service life of drill stem effectively.
Automatic loading and unloading of drill stem: The automatic drill stem loading and unloading device can boost the work efficiency, and reduce the work intensity of operators and the number of construction workers.
Automatic anchoring: The drilling and pulling of anchor rod is driven hydraulically and controlled by the cylinder and the low-speed and high-torque motor. It is easy and convenient to operate.
Easy operation: The rotation, pushing and pulling of power unit are controlled separately. The whole machine is easy to operate so that the operators can learn how to operate the drilling rig after a short-period training
Ⅱ. Main technical parameters
Item |
Unit |
Qty |
|
Engine |
Producer |
|
Dongfeng Cummins |
Model |
|
6CT8.3-C215 |
|
Rated power |
kW/ rpm |
160/2200 |
|
Pusher and puller |
Type |
|
Cylinder and chain type |
Max. pulling/feeding force |
kN |
320/200 |
|
Running speed of power unit |
m/min |
0~20 |
|
Rotation |
Type |
|
Four-motor gear transmission |
Max. torque of power unit |
N.m |
12000 |
|
Rotation speed of power unit |
r/min |
0~140 |
|
Drill stem |
Type |
|
|
Diameter |
mm |
φ73 |
|
Length (single piece) |
m |
3 |
|
Drill stand |
Type |
|
Box-type drill stand |
Adjusting angle |
° |
10~22 |
|
Travel drive |
Type |
|
Self-propelled rubber crawler |
Travel speed |
km/h |
2.0 |
|
Slurry pump |
Type |
|
Hydraulic drive |
Flow rate |
L/min |
320 |
|
Overall dimension (L×W×H) |
mm |
7100x2300x2450 |
|
Weight (including one box-type drill stem) |
t |
12.1 |
|
