Home > Products > Road construction machinery > 165HP motor grader

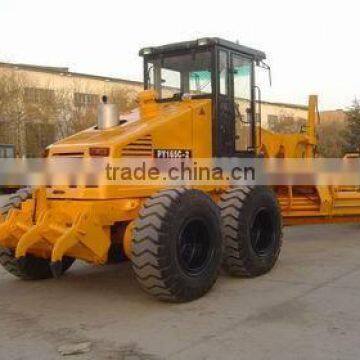

165HP motor grader
- 300 Unit / Units per Month
- any port of China
- T/T L/C D/P D/A Credit Card PayPal
- The used XCMG 1803 graders with excellent control performance is for sale
- Simple-to-operate used XCMG 180 graders for sale
- Large quantities of used CAT 140K graders for sale
- The latest used CAT 140H graders for sale
- Used Caterpillar graders for sale
- Used road construction machinery SEM 915 Motor grader FOR south america country use
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Lutong |
Model Number: | PY165C |
Product Description
Specifications
1.Steering system with center articulated joint2.Tilting turning front wheels can get offset travel of the entire machine
Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. Lt can be used for ditching,grading, slope scraping, bulldozing,ripping,virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi –functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial
ground and farmland.
Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting,Patent hydraulically-operated pin drawing device is designed firstly in board.
Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.
Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
Dual diagonal appearance with whole metal hood 1m*1m distance.
Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.
It is optional for front bulldozing plate and rear ripper.
MODEL | PY165C | |
Operation mass | kg | 15000 |
Front axle load | kg | 4150 |
Rear axle load | kg | 10850 |
Max.forward speed | km/h | 40.4 |
Max.backward speed | km/h | 25.7 |
Speed geae number | F6/R3 | |
Turning radius | mm | 7500 |
Hydraulic system pressure | Mpa | 18 |
Blade length*height | mm | 3660*610 |
Front wheeltrack | mm | 2150 |
Rear wheeltrack | mm | 2340 |
Wheelbase | mm | 6062 |
Engine model | 6BTA5.9 | |
Engine power | KW | 125 |
Overall dimensions | mm | 8285*2595*3340 |
