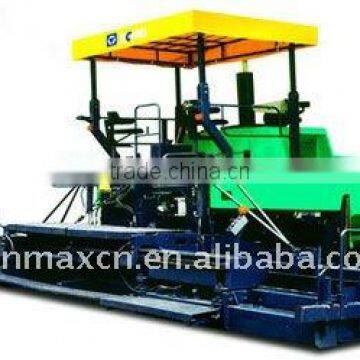

ASPHAL CONCRETE PAVER RP601
Technical features
1 Advanced and mature drive technology.
It adopts advanced mechanical-electrical-hydraulic technology, which represents the development trends of construction machinery industry.
2 Full hydraulic drive, electro-hydraulic proportional automatic constant control.
Unique, mature and reliable XCMG drive axle technology.
3 Reliable and durable material feed/distribution technology
Full hydraulic drive and electric-hydraulic proportional automatic constant speed control.
High material distribution capability, Φ360 large diameter mixing blade, 28BH reinforced drive chain.
4 The material feed system and distribution system are independent; the supersonic material level sensing control technology enables it to control the material height.
5 With high capability of anti-segregation, strong power for material distribution, and high strength structure, it can achieve buried distribution and reduce segregation.
Item |
Unit |
|
Basic Paving Width |
m |
2.5 |
Max Paving Width |
m |
6 |
Max Paving Thickness |
mm |
150 |
Paving Speed |
m/min |
0~3.6 |
Travel Speed |
km/h |
0~11 |
Theoretical Productivity Capacity |
t/h |
300 |
Hopper Capacity |
t |
13 |
Gradeability |
% |
20 |
Pavement Evenness |
mm/3m |
3 |
Transverse Leveling Accuracy |
% |
±0.03 |
Centre Crown Ratio |
% |
0~+3 |
Engine Model |
|
D4114ZG2B |
Engine Power |
kw |
100 |
Engine Speed |
r/min |
2400 |
Machine Weight |
t |
17.4 |
Overall Dimensions |
mm |
6400×2580×3830 |
Tamper Vibration Frequency |
r/min |
0-1470 |
Screed Heating |
|
Gas Heating |
Auger and Conveyor Control |
|
Automatic Control by Ultrasonic Sensors |
Automatic Leveling Control |
|
Simulation Control |
