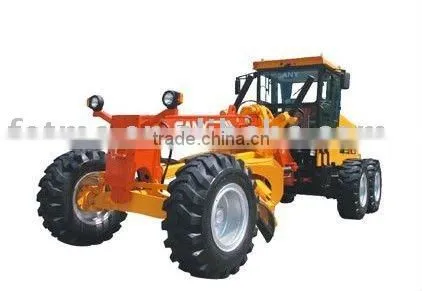

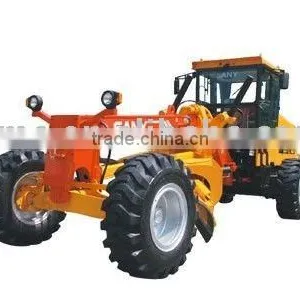

SANY Motor Grader SHG190

Overall Parameter

Basic Type

Length

9073 mm

Forward Push/Rear Loose Type

Length

11008 mm

Width

2648 mm

Width

2740 mm

Height

3245 mm

Height

3245 mm

F/R Axle Wheelbase

6208 mm

Front Wheel Steering Angle

±45°

M/R Wheel Axle Base

1522 mm

Front Wheel Inclination Angle

±17°

Wheel Base

2196 mm

Rack Hinge Joint Steering Angle

±25°

Min. Ground Clearance

420 mm

Front Axle Swing

±16°

Balance Box Swing

±15°

Operation Mass

Basic Type

Complete Machine

15300

Forward Push/Rear Loose Type

Complete Machine

16900kg

Front Axle

4600

Front Axle

4400kg

Rear Axle

10700

Rear Axle

12500kg

Min. Turning Radius

7.9m

Wheel

Tyre

17.5-25-12PRGB2980

Rim

14/1.5-25(TB)

Tyre Pressure

Front 2 Wheels: 0.2MPa

Rear 4 Wheels:0.25MPa

Work Performance Parameters

Scraper Knife

Basic Type:3965mm

Option Type:3660mm

Scraper Knife Inclination Angle

90°

Scraper Rotation Angle

360°

Max. Traction

82 kN

Scraper Knife to Front Wheel Distance

2705mm

Drive speed(km/h)

Forward

Reverse

D(AT)

0~31km/h

R(AT)

0~31km/h

MT

First Gear

7.0km/h

MT

First Gear

7.0km/h

Second Gear

9.0km/h

Second Gear

9.0km/h

Third Gear

11km/h

Third Gear

11km/h

Fourth Gear

14km/h

Fourth Gear

14km/h

Diesel Engine

Model

BF6M1013EC

Type

Inline six-cylinder, Water Cooler,4 Strock,Overhead Valve,Turbocharging

Rated Power

148kW/200hp

Rated Speed

2300 rpm

Max.Output Torque

727Nm

Max. Torque Rotate Speed

1400 rpm

Start Type

24V.DC Ekectric Start
