Home > Products > Road construction machinery > 215hp motor grader

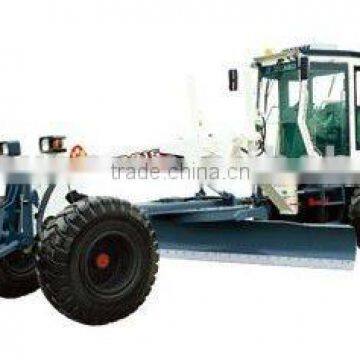

215hp motor grader
USD $40,300 - $43,100
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
The used XCMG 1803 graders with excellent control performance is for sale
-
Simple-to-operate used XCMG 180 graders for sale
-
Large quantities of used CAT 140K graders for sale
-
The latest used CAT 140H graders for sale
-
Used Caterpillar graders for sale
-
Used road construction machinery SEM 915 Motor grader FOR south america country use
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | - |
| Model Number: | GR215 |
Product Description
| Basic specification | |
|---|---|
| Engine model | 4BT3.9 |
| Rated power/speed | 75/2400kw/rpm |
| Dimension(LxWxH) | 6880×2375×3150mm |
| Operating weight(Standard) | 7000kg |
| Performance specification | |
| Travelling speed ,forward | 5,10,20,39km/h |
| Travelling speed ,reverse | 8,25km/h |
| Tractive force(f=0.75) | 41.6KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 350KPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 5.9m |
| Biade | |
| Maximum lift above ground | 300mm |
| Maximum depth of cutting | 350mm |
| Maximum blade position angle | 45° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 120° |
| Moldboard width X height | 3048×500mm |
