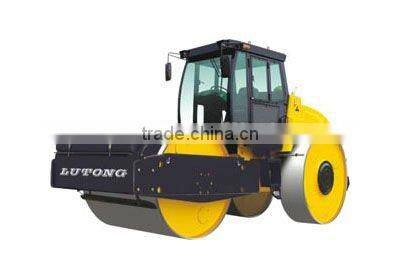

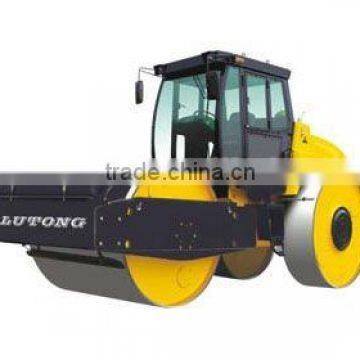

Help CenterArticulated Road Roller
Related Products
Specifications
1.Low gravity center, good stability.2.Central articulated hydraulic steering for flexible turning and convenient operation.
LTJ1821 LTJ1821,LTJ2125,2Y8x10 2YJ8x10 The machines are heavy-duty static three wheel road rollers.With their dead weight, they compact cohesive and non-cohesive materials, such as gravel, sand stone mixture,sandy soil,and asphalt concrete. They are universal compaction equipments for highway, municipal road, parking area and industry ground etc, medium and large-scale construction projects.
Main Features
Steady quality,serial products cover wide applications.
Electric power sprinkler device.
Low gravity center, good stability.
Spacious and comfortable cab,with broad visual vien.
Central articulated hydraulic steering for flexible turning and convenient operation.
Articulated connectiong and flexible steering.It adopted the hydraulic braking,safe and dependable.
There are simple chair in the cab and single steering wheels. It has good capacity of stitching hems.
The nose of the roller is narrow with an excellent tunring sight.
A sprinkling set is equipped for evenly sprinkling water on the surfaces of both front and rear drums.
| Main Technical Parameters | |||
| MODEL | LTJ2125 | LTJ1821 | |
| Operating mass | kg | ||
| Without ballast | 21000 | 18000 | |
| With ballast | 24000 | 21000 | |
| Font linear load | N/cm | ||
| Without ballast | 575 | 510 | |
| With ballast | 650 | 565 | |
| Rear linear load | N/cm | ||
| Without ballast | 1200 | 1056 | |
| With ballast | 2300 | 1226 | |
| Travel speed | km/h | ||
| 1st gear | 2.0 | 2.0 | |
| 2nd gear | 4.0 | 4.0 | |
| 3rd gear | 9.6 | 9.6 | |
| Grade ability | % | 20 | 20 |
| Turning radius | mm | ||
| Inside | 3250 | 3250 | |
| Outside | 5570 | 5570 | |
| Steering angle | . | 30 | 30 |
| Overall length | mm | 5700 | 5700 |
| Overall width | mm | 2300 | 2300 |
| Overall hieght | mm | 3000 | 3000 |
| Front wheel size | mm | ||
| Width | mm | 1680 | 1680 |
| Diameter | mm | 1500 | 1450 |
| Rear wheel size | mm | ||
| Width | mm | 530 | 530 |
| Diameter | mm | 1700 | 1650 |
| Wheel base | mm | 2945 | 2945 |
| Ground clearance | mm | 370 | 370 |
| Diesel model | 6108G | 6108G | |
| Diesel power | kW | 85 | 85 |
| Diesel speed | r/min | 2000 | 2000 |
| Fuel tank capacity | L | 200 | 200 |
| Electrical voltage | v | 24 | 24 |
| Hydraulic tank capacity | L | 40 | 40 |
