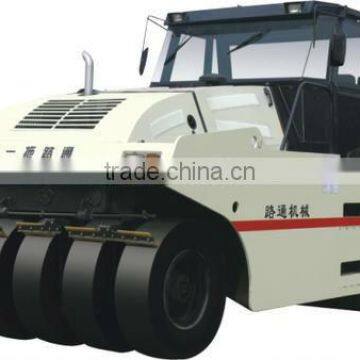

Tire Road Roller

Specifications

1.CUMMINS 6BTA diesel engine
2.Reinforced plastic spraying box and multi-layer water

Pneumatic tyre roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
      LTP2030,LTP1826,LTP1016 low gravitational center designed for safe and comfortable operation.
      LTP2030,LTP1826 abopt CUMMINS 6BTA diesel engine. Powerful strength, which is suitable to all environments.
      Three forward speed and two backward changes. Reinforced plastic spraying box and multi-layer water
      With stepless speed changes LTP2030H,LTP1826H,LTP1016H is easy and reliable to operate.
      Power strength,LTP1016,LTP1016H which adopted 4BT Cummins engine, is suitable to all environments.



Main Technical Parameters
Model		LTP2030	LTP1826	LTP1016	LTP2030H	LTP1826H	LTP1016H
Operating mass (Unballast/Ballast)	Kg	20000/30000	18000/26000	10000/16000	20000/30000	18000/26000	10000/16000
Max travl speed	km/h	20.75	20.75	20.75	0-10	0-10	0-13
Type quantity(Front+back)	mm	5+6	5+6	4+5	5+6	5+6	4+5
Min. turning radius	mm	8000	8000	7500	8000	8000	7500
The presses width	mm	2790	2790	2286	2790	2790	2286
Grade ability	%	30	30	30	30	30	30
Overall dimension	mm	4950x2850 x3100	4950x2850 x3100	4780x2280 x3200	4950x2850 x3100	4950x2580 x3100	4780x2280 x3200
Wheelbase	mm	3800	3800	3700	3800	3800	3700
Diesel power	kW	125	125	75	125	125	75
Diesel model		6BTA5.9	6BTA5.9	4BT3.9	6BTA5.9	6BTA5.9	4BT3.9
