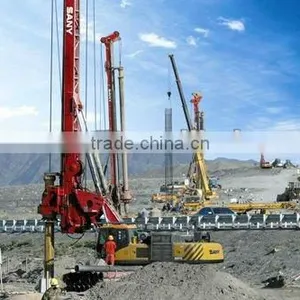

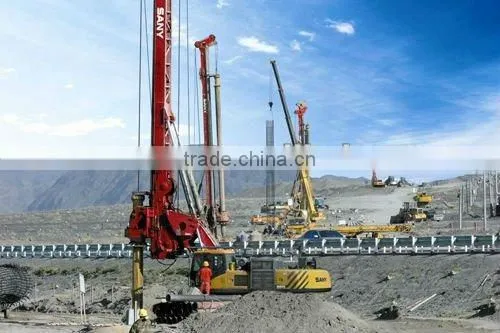

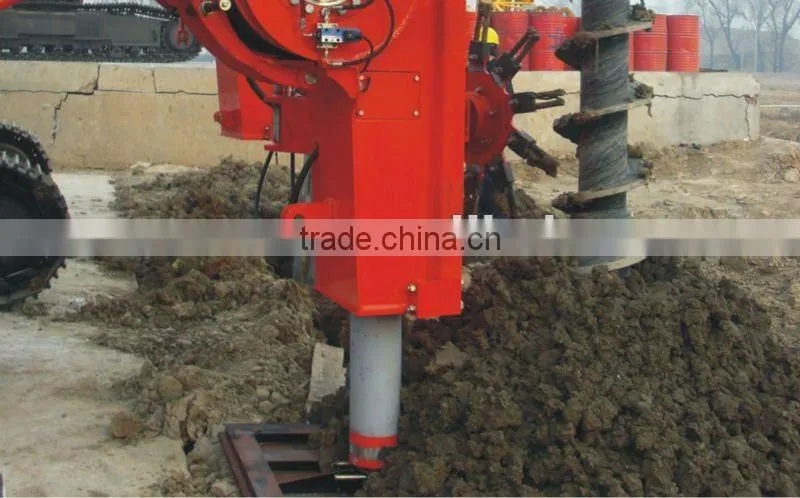

Rotary drilling rig SR150C
USD $300,000 - $700,000
/ Unit
1 Unit(Min.Order)
- 30 Unit / Units per Month
- TIANJING
- T/T L/C D/P D/A
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Rotary Drilling Rig | Place of Origin: | Beijing, China |
| Brand Name: | SANY | Model Number: | SR150C | Usage: | Other, Bored piles into holes |
Product Description
Specifications
Rotary drilling rig is widely used in urban high-rise buildings, railways, ports, and other bored pile foundation construction.Rotary drilling rig is widely used in urban high-rise buildings, railways, highways, bridges, airports, ports and other bored pile foundation construction, features wide application range, high working efficiency, stable performance perfect customer support, energy saving and environment-friendly.
| SR150C | Unit | Parameters |
| Max.Drilling Dia. | mm | 1500 |
| Max.Drilling Depth | m | 55 |
| largest torque | kN.m | 150 |
| Speed of rotary drive totation | rpm | 7-14 |
| Max.push | kN | 150 |
| Max.pull | kN | 160 |
| Crowd stroke | mm | 4250 |
| Mast sideward | . | (+/-)5 |
| Mast forward | . | 5 |
| Main winch pull(1st layer) | kN | 160 |
| Main winch wire rope dia. | mm | 28 |
| Max.main winch line speed | m/min | 70 |
| ch pull(1st layer) | kN | 60 |
| ch wire rope dia. | mm | 14 |
| Engine | CC-6BG1TRP |
| Engine power | KW(HP) 125 (168) @2100rpm |
| Style | 4-storke,water-colled,overhead value type and electronic injection |
| Intake form | Turbocharged, inter cooling |
| Fuel | Diesel oil |
| Emission regulation | EU stage II/EPA Tier 2 |
| No of cylinder-bore*stroke | 6-105mm X 125mm |
| Displacement | 6.494 |
| Compression ration | 17.5:1 |
| Rated power | 125KW @ 2100rpm |
| 168HP @ 2100rpm | |
| Max. output torque | 637.9N.m @ 1800rpm |
| 864lbf.ft @ 1800rpm |
