Rotary Drilling Rig SR150M

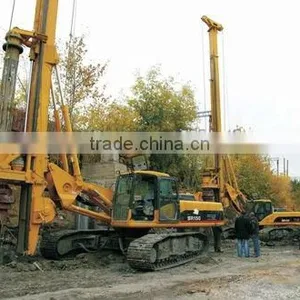

Rotary Drilling Rig SR150M thumbnail-1

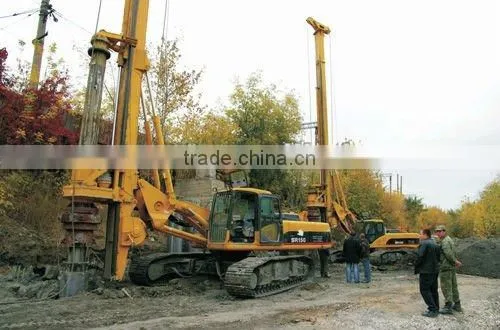

Rotary Drilling Rig SR150M photo-1
US$ 300,000 - 700,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Place of Origin Beijing, China
Brand Name SANY
Model Number SR150M
Usage Other, Bored piles into holes

Specifications

Multi-function: drilling with Continuous Flight Auger after replacing related components.

1, Multi function:  drilling with Continuous Flight Auger(max.drilling dia. Φ 750mm and max. drilling depth 17m) or with Kelly system (max. drilling dia. Φ1500mm and max. drilling depth 46m) after replacing related components;
2,Dry drilling without slurry circulation to facilitate drilling with fewer accessories and to avoid pollution
3,The rig owns a high drilling efficiency due to the rotary drive with large output torque;
Auger cleaner to reduce labor intensity;
4,Cummins QSB6.7-190 (EU / EPA Tier 3 III) or Isuzu CC-6BG1TRP(EU stage II/EPA Tier 2) stage intercooler diesel engine owns the functions of load-sensing and output power auto adjusting;

auto accelerating/decelerating function, fuel consumption can be reduced by 5-10%;
5,Embedded system based on work mechanism controller and perfect CAN-BUS technique to take full charge of whole machine monitoring;
6,Hydraulic pump, motor, valve and joint are introduced in well-known brands to ensure high reliability of system; main oil circuit adopts advanced negative control technology and auxiliary oil circuit adopts load sensitive control system,which assures the optimal match of output power and load under all kinds of operating conditions;
7,Meet the standards of city construction law due to its low noise, slight vibration and little pollution during drilling.



SR150M Unit Parameters
Max.Drilling Dia. mm 1500
Max.Drilling Depth m 55
largest torque kN.m 150
Speed of rotary drive totation rpm 7-14
Max.push kN 150
Max.pull kN 160
Crowd stroke mm 4250
Mast sideward . (+/-)5
Mast forward . 5
Main winch pull(1st layer) kN 160
Main winch wire rope dia. mm 28
Max.main winch line speed m/min 70
ch pull(1st layer) kN 60
ch wire rope dia. mm 14



Engine CUMMINS QSB6.7-190
Engine power KW(HP) 125 (168) @2100rpm
Style 4-storke,water-colled,overhead value type and electronic injection
Intake form Turbocharged, inter cooling
Fuel Diesel oil
Emission regulation EU stage II/EPA Tier 2
No of cylinder-bore*stroke 6-105mm X 125mm
Displacement 6.494
Compression ration 17.5:1
Rated power 125KW @ 2100rpm
  168HP @ 2100rpm
Max. output torque 637.9N.m @ 1800rpm
  864lbf.ft @ 1800rpm

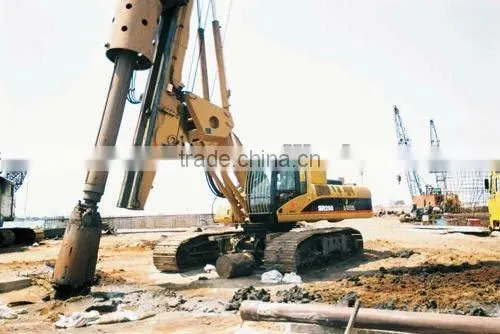

  Rotary drilling rig SR150M
