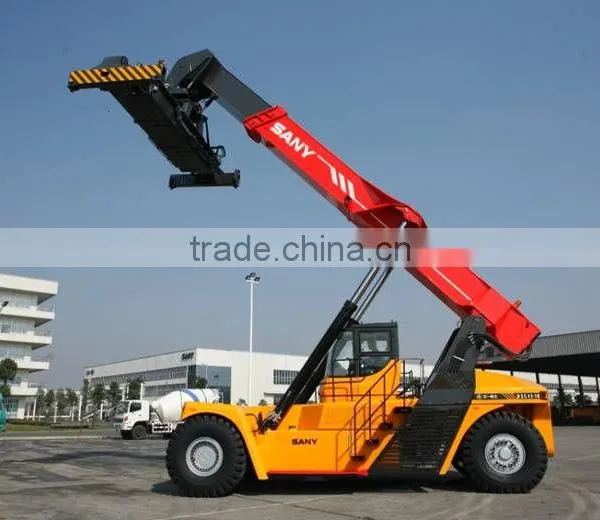

SANY Container Reach Stacker Machine/ Reach Stacker 45T

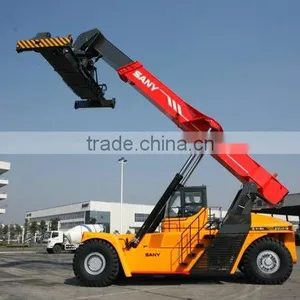

SANY Container Reach Stacker Machine/ Reach Stacker 45T thumbnail-1
SANY Container Reach Stacker Machine/ Reach Stacker 45T photo-1
US$ 350,000 - 370,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
SANY
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hunan, China
Brand Name SANY
Model Number SRSC45C2
Type Manual Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 45ton
Max. Lifting Height 15100mm
Fork Width 4188mm
Overall Dimensions 11258*6042*4770mm
Certification BV,ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Popular SANY 45 ton reach stacker for containers
1. Engine VOLVO TWD1240VE
2. Rated power 256 kW/2100 r/min

                                        Sany 45ton Reach Stacker



SANY reach stacker,sany 45 ton reach stacker,SANY 45 ton container reach stacker for sale,SANY reach stacker

Specifications of Sany reach stacker



Reach Stacker

Overall dimension
Length 11230 mm
Width 4130 mm
Height 4780 mm
Loading capacity
The 1st row Load center: 1965mm
The 1st row Floor 1-4: 45000 kg
The 1st row Floor 5: 43000 kg
The 2nd row Load center: 3815mm
The 2nd row Floor 1-4: 31000 kg
The 3rd row Load center: 6315mm
The 3rd row Floor 1-3: 15000 kg
Engine
Model VOLVO TWD1240VE
Type In-line 6 cylinders, 4 strokes, central water cooled, turbo charged, electro-injection
Control mode EDC III full electric control system of CAN trunk
Rated power 256 kW/2100 r/min
Rated torque 1751 Nm/1200 r/min
Tail gas discharge standard Euro II
Average oil consumption ratio 197 g/kW.h
Gear shifting box
Model CLARK 15.5HR36432
Gearing mode Automatic/manual
Gears 4 gears for front and rear respectively
Driving axle
Mode KESSLER+CO D102 PL341
Traveling brake Multi-sheet wet brake
Parking brake Disk type brake of spring brake and hydraulic release
Max. static axle load 1500 kN
Lifting tool
Model ELME817
Rotary angle +105 /-195
Side movement distance +800/-800 mm
Max. load-bearing 45000 kg
Available scope ISC 20-40
Lifting object Container
Overall mass 69500 kg
Arm
Max. hoisting height 15100 mm
Obliquity 0-60
Travel 7070 mm
Max. hoisting speed (non-load/full load) 420/250 mm/s
Max. traveling speed (non-load/full load) 25/21 km/h
Max. approaching speed (non-load/full load) 360/360 mm/s
Gradeability (non-load/full load) 39/32 %
Max. tractive force 360 kN
Min. turning radius 8000 mm
Steering mode Servo-aid turning
Wheel base 6000 mm
Min. clearance 350 mm
Traveling speed
1st gear 3.6 km/h
2nd gear 8.6 km/h
3rd gear 14.8 km/h
4th gear 25 km/h
Noisy level at cab ≤72 dB
Temperature of cab 15-25 0C
Lubrication mode Concentrated lubrication
Working pressure of hydraulic system 23 MPa
Total discharge capacity of hydraulic system 240 ml/r

SANY container reach stacker machine/ reach stacker 45TSANY container reach stacker machine/ reach stacker 45TSANY container reach stacker machine/ reach stacker 45T
