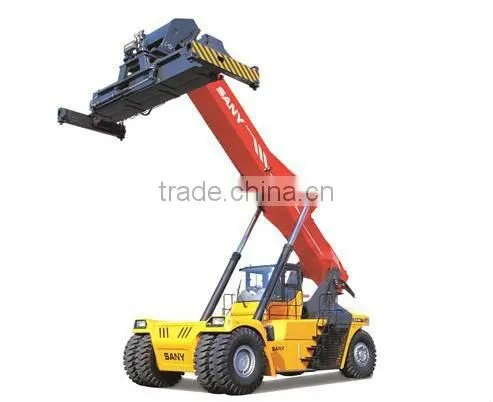

32t Container Reach Stacker

Name: 32t Container Reach Stacker
Brand: SANY
SKU: 141324992
Availability: InStock

US$ 300,000 - 350,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Hunan, China

Brand Name:

SANY

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hunan, China

Brand Name SANY

Model Number SRSC4032C3-S

Type Other, Diesel Engine container stacker

Power Souce Diesel Engine

Rated Loading Capacity 32000kg

32t container reach stacker

1.Conatiner reach stacker with Cummins engine
2.Elma Spreader
3.Clark hydraulic transmission

Truck Model:	CRS450Z5
Equipment Code:	Z-Z5
Rated capacity(Kg):	31000(Front Distance1900mm)(5-HIGH) 45000(Front Distance1900mm)(4-HIGH) 31000(Front Distance3850mm)(4-HIGH) 15000(Front Distance6350mm)(3-HIGH)
Maximum lift height(mm):	14850
Load centre distance(mm):
Maximum lift speed(mm/s):	380/240
Maximum lower speed(mm/s):	300/250
Travel speed(Km/h):	1st 4/4 2nd 9/9 3rd 16/16 4th 25/25
Gradeability (%):	30/15
Under clearance(mm):	400
Minimum turning radius(mm):	8200
Brake stopping distance (m):	<=7
Overall length(mm):	11350
Overall width(mm):	6042
Overall height(mm):	4600
Wheel base(mm):	6000
Tread(mm):	FRONT 3033 REVERSE 2750
Spreader:	SPREADER ELME 817
Service weight(Kg):	73000
Engine:	MODEL CUMMINS M11-C330 DISPLACEMENT 10800cc RATED POWER/SPEED 246 Kw /2100 rpm MAX.TORQUE/ SPEED 1458/1300 rpm
Tyre:	FRONT 4X18.00-25-40PR REAR 2X18.00-25-40PR
