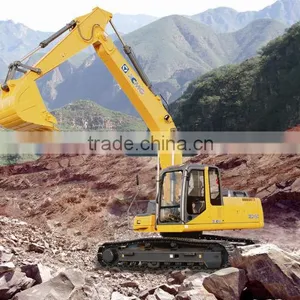

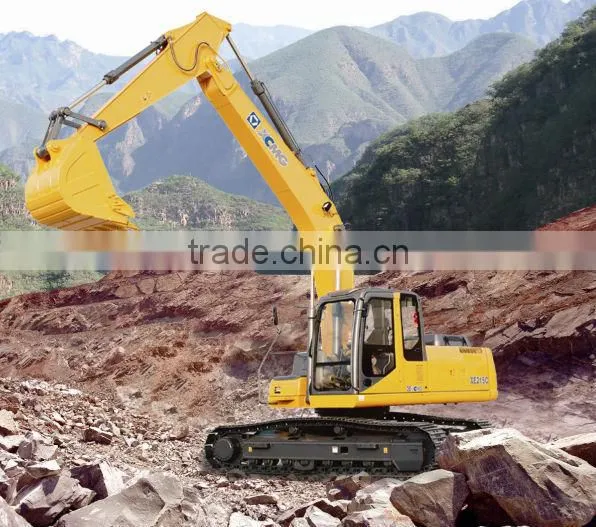

Help CenterHYDRAULIC EXCAVATOR XE215C
Related Products
XE215C
Operating weight kg 21450
Standard bucket capacity m³ 0.8~1.0
Engine Model / ISUZU BB-6BG1TRP
Direct injection / √
Four strokes / √
Water cooling / √
Turbo charged / √
Air to air intercooler / ×
No. of cylinders / 6
Rated power/speed kw/rpm 106.5/1950
Max. torque/speed N.m 551/1600
Displacement L 6.494
Travel speed km/h 5.5/3.3
Swing speed r/min 13.3
Max. gradeability / ≥35
Ground pressure kPa 45.5
Max.Bucket digging force kN 138
Max.arm crowd force kN 103
Max.traction force kN 184
Main pump / 2
Rate flow of main pump L/min 2×206
Max pressure of prime relief valve MPa 31.5/34.4
Max pressure of travel system MPa 34.3
Max pressure of swing system MPa 28
Max pressure of pilot system MPa 3.9
Fuel tank capacity L 360
Hydraulic tank capacity L 220
Engine lubrication L 25
Overall length mm 9525
Overall width mm 2990
Overall height mm 3000
Overall width of upperstructure mm 2710
Track length mm 4270
Overall width of undercarriage mm 2990
Crawer width mm 600
Crawer gauge mm 2390
Clearance under counter weight mm 1050
Ground clearance mm 470
Min.tail swing radius mm 2750
Max. digging height mm 9640
Max. dumping height mm 6800
Max. digging depth mm 6655
8inch horizonal digging depth mm 6470
Max. vertical wall digging depth mm 5695
Max. digging reach mm 9925
Min. swing radius mm 3530
Angle of arm deflection Degree
