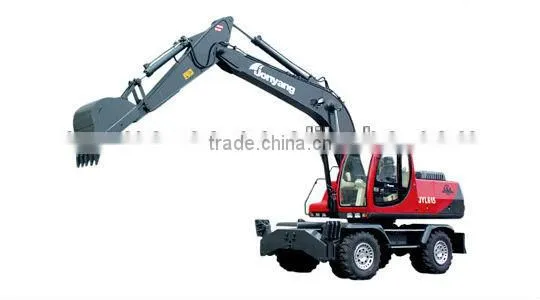

WHEEL EXCAVATOR JY615

WHEEL EXCAVATOR JY615 thumbnail-1
WHEEL EXCAVATOR JY615 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CANMAX
Model Number:
JY615
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CANMAX
Model Number JY615
Condition New
Moving Type Wheel Excavator
Operating Weight 15T
Bucket capacity 0.55M3
After-sales Service Provided Overseas service center available

Specifications

ORIGINAL ISUZU ENGINE; IMPORTED HYDRAULIC PARTS;
GOOD QUALITY WITH BEST PRICE;

Features:

Engine,hydraulic pump,valve,swivel pump and drive motor are from world renounced international manufacturers.
2,Dual hydraulic pump system cum with reverse flow control for efficient and economical usage of the engine output.
3,Latest technology in our electrical system for both operational control and preventive action.
4,Special preferential hydraulic system for drive , arms and rotation operations.
5,Ergonomically designed air-conditioned and wide vision cabin for comfort of the operator.
6,Superb reliability,safety and serviceability,put this machine on top of the construction project,road maintenance and pipe laying projects shopping list.

Specification:

Operating Weight(Tons)

15

Hydraulic Flow Rate(L/min)

2×157

Standard Bucket Capacity(m3)

0.55

Hydraulic Pressure(Mpa)

30

Range of Bucket Capacity(m3)



Travelling Speed(km/h)

20

Diesel Engine Manufacturer

Cummins

Grade Climbing Capacity(%)

40

Engine Model

4BT3.9

Slewing Speed(r/min)

11

Engine Power(KW)

93

Stick Digging Force(KN)

70

Hydraulic System



Bucket Digging Force(KN)

92



 Dimension:

A

Overall Length(mm)

8600

B

Overall Width(mm)

2510

C

Overall Height of Boom(mm)

3320

D

Overall Height of Cab(mm)

3040

E

Engine Cover Height(mm)

2515

F

Counterweight Clearance(mm)

1325

G

Ground Clearance(mm)

360

H

Upperstructuer Width(mm)

2500

I

Rear-End Lenghth/Swing Radius(mm)

2420

J

Wheelbase(mm)

2600

K

Qverall Width of Blade (mm)

2480

L

Qverall Height of Blade (mm)

540

M

Front Overhang(mm)

1080

N

Overall Width Outrigger Extended (mm)

3370

O

Rear Overhang(mm)

890

 Operating Scope:







Stick Length(mm)

2400

A

Maximum Cutting Height(mm)

8560

B

Maximum Dumping Height(mm)

6180

C

Maximum Digging Depth(mm)

5110

D

Maximum Reach(mm)

8390
