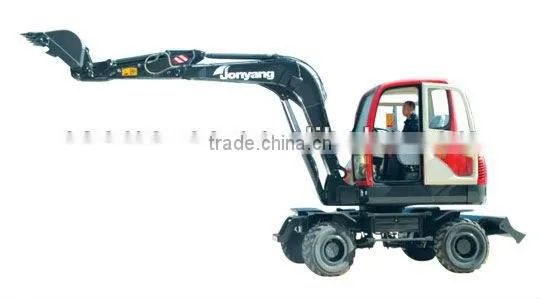

Help CenterWHEEL EXCAVATOR JY606
Related Products
Specifications
ORIGINAL ISUZU ENGINE; IMPORTED HYDRAULIC PARTS;GOOD QUALITY WITH BEST PRICE;
Features:
1, Engine 3 stage hydraulic system,valve,swivel pump and drive motor are from world renounced international manufacturers.
2,Euro Ⅲ engine.
3,International brand front and rear axles.
4,Ergonomically design air-conditioned and wide vision cabin for comfort of the operator.
Specification:
Operating Weight(Tons) |
6 |
Hydauli Flow Rate(L/min) |
119 |
Standard Bucket Capacity(m3) |
0.2 |
Hydraulic Pressure(Mpa) |
24.5 |
Range of Bucket Capacity(m3) |
Travelling Speed(km/h) |
28 |
|
Diesel Engine Manufacturer |
YAMMAR |
Grade Climbing Capacity(%) |
40 |
Engine Model |
4TNV94L |
Slewing Speed(r/min) |
10 |
Engine Power(KW) |
33.2 |
Stick Digging Force(KN) |
29.2 |
Hydraulic System |
Bucket Digging Force(KN) |
40.4 |
Dimension:
A |
Overall Length(mm) |
6130 |
B |
Overall Width(mm) |
2014 |
C |
Overall Height of Boom(mm) |
2557 |
D |
Overall Height of Cab(mm) |
2887 |
E |
Engine Cover Height(mm) |
2023 |
F |
Counterweight Clearance(mm) |
982 |
G |
Ground Clearance(mm) |
269 |
H |
Upperstructuer Width(mm) |
1785 |
I |
Rear-End Lenghth/Swing Radius(mm) |
1602 |
J |
Wheelbase(mm) |
2100 |
K |
Qverall Width of Blade (mm) |
1944 |
L |
Qverall Height of Blade (mm) |
398 |
Operating Scope:
|
Stick Length(mm) |
1600 |
A |
Maximum Cutting Height(mm) |
5326 |
B |
Maximum Dumping Height(mm) |
3592 |
C |
Maximum Digging Depth(mm) |
3411 |
D |
Maximum Reach(mm) |
6087 |
