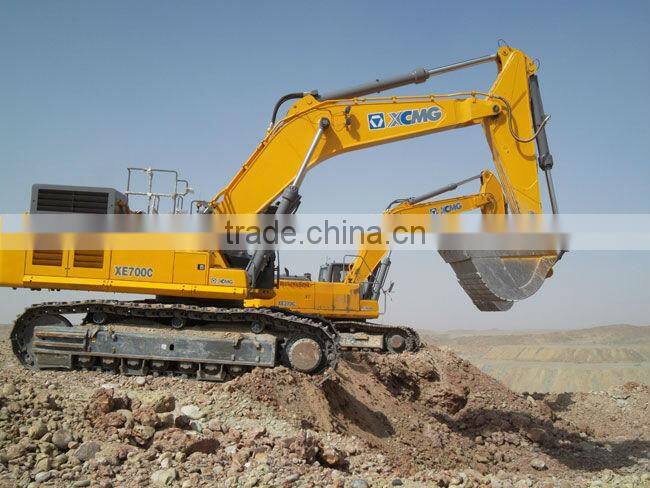

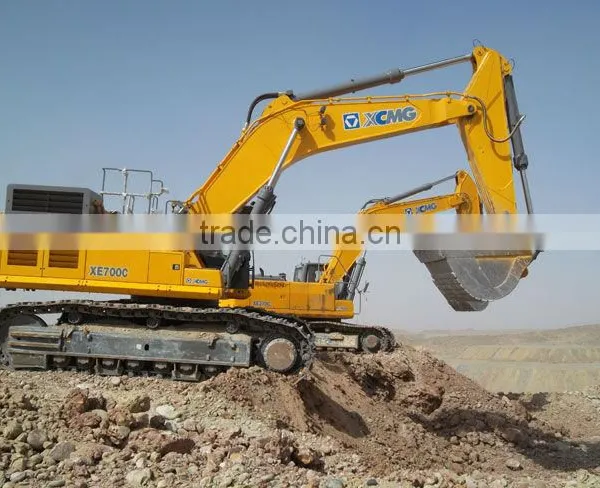

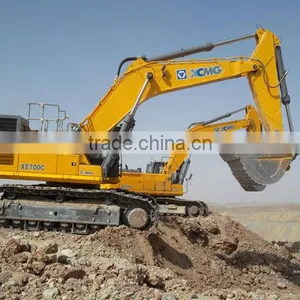

High Quality New 70ton Excavator
High quality new 70ton excavator
Model |
Unit |
XE700C |
|
Operating weight |
kg |
68000 |
|
Standard bucket capacity |
m³ |
3.1~3.5 |
|
Engine |
Engine Model |
/ |
Cummins QSX15 |
Direct injection |
/ |
√ |
|
Four strokes |
/ |
√ |
|
Water cooling |
/ |
√ |
|
Turbo charged |
/ |
√ |
|
Air to air intercooler |
/ |
√ |
|
No. of cylinders |
/ |
6 |
|
Rated power/speed |
kw/rpm |
336/1800 |
|
Max. torque/speed |
N.m |
2102/1400 |
|
Displacement |
L |
15 |
|
Main Performance |
Travel speed |
km/h |
4.2/3.0 |
Swing speed |
r/min |
7 |
|
Max. gradeability |
/ |
≥30 |
|
Ground pressure |
kPa |
99.1 |
|
Max.Bucket digging force |
kN |
370 |
|
Max.arm crowd force |
kN |
354 |
|
Max.traction force |
kN |
450 |
|
Rate flow of main pump |
L/min |
2×450 |
|
Max pressure of prime relief valve |
MPa |
31.4/34.3 |
|
Max pressure of travel system |
MPa |
34.3 |
|
Max pressure of swing system |
MPa |
25.5 |
|
Max pressure of pilot system |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
980 |
Hydraulic tank capacity |
L |
455 |
|
Engine lubrication |
L |
48 |
|
Dimensions |
Overall length |
mm |
11940 |
Overall width |
mm |
4280 |
|
Overall height |
mm |
4700 |
|
Overall width of upperstructure |
mm |
3260 |
|
Track length |
mm |
5955 |
|
Overall width of undercarriage |
mm |
4260 |
|
Crawer width |
mm |
650 |
|
Track length on ground |
mm |
4680 |
|
Crawer gauge |
mm |
2800/3350 |
|
Clearance under counter weight |
mm |
1552 |
|
Ground clearance |
mm |
853 |
|
Min.tail swing radius |
mm |
3900 |
|
Work Scope |
Max. digging height |
mm |
11350 |
Max. dumping height |
mm |
7370 |
|
Max. digging depth |
mm |
6900 |
|
8inch horizonal digging depth |
mm |
6750 |
|
Max. vertical wall digging depth |
mm |
5500 |
|
Max. digging reach |
mm |
11580 |
|
Min. swing radius |
mm |
4750 |
|
