Specifications
Excellent quality with competitive price; famous brand engine; World famous brand hydraulic system and other key parts.No. | Item | Unit | Date | ||||
|
|

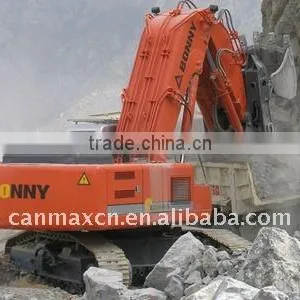

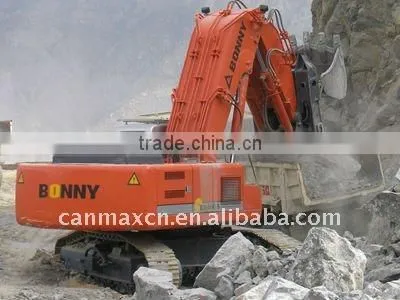

| Face shovel | ||||
1 | Machine weight | t | 46 | ||||
2 | Bucket capacity | Standard | m 3 | 2.5 | |||
|
| Range | m 3 | 2.0~2.5 | |||
3 | Diesel engine | Model |
| F8L413F | |||
|
| Power /Speed | kW/rpm | 140/2000 | |||
|
| Fuel tank Capacity | L | 420 | |||
4 | Hydraulic system | Max. pressure of main oil circuit | MPa | 27.40 | |||
|
| Max. flow of main oil circuit | L/min | 2×250 | |||
|
| Operating style |
| Pilot control | |||
|
| Hydraulic oil tank capacity | L | 650 | |||
5 | Performance | Swing speed | r/min | 7.1 | |||
|
| Travel speed | km/h | 2.46 | |||
|
| Max. pulling force | kN | 295 | |||
|
| Gradeability | % | 70 | |||
|
| Ground pressure | MPa | 0.083 | |||
|
| Circulating time of operation | s | 16~19 | |||
6 | Working date | Boom length | mm | 3800 | |||
|
| Stick length | mm | 2980 | |||
|
| Max. digging radius | mm | 8260 | |||
|
| Max. digging depth | mm | 2440 | |||
|
| Max. digging height | mm | 9240 | |||
|
| Max. unloading height | mm | 6630 | |||
|
| Max. digging force of stick | kN | 243 | |||
|
| Max. breakout force of bucket | kN | 230 | |||
