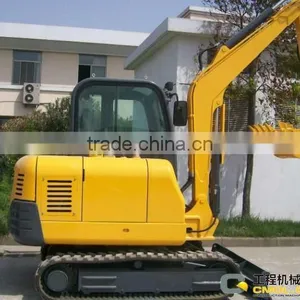

0.14m3 Crawler Excavator

Name: 0.14m3 Crawler Excavator
Brand: XCMG
SKU: 141324668
Availability: InStock

US$ 25,000 - 30,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE40

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE40

Condition New

Moving Type Crawler Excavator

Operating Weight 4050kg

Bucket capacity 0.14m3

Maximum Digging Height 5317mm

Maximum Digging Depth 3598mm

Machine Weight 4050kg

Max Digging Radius 5810mm

Specifications

Original Yanmar engine;
World famous brand hydraulic system and other key parts;
Excellent quality with competitive price.

Model			XE40
Bucket capacity		m3	0.14
Standard bucket width		mm	652
Operation weight		kg	4,050
Dimension(in transportation)	Overall length	mm	5,455
	Overall width	mm	1,650
	Overall height	mm	2,440
	Min. clearance	mm	350
engine	Model		4TNV88
	Total displacement	L	2.19
	Rated output power	KW/rpm	27.1/2200
Digging performance	Max. digging height	mm	5,317
	Max. dumping height	mm	3,697
	Max. digging depth	mm	3,598
	Max. vertical digging depth	mm	3,330
	Max. digging radius	mm	5,810
	Boom deflection angle	°
	Min. slew radius	mm	2,385
	Min. rear slew radius	mm	1,490
	Bucket digging force	kn	23.2
Track type			Rubber/steel
Track width		mm	300
Travel System	Track length	mm	2,198
	Wheel base	mm	1,721
	Track gauge	mm	1,335
	Travel speed (Gear I/II)	km/h	4.2/2.6
	Gradeability	%	58
Slew speed		rpm	13.5
Bulldozing plate	Bulldozing plate width	mm	1650
	Bulldozing plate height	mm	300
	Lifting distance	mm	267/365
Hydraulic pump type			Variable pump×1 +gear pump×1
Slew motor type			Piston hydraulic motor
Travel motor type			Piston hydraulic motor
Fuel tank capacity		L	65
Hydraulic oil tank capacity		L	70
