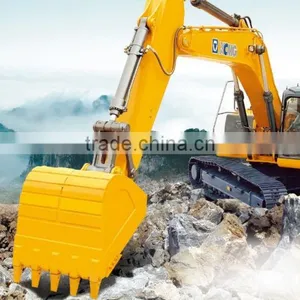

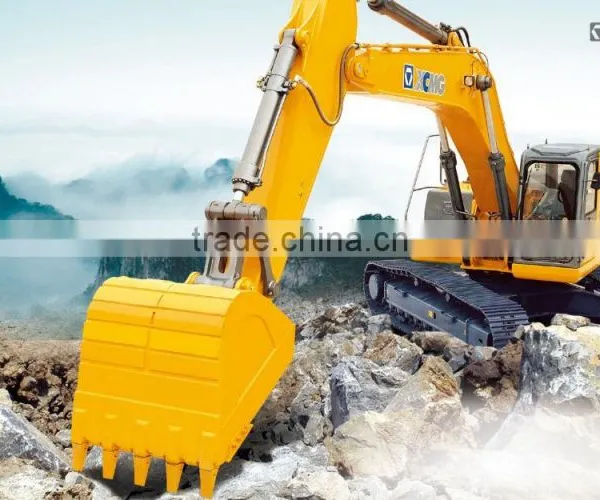

Help CenterHigh Quality New Used 1.4m3 Excavator
Related Products
1.4m3 Excavator
| Model | Unit | XE370C | ||
|---|---|---|---|---|
| Operating weight | kg | 36600 | ||
| Standard bucketcapacity | m3 | 1.6 | ||
| Engine | Engine Model | --- | ISUZU AA-6HK1XQP | |
| Type | Direct injection | --- | √ | |
| Four strokes | --- | √ | ||
| Water cooling | --- | √ | ||
| Turbo charged | --- | √ | ||
| Air to air intercooler | --- | √ | ||
| No. of cylinders | --- | 6 | ||
| Rated power/speed | kW/ r/min | 184/2000 | ||
| Max. torque/speed | N.m | 872.8/1700 | ||
| Displacement | L | 7.79 | ||
| Main data | Travel speed | km/h | 5.4/3.2 | |
| Max. gradeability | % | 58 | ||
| Swing speed | r/min | 10.1 | ||
| Ground pressure | kPa | 67.8 | ||
| Bucket digging force at power max. | kN | 242 | ||
| Arm crowd force at power max. | kN | 174 | ||
| Hydraulic | Main pump | -- | 2Plunger pump | |
| Rate flow | L/min | 2x280 | ||
| Max pressure of system | MPa | 31.5/34.3 | ||
| Max pressure of travel equipment | MPa | -- | ||
| Max pressure of swing equipment | MPa | -- | ||
| Pilot press setting | MPa | 3.9 | ||
| Oil & Fuel refilling | Fuel tank capacity | L | 600 | |
| Hydraulic tank capacity | L | 320 | ||
| Engine lubrication | L | 28 | ||
| Dimensions | Overall length | mm | 11105 | |
| Overall width | mm | 3190 | ||
| Overall height | mm | 3300 | ||
| Overall width of upperstructure | mm | 2960 | ||
| Track length | mm | 5070 | ||
| Overall width of undercarriage | mm | 3190 | ||
| Standard track shoe width | mm | 600 | ||
| Track length on ground | mm | 4040 | ||
| Track gauge | mm | 2590 | ||
| Clearance under counter weight | mm | 1197 | ||
| Ground clearance | mm | 500 | ||
| Tail swing radius | mm | 3450 | ||
| Working Range | Max. digging height | mm | 10445 | |
| Max. dumping height | mm | 7287 | ||
| Max. digging depth | mm | 7423 | ||
| Max. digging depth of cut for | mm | 7266 | ||
| Max. vertical wall digging depth | mm | 6776 | ||
| Max. digging reach | mm | 11114 | ||
| Max. digging reach | mm | 10907 | ||
| Max. turning radius | mm | 4376 | ||
Shipping
Certifications Of Product
Other models for your choose
Other hot selling products on sale
Shanghai CANMAX Electronic & Mechanical Equipment Co., Ltd is officially approved by Shanghai governmental foreign economic relations and trade commission, and we professionally operate imports, exports and sales engineering machinery equipment, etc.
Our company is located in Shanghai which is a financial, trade and shipping center in china. All these give our company an obvious superiority in trade, transportation and material flow.
CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " think what customer cares, do what client wants", devote ourselves to what customer needs, and provide products and service with high performance and good price.
After years of market expansion and win-win cooperation, we gain a lot of marketing experience in Engineering Machinery. And we now enjoy customers trust and a good reputation. We have already exported our products to more than 30 countries and regions, including: USA, MEXICO, AUSTRALIA, NEW ZELAND, IRAN, YEMEN, RUSSIA, MOST AREAS OF AFRICA, CENTRAL AISA, SOUTHEAST ASIA and so on. We now still keep a steady incremental development trend.
Our products refer to construction, road construction, ports, and petroleum pipeline and other mechanical equipments, totally 11 general classes, up to thousands of products.
Why choose us?
Quality:we make quality control for each unit separately ,shipping department check each goods before packing,totally avoid manufacturing defects,we care specially about cargo details and quality.
Competitive Prices : Our price is absolutely synchronization with market, the price is very reasonable.
Service:Our team always take the customer as the center, as much as possible to
help you find you want products, welcome your consultation.
CONTACT US for more detailed information
