Specifications

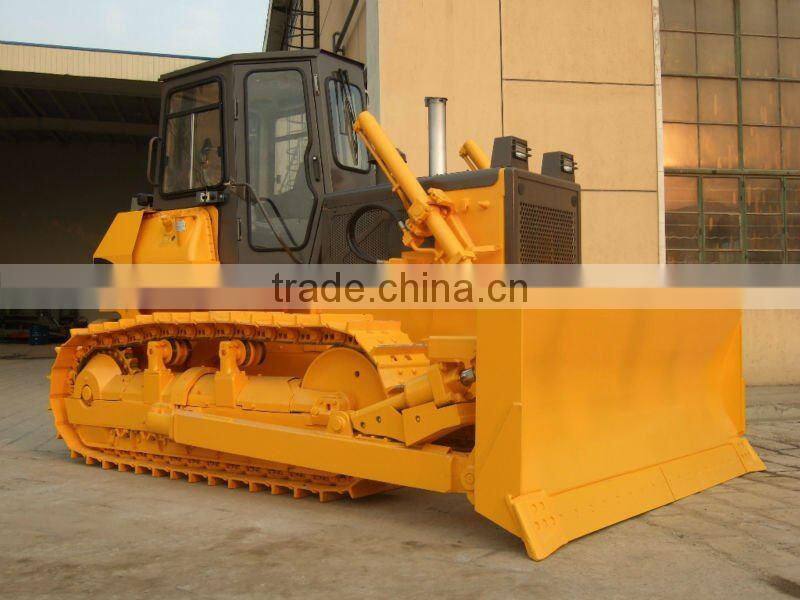

135 HP bulldozer1.Engine.Shanghai Diesel Engine D6114ZG4B
2.Weight.14000kg
3.Rated power,99.2kW
Technological Advantages of PD135Y Bulldozer
1.Power system makes use of Shanghai diesel engine D6114ZG4B, with low oil consumption.
2. With modular connection between gear box and the torque converter with motor housing, it is convenient to assemble.
3.The special torsional vibration damper reduces the vibration of driving medium and lowers energy consumption.
4. The rear floorboard and support adopt one-piece welding, which is firm and beautiful.
5.The cab is equipped with high grade seat, which is comfortable for the driver to operate the bulldozer.
6. With beautiful and novel design, the hexaherdral cab has a broad vision
for final drive, with large carrying capacity, stable transmission and long service life.
NO | DESCRIPTION | UNIT | SPECIFICATON | ||
1 | MODEL | / | PD135Y-1 | ||
2 | Engine | Mode | / | Dongfeng 6114ZG4B | |
|
| Type | / | Water cooled, inline, turbocharged, | |
|
| Number of cylinder-bore*stroke | mm | 6-114*135 | |
|
| Rated horsepower/rpm | kW/r/min | 99.2/1900 | |
|
| Min. fuel consumption | g/kw.h | 228g/kw.h | |
3 | Start method | Type | / | Electric starting motor | |
|
| Starting motor | V/kW | 24/7.5 | |
|
| Voltage/power |
|
| |
|
| Battery | / | 24V(12V*2)-195Ah | |
4 | Lubrication system | Lubrication type | / | Forced lubrication. | |
|
| Cooling type | / | Water cooling | |
5 | Fuel system | Specification | / | Light diesel | |
6 | Cooling system | Water pump | / | Closed system | |
7 | Electric generator | V/A | 24/35 | ||
8 | Air filter type | / | KLH-14u | ||
9 | Transmission system | transmission | / | Planetary gear, multiple disc clutch, 3 forward and 3 reverse speeds. | |
|
| Bevel gear | / | Helical bevel gear, splash lubricated | |
|
| Steering clutch | / | Wet, multiple disc, spring loaded, hydraulic operated, mechanical separating,linking steering brake | |
|
| Steering brake | / | Dry, band brake, foot-actuated. | |
|
| Final drive | / | Spur gear, double reduction, splash lubricated. | |
10 | Travel Speed | Forward | 1st | km/h | 0-3.2 |
|
|
| 2nd | km/h | 0-5.9 |
|
|
| 3rd | km/h | 0-9.8 |
|
| reverse | 1st | km/h | 0-3.9 |
|
|
| 2nd | km/h | 0-7.1 |
|
|
| 3rd | km/h | 0-11.9 |
