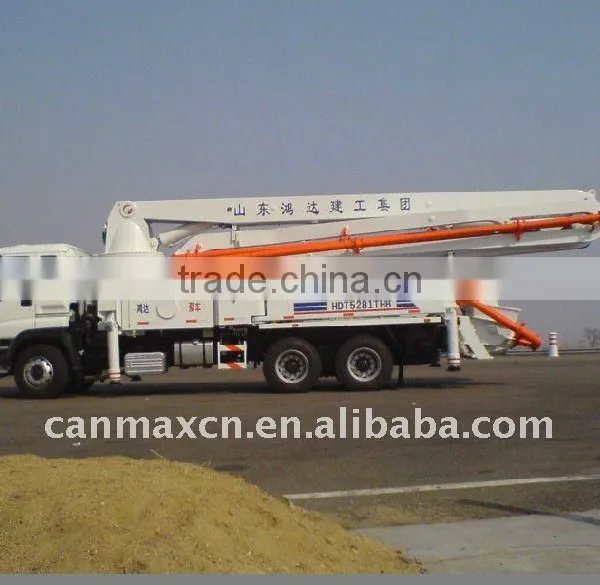

CANMAX truck mounted concrete pump HDT5420THB-52/5/HDT5420THB-52/5

Name: CANMAX truck mounted concrete pump HDT5420THB-52/5/HDT5420THB-52/5
Brand: CANMAX
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	CANMAX
Model Number:	HDT5420THB-52/5/HDT5420THB-52/5

1 CANMAX truck mounted concrete pump HDT5420THB-52/5/HDT5420THB-52/5
2 Max. operation Height 51.8m

CANMAX truck mounted concrete pump HDT5420THB-52/5/HDT5420THB-52/5

Truck mounted concrete pump 52m		Unit	Parameters
Truck mounted concrete pump 52m		Unit	HDT5420THB-52/5/HDT5420THB-52/5
Main technical parameters in working condition	Theoretical Productivity	m3/h	125
	Pumping Capacity Index	MPa.* m3/h	586
	Max. Concrete Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1400
	Model of Distributing Valve		S pipe valve
	Max. operation Radius	m	47.8
	Max. operation Height	m	51.8
	Max. operation Depth	m	39.8
	open height of aggregate carrying pipe	mm	9400
	Distance between Front Landing Legs	mm	10295
	Distance between Rear Landing Legs	mm	10650
	Distance between Front and Rear Landing Legs	mm	10310
	Diameter of Delivery Pipe	mm	125
	Length of rear hose pipe	m	3
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		5
	Rotary Angle of Each Boom Section		90/180/ 180/180/270°
	Close-control Distance	m	33
	Remote-control Distance	m	200
Main technical parameters in driving condition	Max. Traveling Speed	km/h	80
	Min. Turning Radius	mm	12500
	Brake Distance	m	10
	Approach Angle		16°
	Departure Angle		11°
	Chassis Model		ZZ5437S5067C
	Chassis Model
	Wheel Base between the First and the Second Axle	mm	1800
	Wheel Base between the Second and the Third Axle	mm	5000
	Wheel Base between the Third and the Fourth Axle	mm	1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Max. Engine Power	kw	259(2100r/min)/275 (2200r/min)
	Max Engine Torque	N.m	1460(1100r/min)/1500 (1100-1600r/min)
	Overall Dimension (length×width×height)	mm	1399025004000
	Full-load Total Weight	kg	42000
