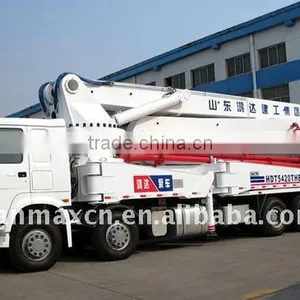

CANMAX Truck Mounted Concrete Pump HDT5380THB-45/5HDT5401THB-45/5

Name: CANMAX Truck Mounted Concrete Pump HDT5380THB-45/5HDT5401THB-45/5
Brand: CANMAX
SKU: 141324446
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

CANMAX

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name CANMAX

Model Number HDT5380THB-45/5HDT5401THB-45/5

Specifications

1 CANMAX truck mounted concrete pump HDT5380THB-45/5HDT5401THB-45/5
2 Max. operation Height 44.7m

CANMAX truck mounted concrete pump HDT5380THB-45/5HDT5401THB-45/5

Truck mounted concrete pump 45m		Unit	Parameters
Truck mounted concrete pump 45m		Unit	HDT5380THB-45/5HDT5401THB-45/5
Main technical parameters in working condition	Theoretical Productivity	m3/h	125
	Pumping Capacity Index	MPa.* m3/h	586
	Max. Concrete Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1400
	Model of Distributing Valve		S pipe valve
	Max. operation Radius	m	40.7
	Max. operation Height	m	44.7
	Max. operation Depth	m	31.3
	open height of aggregate carrying pipe	mm	8495
	Distance between Front Landing Legs	mm	9550
	Distance between Rear Landing Legs	mm	9550
	Distance between Front and Rear Landing Legs	mm	9190
	Diameter of Delivery Pipe	mm	125
	Length of rear hose pipe	m	3
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		5
	Rotary Angle of Each Boom Section		91/180/ 180/180/270°
	Close-control Distance	m	33
	Remote-control Distance	m	200
Main technical parameters in driving condition	Max. Traveling Speed	km/h	85/80
	Min. Turning Radius	mm	11900/12100
	Brake Distance	m	10
	Approach Angle		16°
	Departure Angle		11°
	Chassis Model		ZZ5337S4667C
	Chassis Model		CYH51Y
	Wheel Base between the First and the Second Axle	mm	1850/1800
	Wheel Base between the Second and the Third Axle	mm	4605/4600
	Wheel Base between the Third and the Fourth Axle	mm	1310/1350
	Front Tread	mm	2065/2022
	Rear Tread	mm	1850/1830
	Max. Engine Power	kw	287(1800r/min)/275 (2200r/min)
	Max Engine Torque	N.m	1863(1100r/min)/1500 (1100-1600r/min)
	Overall Dimension (length×width×height)	mm	1310025003900/1330025004000
	Full-load Total Weight	kg	38000/40000
