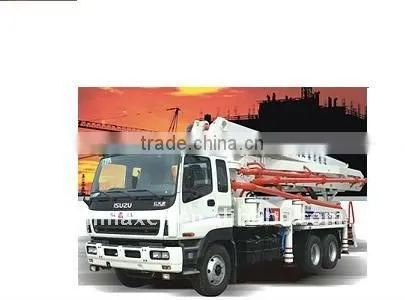

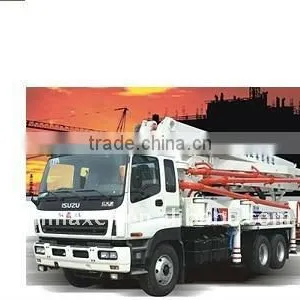

CANMAX Truck Mounted Concrete Pump HDT5340THB-42/4/HDT5350THB-42/4

Name: CANMAX Truck Mounted Concrete Pump HDT5340THB-42/4/HDT5350THB-42/4
Brand: CANMAX
SKU: 141324448
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

CANMAX

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name CANMAX

Model Number HDT5340THB-42/4/HDT5350THB-42/4

Specifications

1 CANMAX Truck mounted concrete pump HDT5340THB-42/4/HDT5350THB-42/4
2 Max. operation Height 41.8m

CANMAX Truck mounted concrete pump HDT5340THB-42/4/HDT5350THB-42/4

Truck mounted concrete pump 42m		Unit	Parameters
Truck mounted concrete pump 42m		Unit	HDT5340THB-42/4/HDT5350THB-42/4
Main technical parameters in working condition	Theoretical Productivity	m3/h	125
	Pumping Capacity Index	MPa.* m3/h	586
	Max. Concrete Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1400
	Model of Distributing Valve		S pipe valve
	Max. operation Radius	m	38
	Max. operation Height	m	41.8
	Max. operation Depth	m	29
	open height of aggregate carrying pipe	mm	8600
	Distance between Front Landing Legs	mm	8820
	Distance between Rear Landing Legs	mm	8500
	Distance between Front and Rear Landing Legs	mm	8490
	Diameter of Delivery Pipe	mm	125
	Length of rear hose pipe	m	3
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		4
	Rotary Angle of Each Boom Section		90/180/ 180/240°
	Close-control Distance	m	33
	Remote-control Distance	m	200
Main technical parameters in driving condition	Max. Traveling Speed	km/h	85
	Min. Turning Radius	mm	11900/12100
	Brake Distance	m	10
	Approach Angle		16°
	Departure Angle		11°
	Chassis Model		ZZ5437S5067C
	Chassis Model
	Wheel Base between the First and the Second Axle	mm	1850/1800
	Wheel Base between the Second and the Third Axle	mm	4605/4600
	Wheel Base between the Third and the Fourth Axle	mm	1310/1350
	Front Tread	mm	2065/2022
	Rear Tread	mm	1850/1830
	Max. Engine Power	kw	287(1800r/min)/275 (2200r/min)
	Max Engine Torque	N.m	1836(1100r/min)/1500 (1100-1600r/min)
	Overall Dimension (length×width×height)	mm	1380024903995/1395024903960
	Full-load Total Weight	kg	34500/35000
