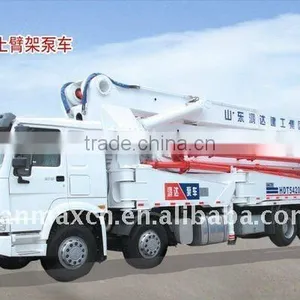

CANMAX Truck Mounted Concrete Pump HDT5281THB-39/4/HDT5291THB-39/4

Name: CANMAX Truck Mounted Concrete Pump HDT5281THB-39/4/HDT5291THB-39/4
Brand: CANMAX
SKU: 141324450
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

CANMAX

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name CANMAX

Model Number HDT5281THB-39/4/HDT5291THB-39/4

Specifications

1 CANMAX truck mounted concrete pump HDT5281THB-39/4/HDT5291THB-39/4
2 Max. operation Height 38.7m

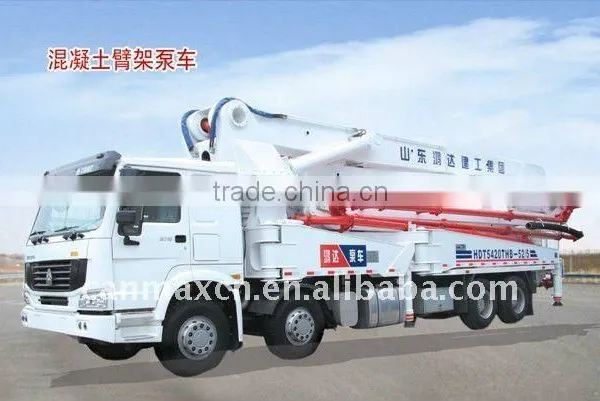

CANMAX truck mounted concrete pump HDT5281THB-39/4/HDT5291THB-39/4

Truck mounted concrete pump 39m		Unit	Parameters
Truck mounted concrete pump 39m		Unit	HDT5281THB-39/4/HDT5291THB-39/4
Main technical parameters in working condition	Theoretical Productivity	m3/h	125
	Pumping Capacity Index	MPa.* m3/h	586
	Max. Concrete Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1370
	Model of Distributing Valve		S pipe valve
	Max. operation Radius	m	34.7
	Max. operation Height	m	38.7
	Max. operation Depth	m	27
	open height of aggregate carrying pipe	mm	8830
	Distance between Front Landing Legs	mm	6800
	Distance between Rear Landing Legs	mm	7000
	Distance between Front and Rear Landing Legs	mm	7432
	Diameter of Delivery Pipe	mm	125
	Length of rear hose pipe	m	4
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		4
	Rotary Angle of Each Boom Section		91/180/ 180/180/270°
	Close-control Distance	m	33
	Remote-control Distance	m	200
Main technical parameters in driving condition	Max. Traveling Speed	km/h	85/90
	Min. Turning Radius	mm	8800
	Brake Distance	m	7
	Approach Angle		16°
	Departure Angle		11°
	Chassis Model		ZZ5307N4647C
	Chassis Model
	Wheel Base between the First and the Second Axle	mm	4595/4600
	Wheel Base between the Second and the Third Axle	mm	1310/1350
	Wheel Base between the Third and the Fourth Axle	mm
	Front Tread	mm	2065/2022
	Rear Tread	mm	1850/1830
	Max. Engine Power	kw	265(1800r/min)247 (2200r/min)
	Max Engine Torque	N.m	1422(1100r/min)/1350 (1100-1600r/min)
	Overall Dimension (length×width×height)	mm	1250024903950
	Full-load Total Weight	kg	28000/29500
