Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > CANMAX Tralier-mounted Concrete Pump SBS15-05-22
CANMAX Tralier-mounted Concrete Pump SBS15-05-22
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CANMAX
Model Number:
SBS15-05-22
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CANMAX Tralier-mounted Concrete Pump SBS20-08-30NegotiableMOQ: 1 Set -
CANMAX Truck Mounted Cocrete Pump HDT5280THB 37/4NegotiableMOQ: 1 Set
-
CANMAX Truck Mounted Concrete Pump HDT5420THB-52/5/HDT5420THB-52/5NegotiableMOQ: 1 Set
-
Zoomlion 48m Concrete PumpUS$ 706,000 - 726,000MOQ: 1 Set
-
CANMAX Truck Mounted Concrete Pump HDT5380THB-45/5HDT5401THB-45/5NegotiableMOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
CANMAX
Model Number
SBS15-05-22
Specifications
1 CANMAX tralier-mounted concrete pump SBS15-05-222 Mortar Trailer Pump

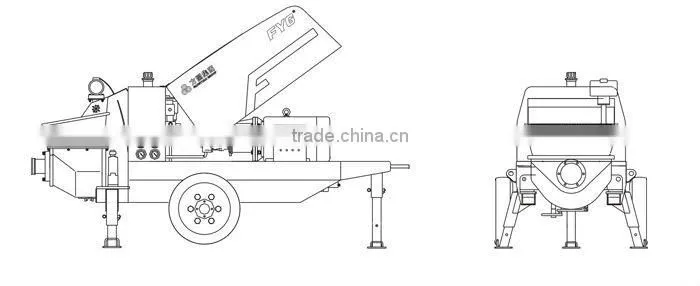

CANMAX tralier-mounted concrete pump SBS15-05-22
Model |
|
SBS15-05-22 |
|
Theoretical conveying volume |
m3/h |
15 |
|
Max. conveying pressure |
MPa |
5.5 |
|
Distribution valve type |
|
S pipe valve |
|
Rated power |
kW |
22 |
|
Concrete conveying cylinder |
Diameter |
mm |
140 |
Stroke |
mm |
800 |
|
Internal diameter of conveying pipe |
mm |
φ80 |
|
Aggregate size |
mm |
≤20 |
|
Dimension L×W×H |
mm |
3340×1320×1480 |
|
Overall weight |
kg |
1580 |
|
