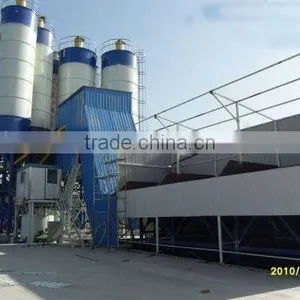

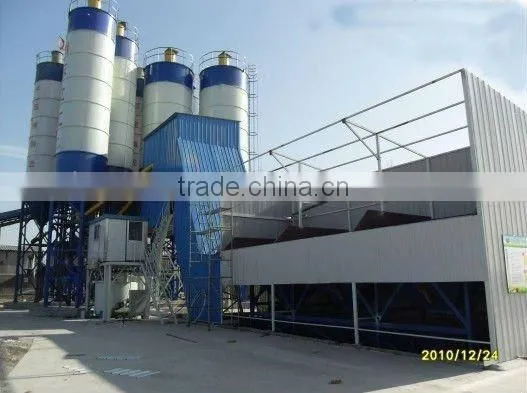

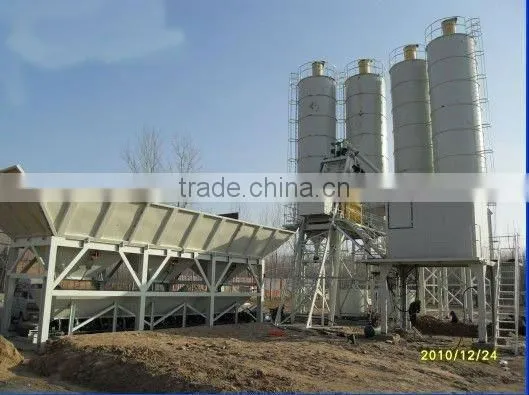

HZS75 Concrete Batching Plant
US$ 100,000 - 110,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
CANMAX
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HBT85-15-168S Trailer-mounted Concrete PumpUS$ 60,000 - 67,000MOQ: 1 Unit -
HBT80-13-132S Trailer-mounted Concrete PumpUS$ 58,000 - 65,000MOQ: 1 Unit
-
HBT80-13-132S Trailer-mounted Concrete PumpNegotiableMOQ: 1 Unit
-
Cheap Concrete Truck Mixer 10m3 Agitating LorryUS$ 80,000 - 90,000MOQ: 1 Set
-
10m3 Concrete Truck Mixer (Hino)US$ 65,000 - 75,000MOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
CANMAX
Model Number
HZS75
Specifications
1.Twin-shaft compulsory mixer2.Fast and even mixing
3.High efficiency of transmission
4.Compact structure
| Model | HZS75 | |
| Model of mixer | JS1500b | |
| Productivity m³/h | 75 | |
| Capability of discharge m³ | 1.5 | |
| Power of motor kW | 30×2 | |
| Aggregate thickness mm | 40/60 | |
| Weighing system | Form of sand and gravel | Type of single or accumulative |
| Scope of measuring kg | 50~2000 | |
| Precision of measuring | ±2% | |
| Form of power material | Type of single or accumulative | |
| Scope of measuring kg | 20-750/5-200 | |
| Precision of measuring | ±1% | |
| Form of water and additive | Type of single or accumulative | |
| Scope of measuring kg | 1-500/1-40 |
|
| Precision of measuring | ±1% | |
| Material transportation system | Width of flat belt conveyor mm | 800 |
| Power of motor kw | 18.5 | |
| Width of inclined belt conveyor mm | -- | |
| Power of motor kw | -- | |
| Cement screw conveyor mm | 273×2 | |
| Productivity t/h | 80 | |
| Power of motor kw | 11 | |
| Coal ash screw conveyor mm | 219 | |
| Productivity t/h | 55 | |
| Power of motor kW | 11 | |
| Sophisticate material screw conveyor mm | 219 | |
| Productivity t/h | 55 | |
| Power of motor kW | 11 | |
| Model of lift machine | R143DV180L4 | |
| Power of motor kW | 22 | |
| Model of water supply system of water pump | IS65-50-160 | |
| Power of motor kW | 5.5 | |
| Model of additive supply system of pump | GSH40-125 | |
| Power of motor kW | 1.1×2 | |
| Model of air circuit system of air compressor | W-1.0/7-S | |
| Power of motor kW | 7.5 | |
| The total capability of sand storehouse m³ | 18×3 | |
| Cement silo (t) | 100×2 | |
| Electric control system | Manual,automatic 200kinds of concrete match ratio | |
| The total power of installation kW | 170 | |
| The quality of the complete machine (t) | ~60 | |
| Over dimensions mm | 10650×4600×10235 | |
